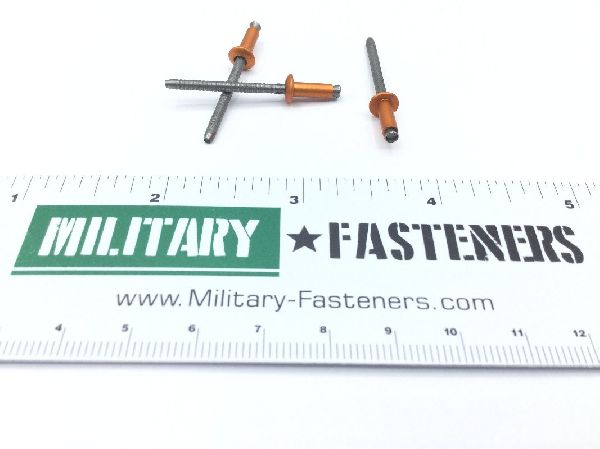

MS20604B4W4 Blind Rivet

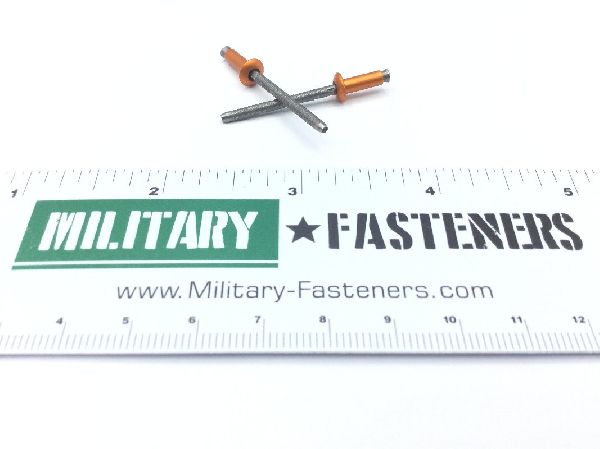

MS20604B4W4 Blind Rivet (2)

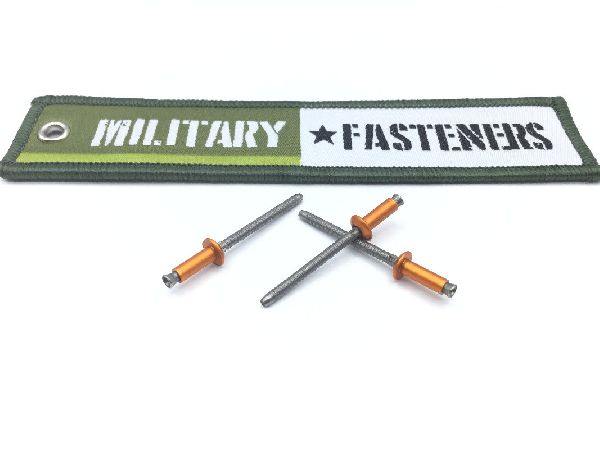

MS20604B4W4 Blind Rivet (3)

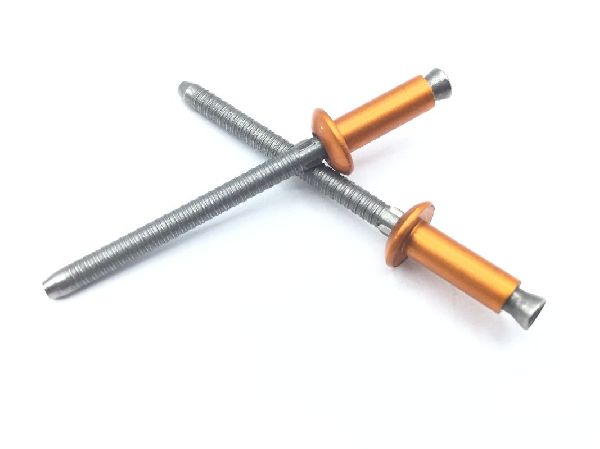

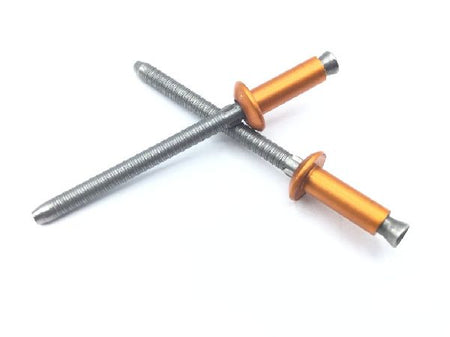

MS20604B4W4 Blind Rivet (4)

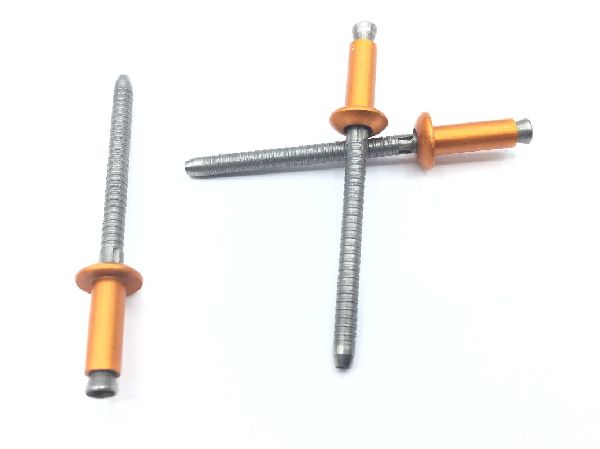

MS20604B4W4 Blind Rivet (5)

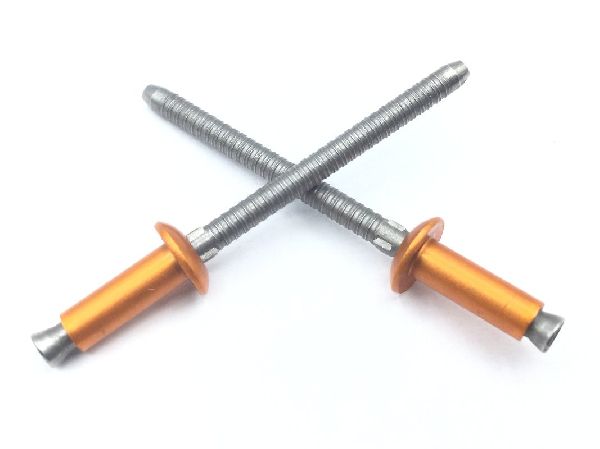

MS20604B4W4 Blind Rivet (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS20604B4W4 Blind Rivet

NSN: 5320-00-059-7791
Product Series: MS
ECCN: EAR99
Schedule: 7616.10.3000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Head Style

Universal

Material

Aluminum alloy 5056

Surface Treatment

Mil-a-8625 military specification 1st treatment response or mil-c-5541 military specification 2nd treatment response

Expansion Device: Serrated stem-type w
Fastener Length: 0.357 inches
Grip Length: Between 0.188 inches and 0.250 inches
Head Height: Between 0.054 inches and 0.064 inches
Head Major Diameter: Between 0.238 inches and 0.262 inches
Material Specification: Mil-w-7986 military specification single material response
Shank Diameter: Between 0.124 inches and 0.128 inches
Shank Style: Pull through hollow shank
Shear Strength: 125 single pounds per square inch
