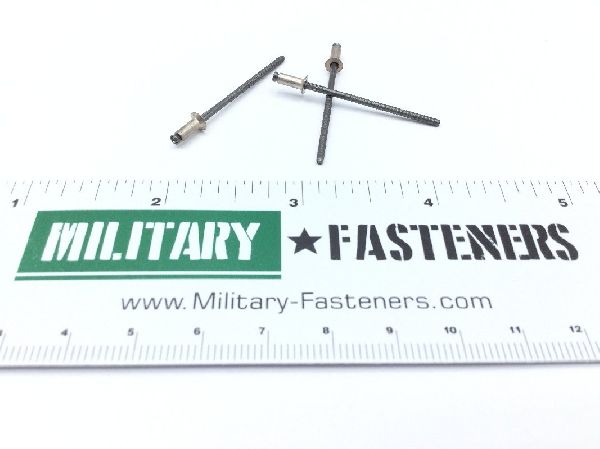

MS20605ML3W3 Blind Rivet

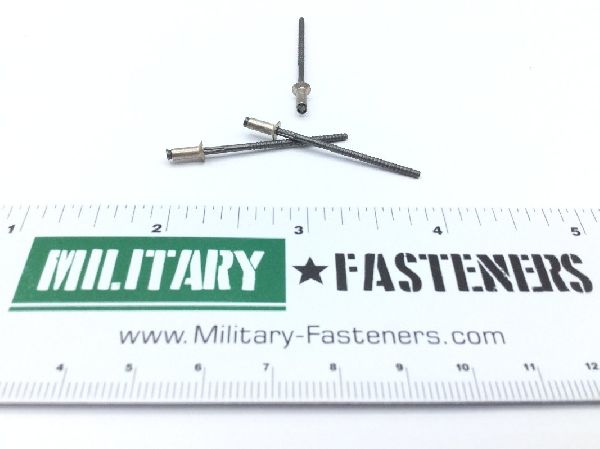

MS20605ML3W3 Blind Rivet (2)

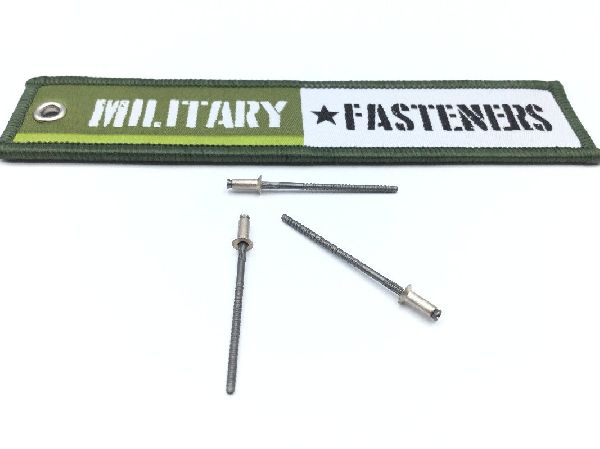

MS20605ML3W3 Blind Rivet (3)

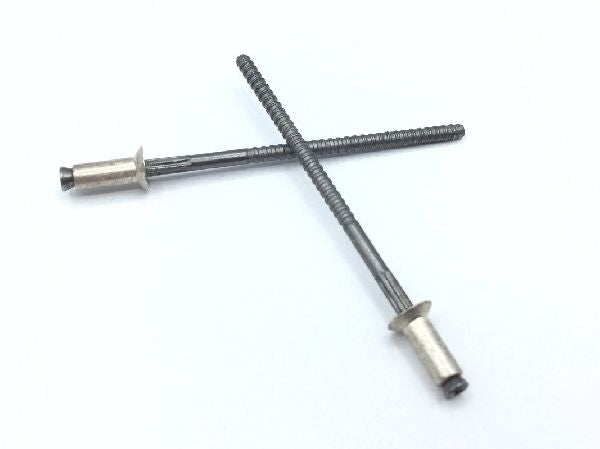

MS20605ML3W3 Blind Rivet (4)
MS20605ML3W3 Blind Rivet (5)
MS20605ML3W3 Blind Rivet (6)

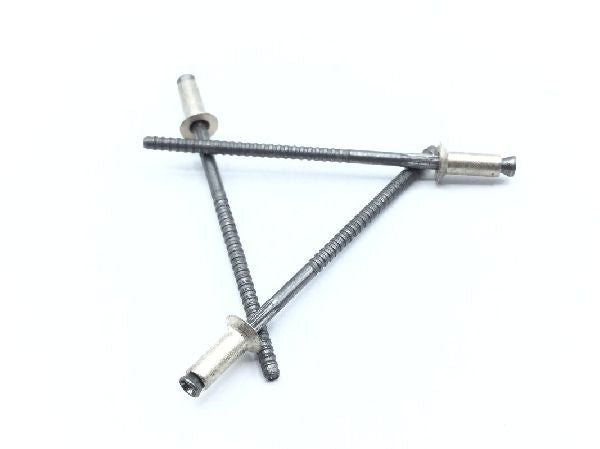

MS20605ML3W3 Blind Rivet (7)
MS20605ML3W3 Blind Rivet
MS20605ML3W3 Blind Rivet (2)
MS20605ML3W3 Blind Rivet (3)
MS20605ML3W3 Blind Rivet (4)
MS20605ML3W3 Blind Rivet (5)
MS20605ML3W3 Blind Rivet (6)
MS20605ML3W3 Blind Rivet (7)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS20605ML3W3 Blind Rivet

Product Series
MS
ECCN
EAR99
Schedule
7616.10.3000
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Head Style
Flush (flat) countersunk (included angle - less than 135 degrees w or w/o chamfer)
Material
Nickel
Surface Treatment
Qq-s-365 federal specification single treatment response stem
Countersink Angle
100.0 degrees
Expansion Device
Serrated stem-type w
Fastener Length
0.265 inches
Grip Length
Between 0.126 inches and 0.187 inches
Head Major Diameter
Between 0.179 inches and 0.183 inches
Material Specification
Qq-n-281 cl a federal specification single material response sleeve
Shank Diameter
Between 0.092 inches and 0.097 inches
Shank Style
Self-plugging mechanically locked stem
Specification Data
96906-ms20605 government standard
