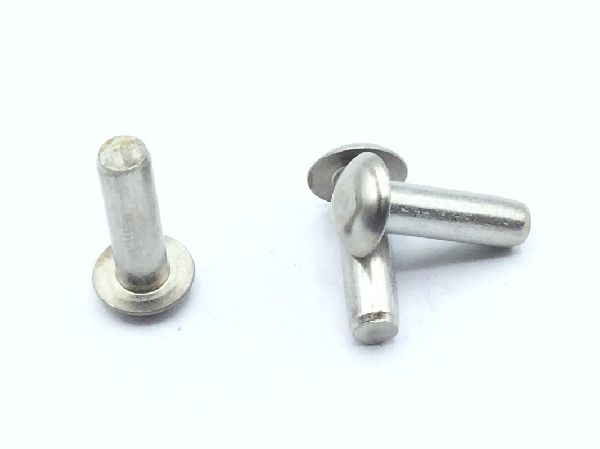

MS20613-4C7 Solid Rivet

Product Series: MS
ECCN: EAR99
Schedule: 7318.23.0000

Unit of Measure: LBS

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Universal

Material

Steel comp 302

Fastener Length: Between 0.428 inches and 0.448 inches
Grip Length: Between 0.240 inches and 0.260 inches
Head Height: Between 0.054 inches and 0.064 inches
Head Major Diameter: Between 0.238 inches and 0.262 inches
Heat Treatment: Annealed
Material Specification: Cond a federal specification single material response qq-w-423
Shank Diameter: Between 0.124 inches and 0.128 inches
Shank Style: Straight
Shear Strength: 65000 single pounds per square inch
