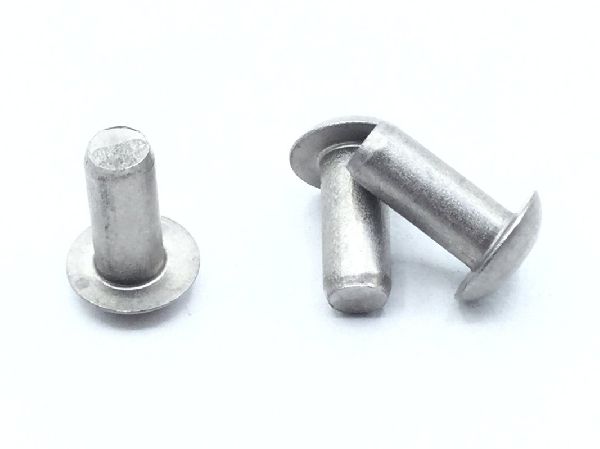

MS20615-5M6 Solid Rivet

Product Series: MS
ECCN: EAR99
Schedule: 7616.10.3000

Unit of Measure: LBS

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Universal

Material

Nickel alloy 400

Fastener Length: Between 0.365 inches and 0.385 inches
Grip Length: Between 0.131 inches and 0.151 inches
Head Height: Between 0.067 inches and 0.077 inches
Head Major Diameter: Between 0.296 inches and 0.328 inches
Material Specification: Qq-n-281 federal specification single material response
Shank Diameter: Between 0.155 inches and 0.160 inches
Shank Style: Straight
Shear Strength: 49000 single pounds per square inch
