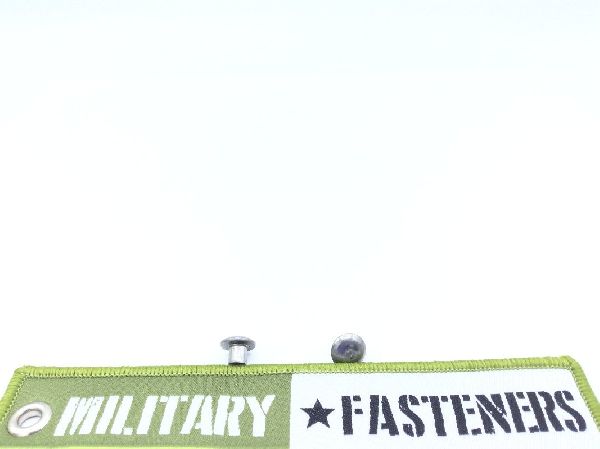

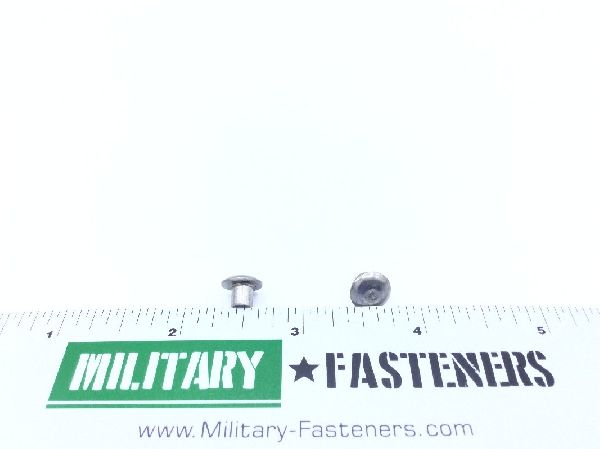

MS20615-6M3 Solid Rivet

Product Series: MS
ECCN: EAR99
Schedule: 7318.23.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Universal

Material

Nickel alloy 400

Criticality Code Justification: Agav
End Application: F-15
Fastener Length: Between 0.1775 inches and 0.1975 inches
Head Height: Between 0.080 inches and 0.090 inches
Head Major Diameter: Between 0.356 inches and 0.394 inches
Material Specification: Qq-n-281 federal specification single material response
Shank Diameter: Between 0.186 inches and 0.191 inches
Shank Style: Straight
Shear Strength: 49000 single pounds per square inch
