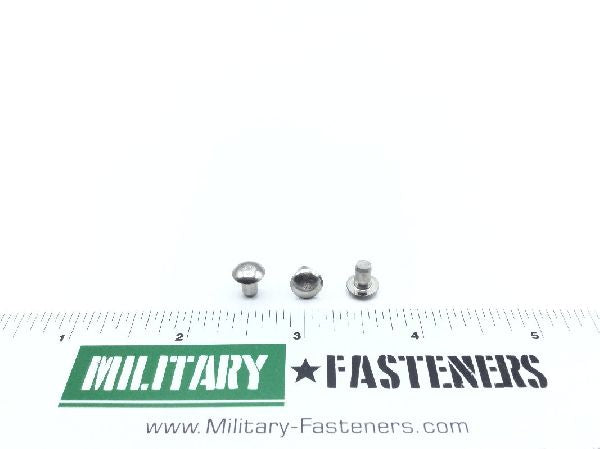

MS20615M5-4 Solid Rivet

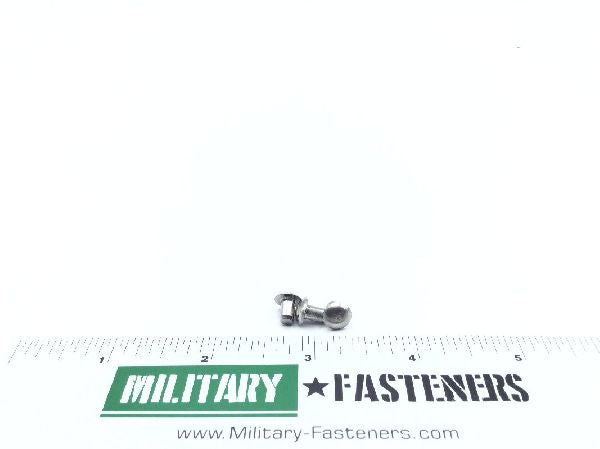

MS20615M5-4 Solid Rivet (2)

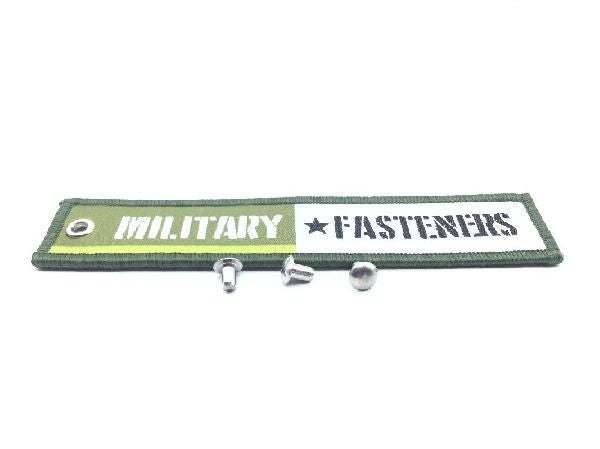

MS20615M5-4 Solid Rivet (3)

MS20615M5-4 Solid Rivet (4)

MS20615M5-4 Solid Rivet (5)

MS20615M5-4 Solid Rivet (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS20615M5-4 Solid Rivet

Product Series: MS
ECCN: EAR99
Schedule: 7616.10.3000

Price per Unit $87.24

Units per Pack 1

Price per Pack $87.24

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: LBS

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $87.24

Add item to quote

Head Style

Universal

Material

Nickel alloy 400

Fastener Length: Between 0.240 inches and 0.260 inches
Grip Length: Between 0.006 inches and 0.026 inches
Head Height: Between 0.067 inches and 0.077 inches
Head Major Diameter: Between 0.296 inches and 0.328 inches
Material Specification: Qq-n-281 federal specification single material response
Shank Diameter: Between 0.155 inches and 0.160 inches
Shank Style: Straight
Shear Strength: 49000 single pounds per square inch
