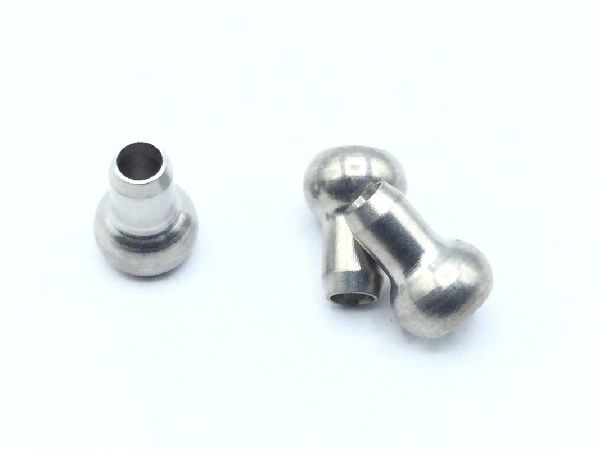

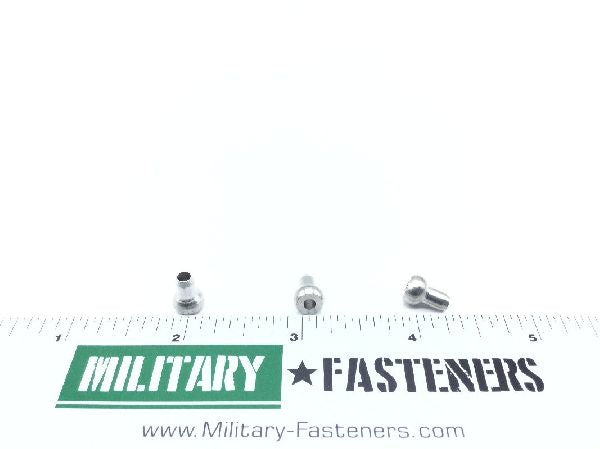

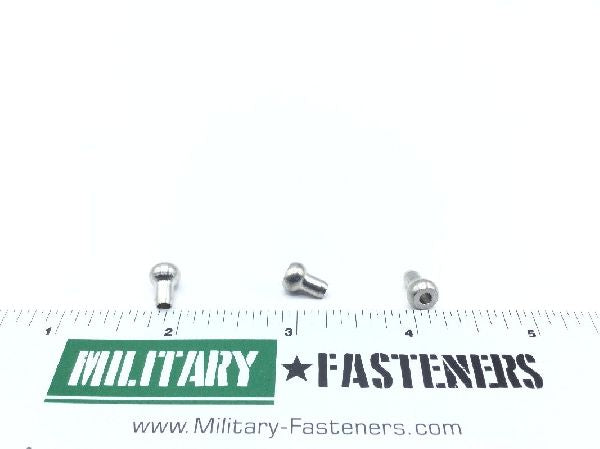

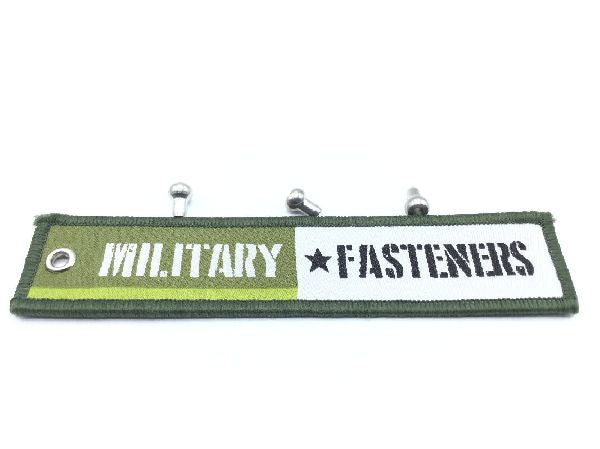

MS20664C3 Wire Rope Swaging Ball End
MS20664C3 Wire Rope Swaging Ball End (2)
MS20664C3 Wire Rope Swaging Ball End (3)
MS20664C3 Wire Rope Swaging Ball End (4)
MS20664C3 Wire Rope Swaging Ball End (5)
MS20664C3 Wire Rope Swaging Ball End (6)
MS20664C3 Wire Rope Swaging Ball End
MS20664C3 Wire Rope Swaging Ball End (2)
MS20664C3 Wire Rope Swaging Ball End (3)
MS20664C3 Wire Rope Swaging Ball End (4)
MS20664C3 Wire Rope Swaging Ball End (5)
MS20664C3 Wire Rope Swaging Ball End (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS20664C3 Wire Rope Swaging Ball End

Product Series
MS
ECCN
EAR99
Schedule
8544.49.9000
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Material
Stainless Steel
Overall Length
Between 0.379 inches and 0.389 inches
Accommodated Material Diameter
0.094 inches
Inside Diameter
Between 0.104 inches and 0.108 inches
Plain Shank Diameter
0.164 mils and 0.172 centimeters
Special Features
Flight safety critical
Style Designator
Oval with single shank
Head Diameter
Between 0.278 inches and 0.286 inches
