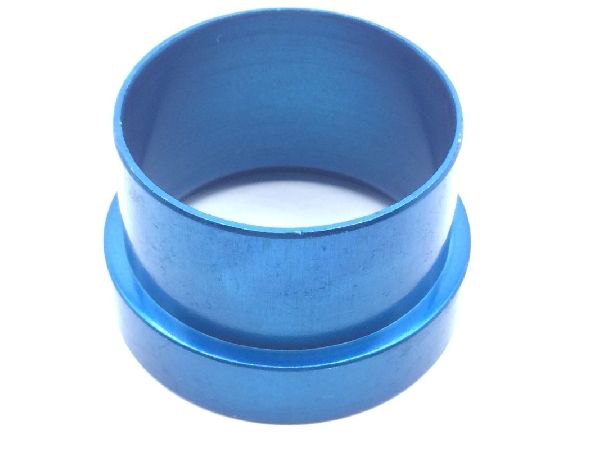

MS20819-16D Flared Tube Fitting Sleeve

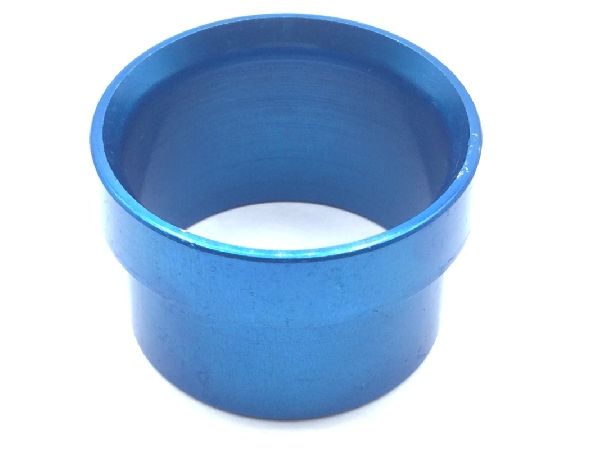

MS20819-16D Flared Tube Fitting Sleeve (2)

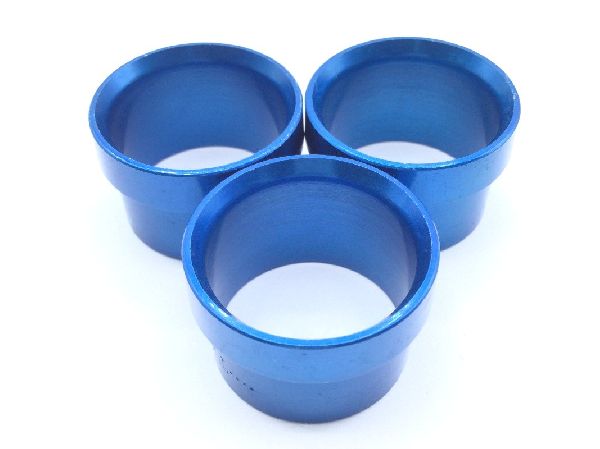

MS20819-16D Flared Tube Fitting Sleeve (3)

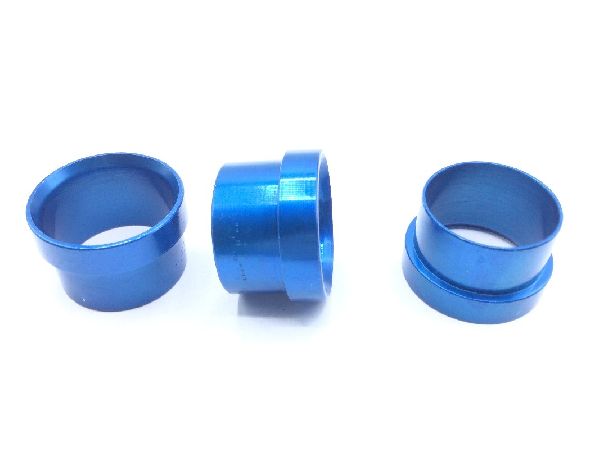

MS20819-16D Flared Tube Fitting Sleeve (4)

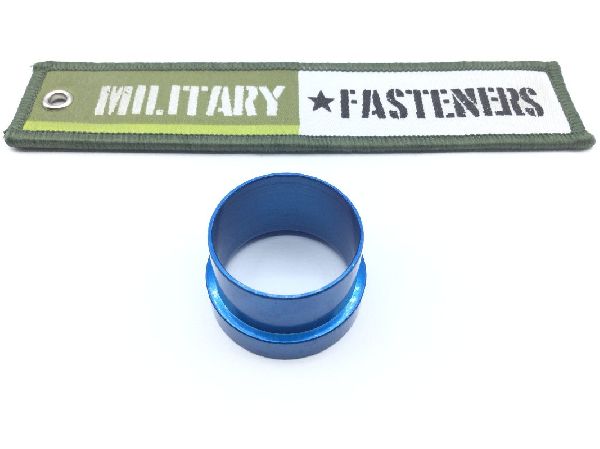

MS20819-16D Flared Tube Fitting Sleeve (5)

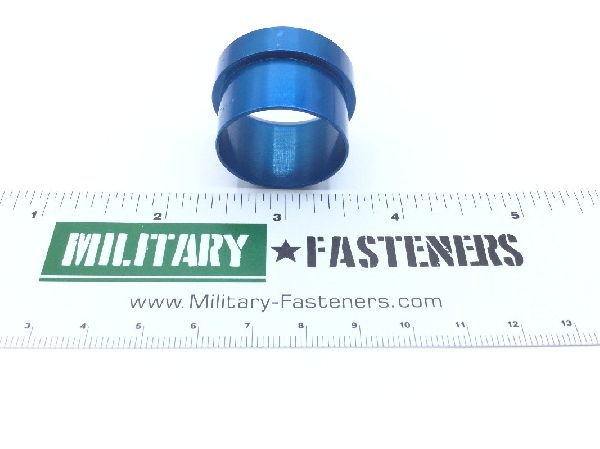

MS20819-16D Flared Tube Fitting Sleeve (6)

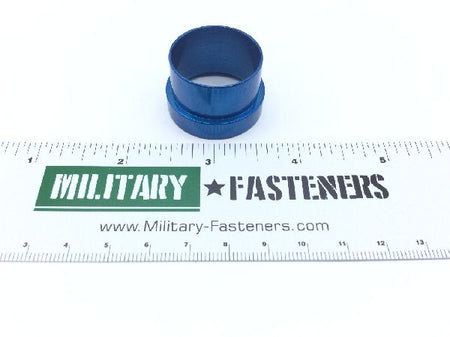

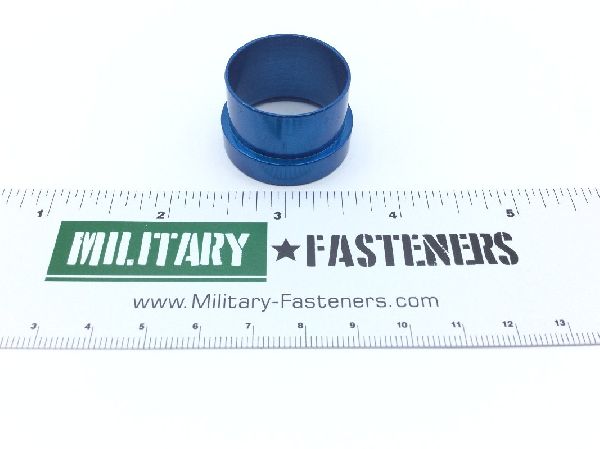

MS20819-16D Flared Tube Fitting Sleeve (7)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS20819-16D Flared Tube Fitting Sleeve

Product Series: MS
ECCN: EAR99
Schedule: 7307.22.5000

Price per Unit $15.38

Units per Pack 5

Price per Pack $76.90

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $76.90

Add item to quote

Material

qq-a-225/4 aluminum alloy

Overall Length

Between 0.765 inches and 0.797 inches

Casehardening Indicator: Not casehardened
Flange Outside Diameter: Between 1.219 inches and 1.222 inches
Flange Width: Between 0.265 inches and 0.297 inches
Hose/tube Outside Diameter For Which Designed: 1.000 inches
Seat Angle In Deg: 33
Sleeve Outside Diameter: Between 1.078 inches and 1.081 inches
Style Designator: Sleeve
