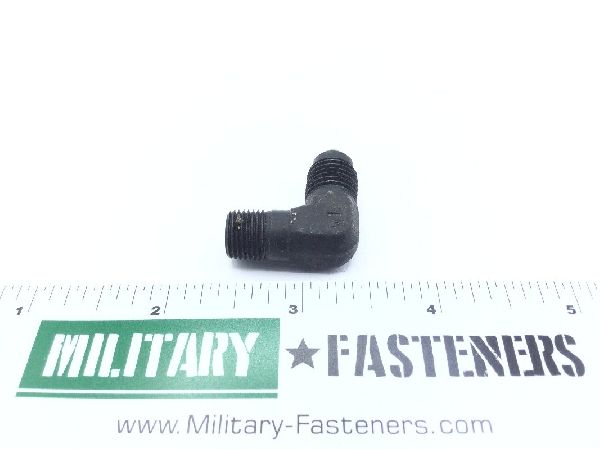

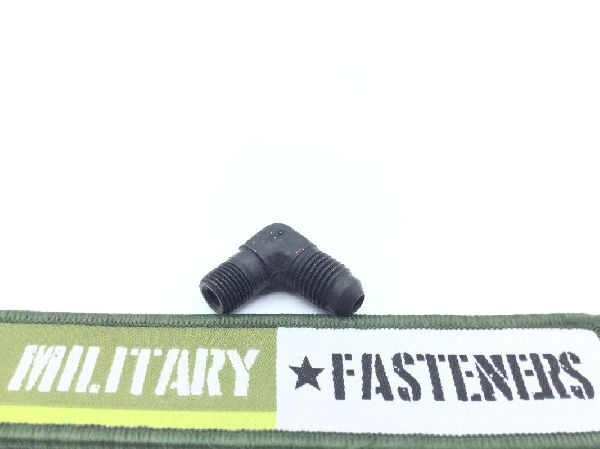

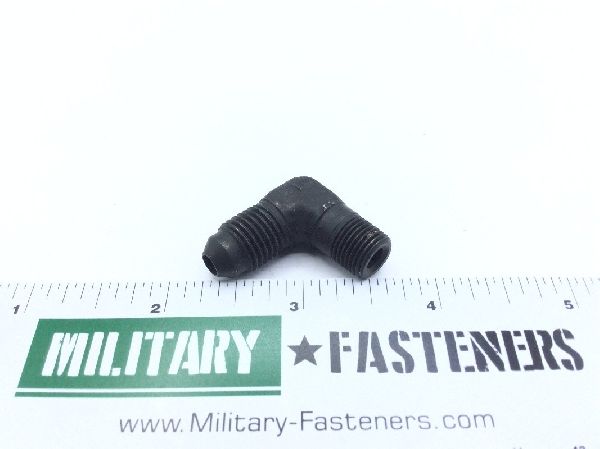

MS20822-4 Pipe To Tube Elbow

Product Series: MS
ECCN: EAR99
Schedule: 7326.90.8695

Price per Unit $72.00

Units per Pack 1

Price per Pack $72.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $72.00

Add item to quote

Material

Steel

Surface Treatment

Cl 2 federal specification single treatment response type 1 qq-p-416

Thread Class

3a 1st end

Thread Size

0.125 inches 2nd end

Connection Style: Plain (pipe) 2nd end
Connection Type: Threaded external tube 1st end
End Application: 2320-01-195-7641 hemtt (heavy expanded mobility tactical trucks) 2320-01-097-0260 2320-01-100-7672 2320-01-097-0249 grumman a-10 acft;2320-01-097-0248
Flow Angle: 90.0 degrees
Leg Length: 0.890 inches 1st end
Maximum Operating Pressure: 3000.0 pounds per square inch single response
Maximum Operating Temp: 400.0 degrees fahrenheit single response
Outside Diameter Tube Accommodated: 0.250 inches 1st end
Seat Angle: 37.0 degrees 1st end
Specification Data: 96906-ms20822 government standard
Thread Series Designator: Unjf (fine thread with external controlled root radius) 1st end
