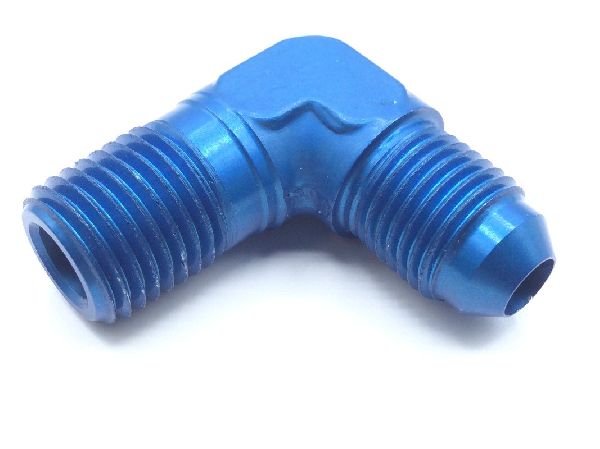

MS20822-5-4D Pipe To Tube Elbow

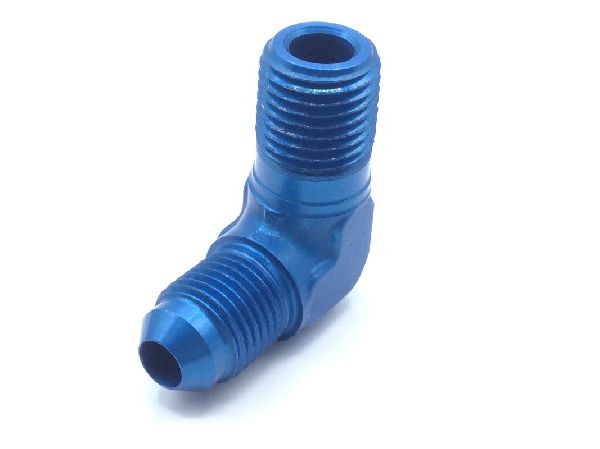

MS20822-5-4D Pipe To Tube Elbow (2)

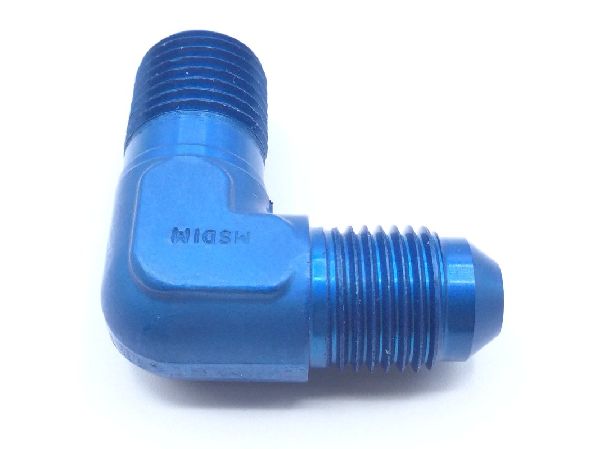

MS20822-5-4D Pipe To Tube Elbow (3)

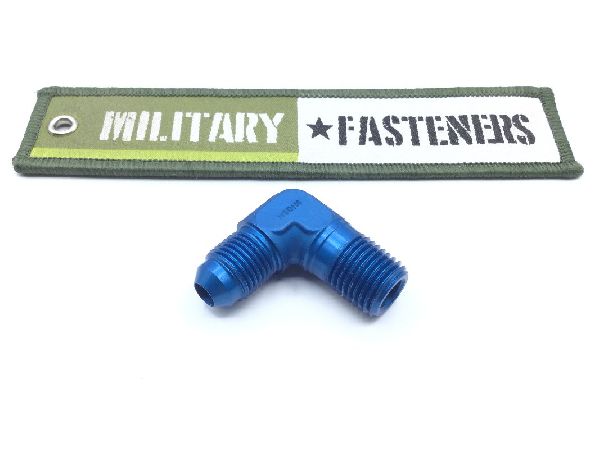

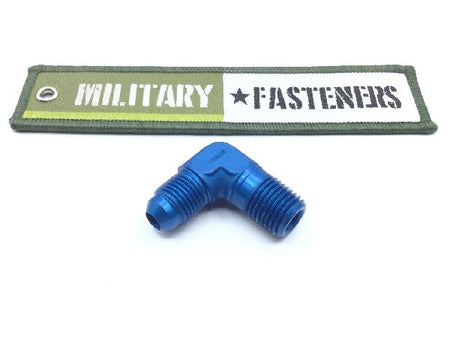

MS20822-5-4D Pipe To Tube Elbow (4)

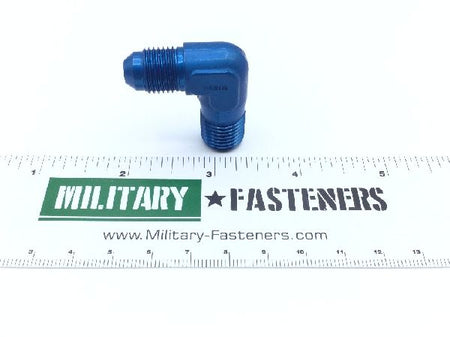

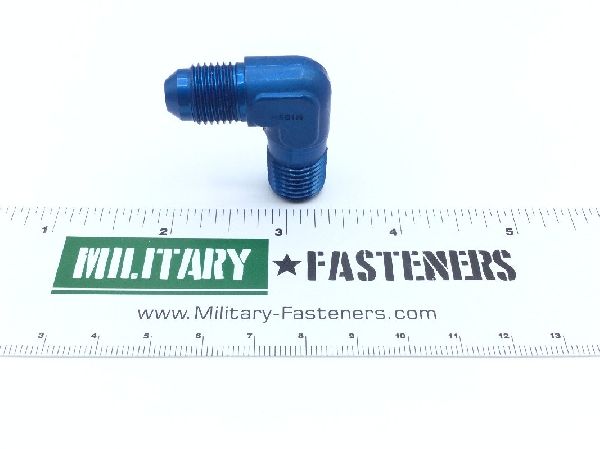

MS20822-5-4D Pipe To Tube Elbow (5)

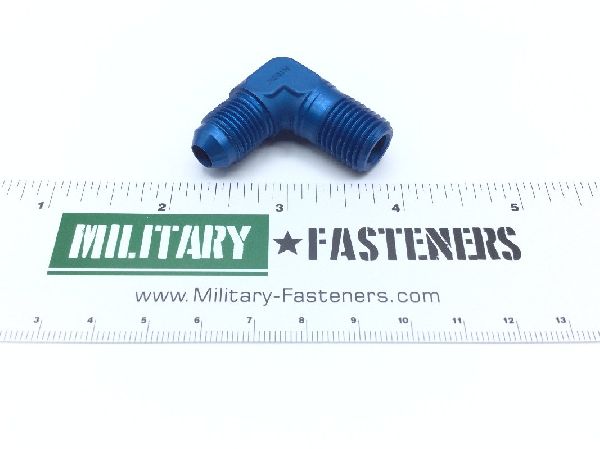

MS20822-5-4D Pipe To Tube Elbow (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS20822-5-4D Pipe To Tube Elbow

Product Series: MS
ECCN: EAR99
Schedule: 7326.90.8695

Price per Unit $55.37

Units per Pack 1

Price per Pack $55.37

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $55.37

Add item to quote

Material

Aluminum alloy

Surface Treatment

Mil-a-8625 military specification single treatment response outside

Thread Class

3a 1st end

Thread Size

0.250 inches 2nd end

Connection Style: Plain (pipe) 2nd end
Connection Type: Threaded external tube 1st end
Flow Angle: 90.0 degrees
Leg Length: 1.062 inches 2nd end and 1.109 inches 2nd end
Outside Diameter Tube Accommodated: 0.312 inches 1st end
Seat Angle: 37.0 degrees 1st end
Special Features: Used on grumman a10 aircraft
Specification Data: 96906-ms20822 government standard
Thread Series Designator: Unjf (fine thread with external controlled root radius) 1st end
