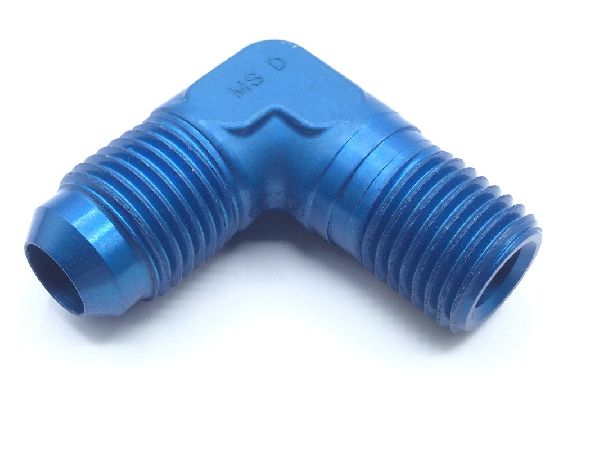

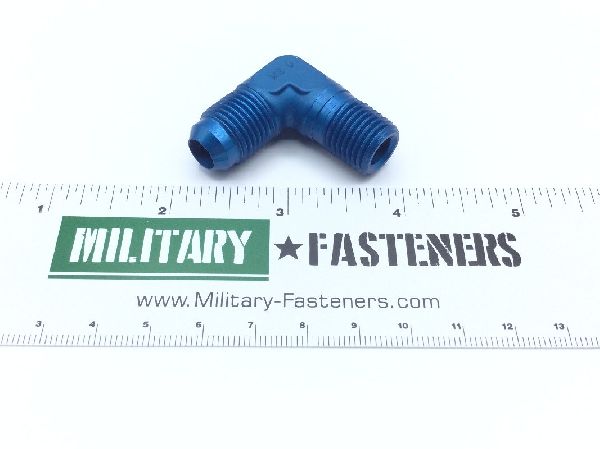

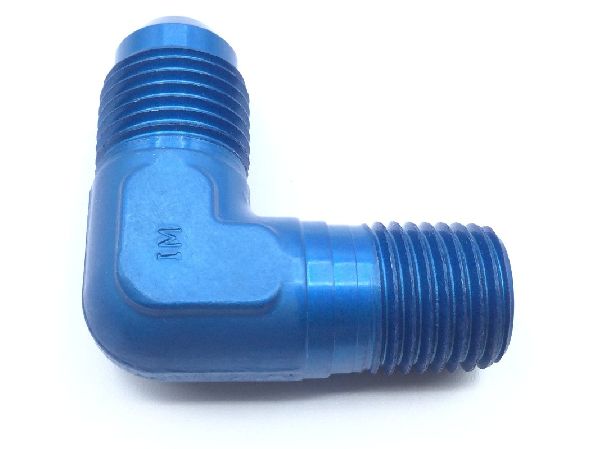

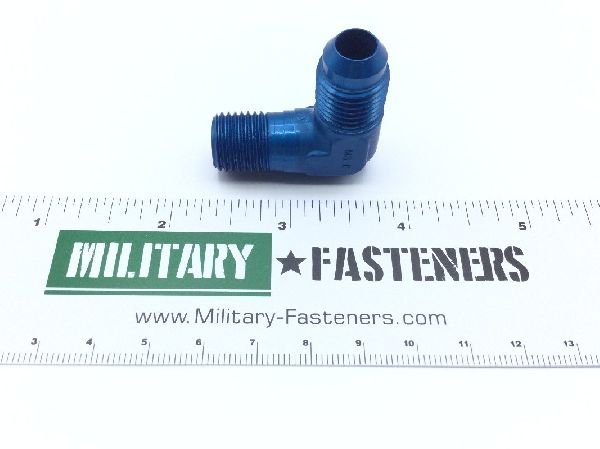

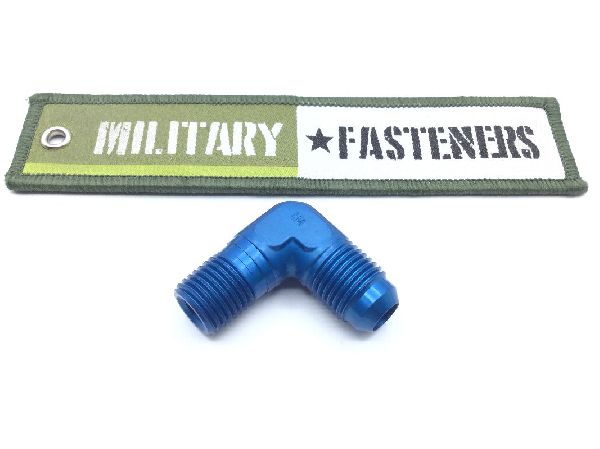

MS20822-6D Pipe To Tube Elbow

Product Series: MS
ECCN: EAR99
Schedule: 7307.22.5000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Aluminum alloy 2024

Surface Treatment

Cl 2 military specification single treatment response type 2 mil-a-8625

Thread Class

3a 1st end

Thread Size

0.250 inches 2nd end

Connection Style: Plain (pipe) 2nd end
Connection Type: Threaded external tube 1st end
Criticality Code Justification: Feat
End Application: f-16 (fighting falcon) aircraft application;aircraft
Flow Angle: 90.0 degrees
Leg Length: 1.094 inches 2nd end
Media For Which Designed: Hydraulic fluid single response
Outside Diameter Tube Accommodated: 0.375 inches 1st end
Seat Angle: 37.0 degrees 1st end
Special Features: Grumman aerospace a-10 aircraft;weapon system essential
Specification Data: 81343-as5195 government standard
Thread Series Designator: Unjf (fine thread with external controlled root radius) 1st end
