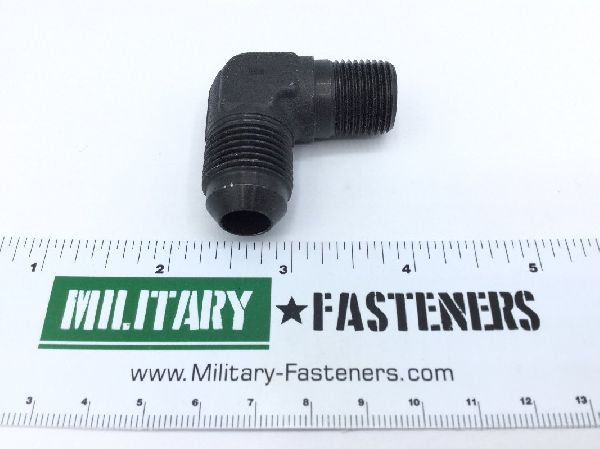

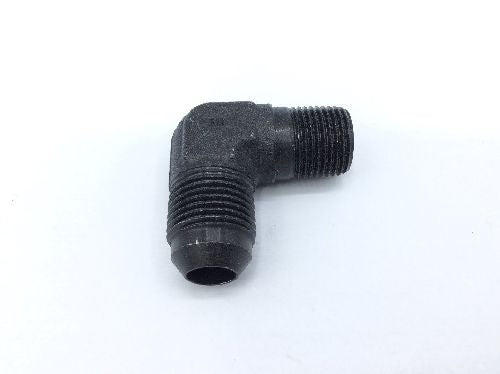

MS20822-8 Pipe To Tube Elbow

Product Series: MS
ECCN: EAR99
Schedule: 7326.90.8695

Price per Unit $84.89

Units per Pack 1

Price per Pack $84.89

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $84.89

Add item to quote

Material

Steel

Surface Treatment

Class 2 federal specification single treatment response type 2 qq-p-416

Thread Class

3a 1st end

Thread Size

0.375 inches 2nd end

Connection Style: Plain (pipe) 2nd end
Connection Type: Threaded external tube 1st end
Flow Angle: 90.0 degrees
Leg Length: 1.219 inches 2nd end
Material Specification: Mil-t-5066 military specification single material response
Maximum Operating Pressure: 3000.0 pounds per square inch single response
Maximum Operating Temp: -65.0 degrees fahrenheit 1st response
Media For Which Designed: Hydraulic fluid single response
Outside Diameter Tube Accommodated: 0.500 inches 1st end
Pipe Size Accommodated: 0.375 inches 2nd end
Seat Angle: 37.0 degrees 1st end
Special Features: Grumman aerospace a-10 aircraft
Thread Series Designator: Unf (fine thread) 1st end
