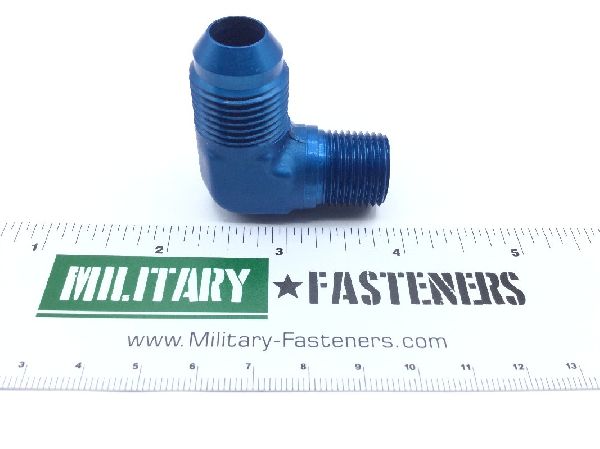

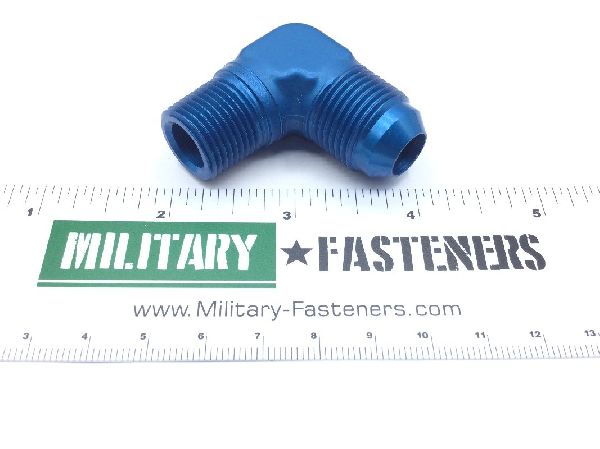

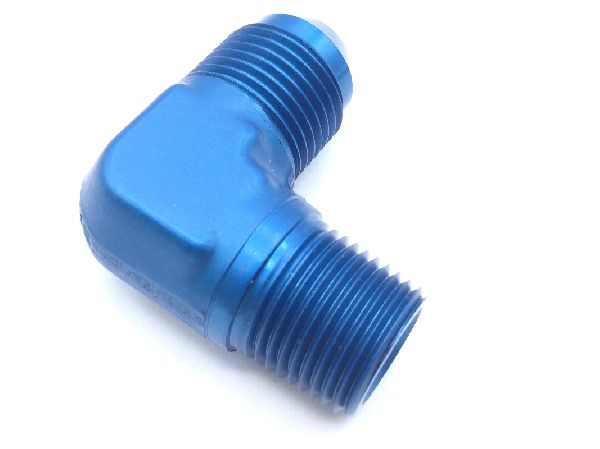

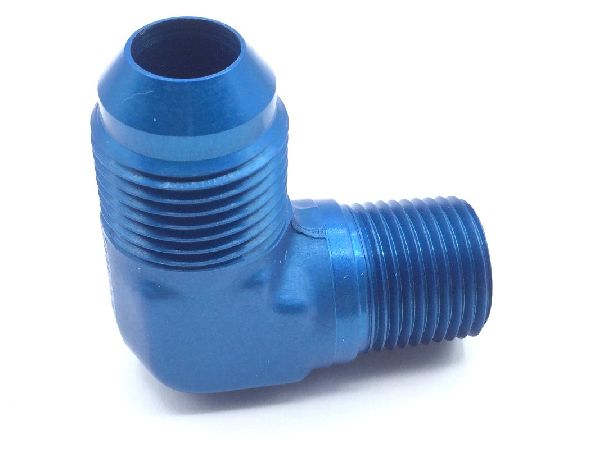

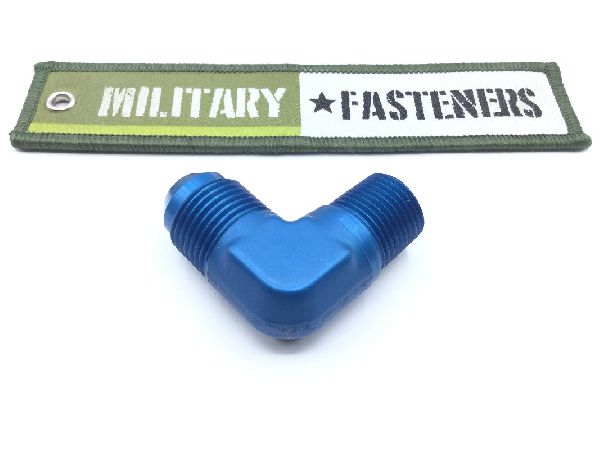

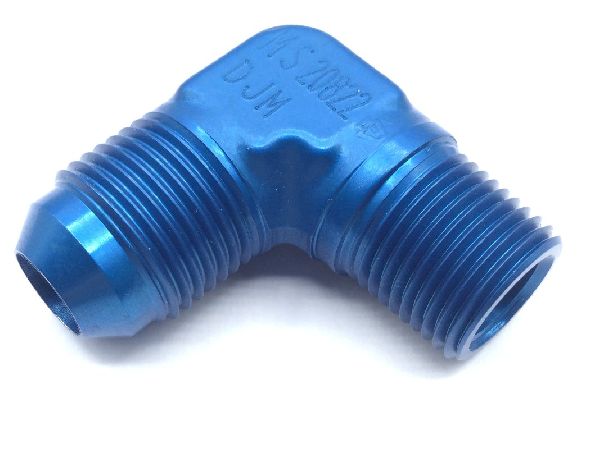

MS20822-8D Pipe To Tube Elbow

Product Series: MS
ECCN: 9A991
Schedule: 7326.90.8695

Price per Unit $34.09

Units per Pack 2

Price per Pack $68.18

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 2

Total Unit Quantity:

Total Packs 1

Total Price $68.18

Add item to quote

Material

Aluminum alloy 2014 or aluminum alloy 2024

Thread Class

3a 1st end

Thread Size

0.375 inches 2nd end

Connection Style: Plain (pipe) 2nd end
Connection Type: Threaded external tube 1st end
Flow Angle: 90.0 degrees
Leg Length: 1.250 inches 1st end and 1.297 inches 1st end
Material Specification: Qq-a-225/4 temper t6 federal specification single material response or qq-a-225/6 temper t6 or t851 federal specification single material response or qq-a-367 temper t6 federal specification single material response
Outside Diameter Tube Accommodated: 0.500 inches 1st end
Seat Angle: 37.0 degrees 1st end
Special Features: Grumman a-10 aircraft
Specification Data: 96906-ms20822 government standard
Thread Series Designator: Unjf (fine thread with external controlled root radius) 1st end
