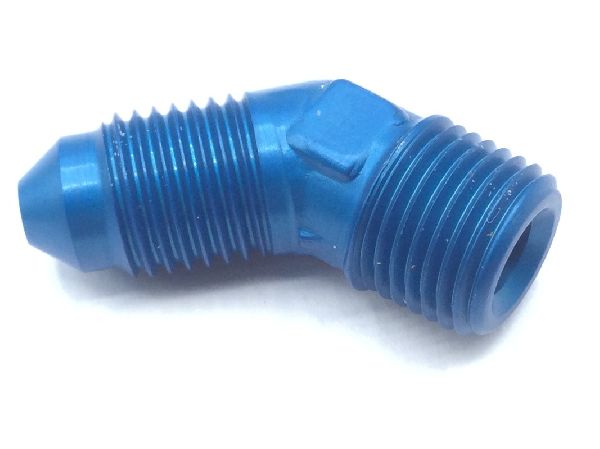

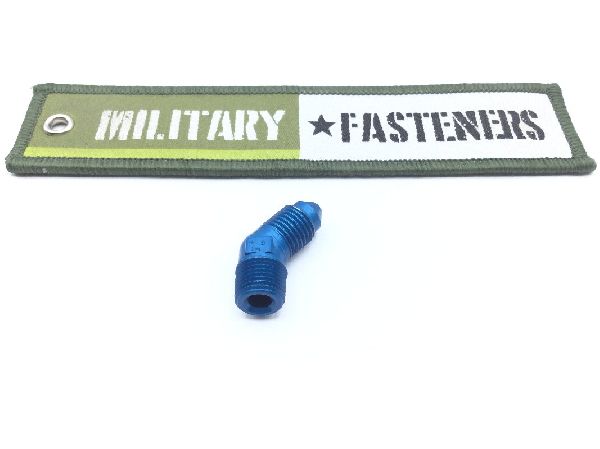

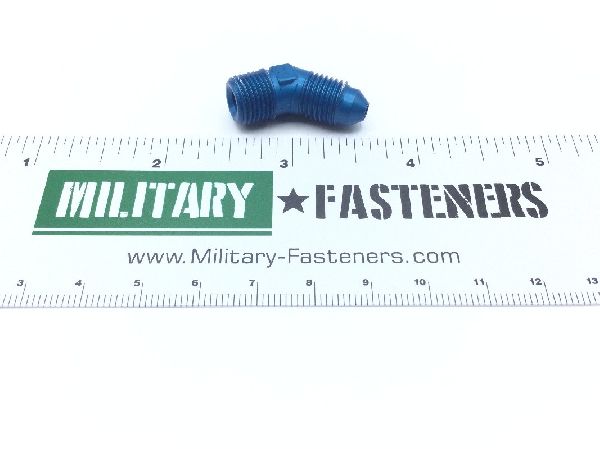

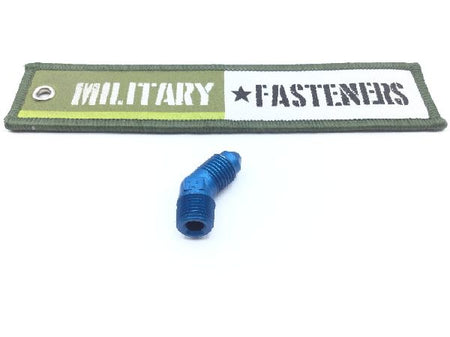

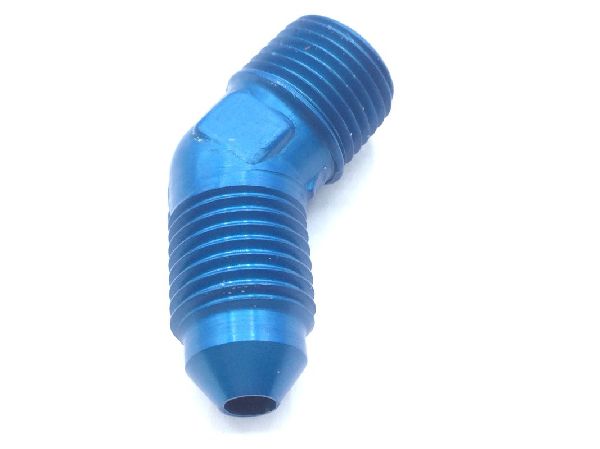

MS20823-3D Pipe To Tube Elbow

Product Series: MS
ECCN: EAR99
Schedule: 7326.90.8695

Price per Unit $35.96

Units per Pack 1

Price per Pack $35.96

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $35.96

Add item to quote

Material

Aluminum alloy

Surface Treatment

Mil-a-8625 military specification single treatment response

Thread Class

3a 1st end

Thread Size

0.375 inches 1st end

Connection Style: Plain (pipe) 2nd end
Connection Type: Threaded external tube 1st end
End Application: Aircraft application
Flow Angle: 45.0 degrees
Leg Length: 0.641 inches 1st end
Outside Diameter Tube Accommodated: 0.188 inches 1st end
Seat Angle: 37.0 degrees 1st end
Specification Data: 96906-ms20823 government standard
Thread Series Designator: Unjf (fine thread with external controlled root radius) 1st end
