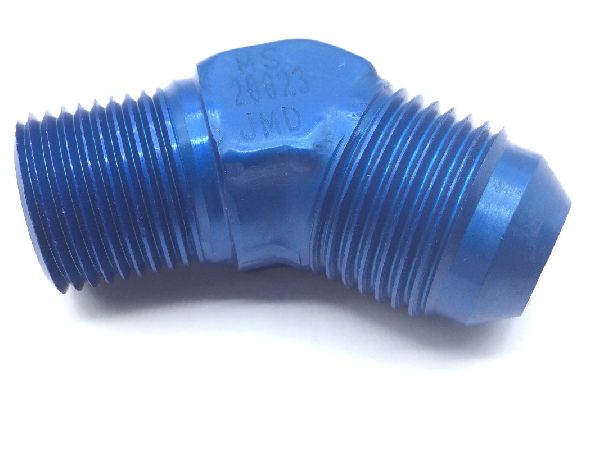

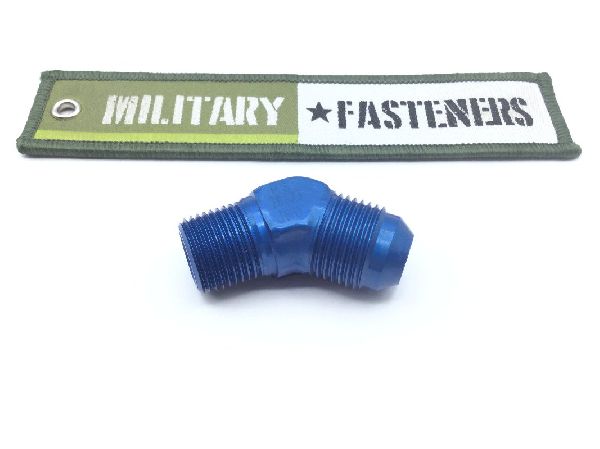

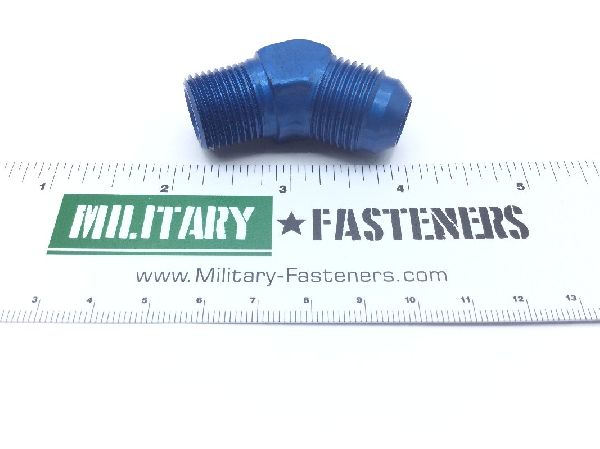

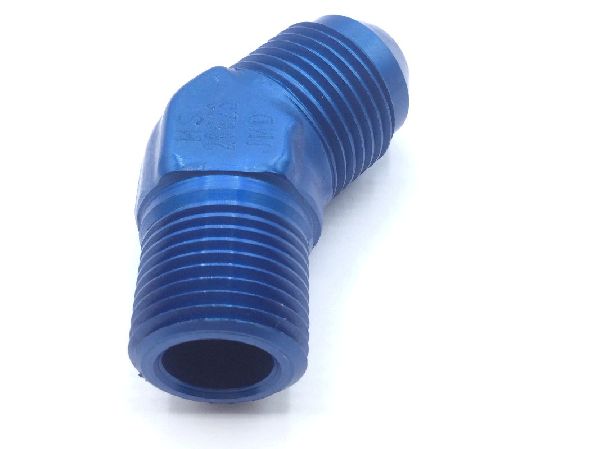

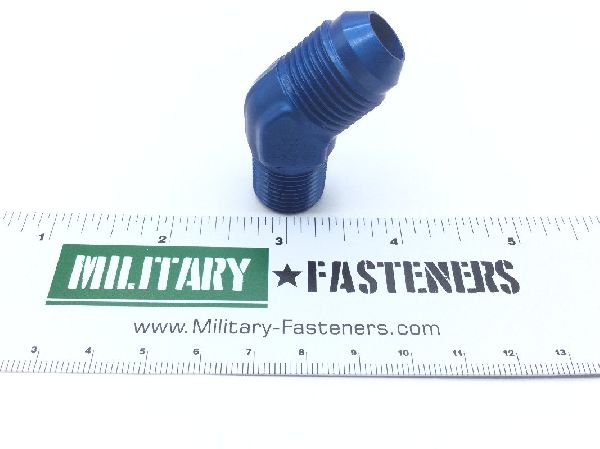

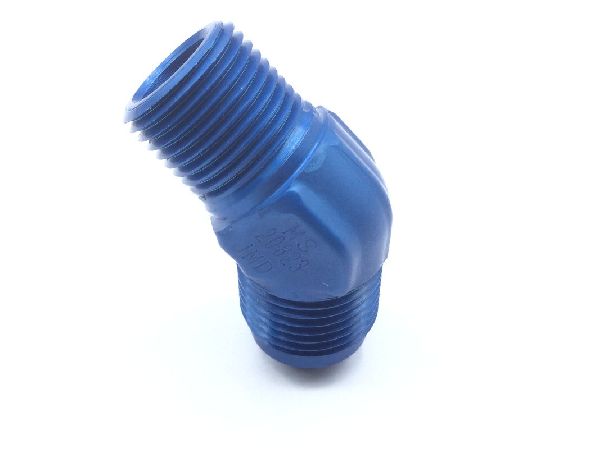

MS20823-8D Pipe to Tube Elbow

Connection Style

Plain (pipe) 2nd end

Connection Type

Threaded external pipe 2nd end

Flow Angle

45.0 degrees

Leg Length

0.938 inches 2nd end

Outside Diameter Tube Accommodated

0.500 inches 1st end

Seat Angle

37.0 degrees 1st end

Special Features

Grumman aerospace a-10 aircraft

Specification Data

96906-ms20823 government standard

Thread Series Designator

Unjf (fine thread with external controlled root radius) 1st end
