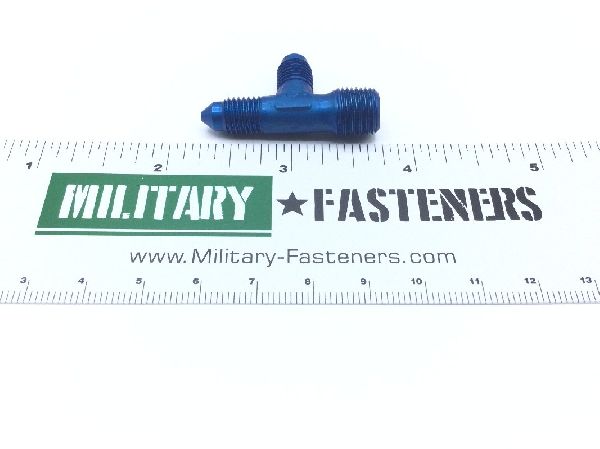

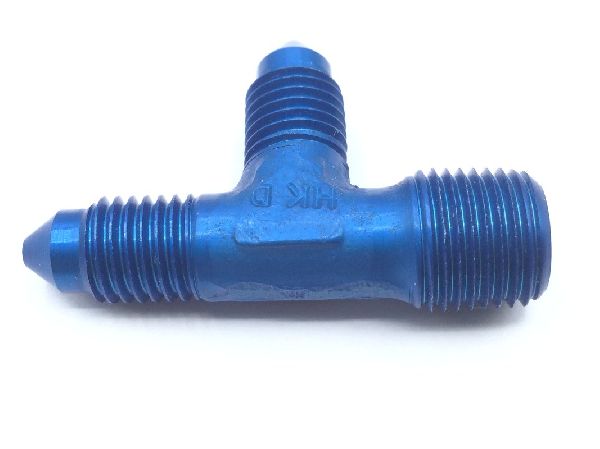

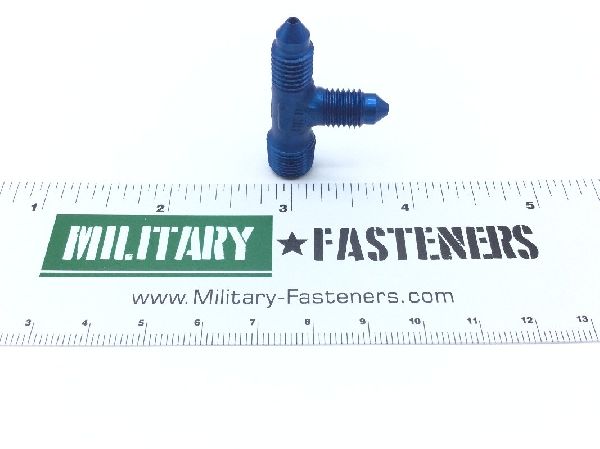

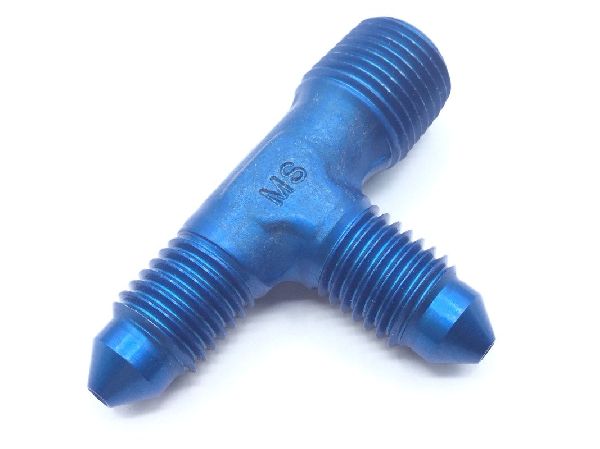

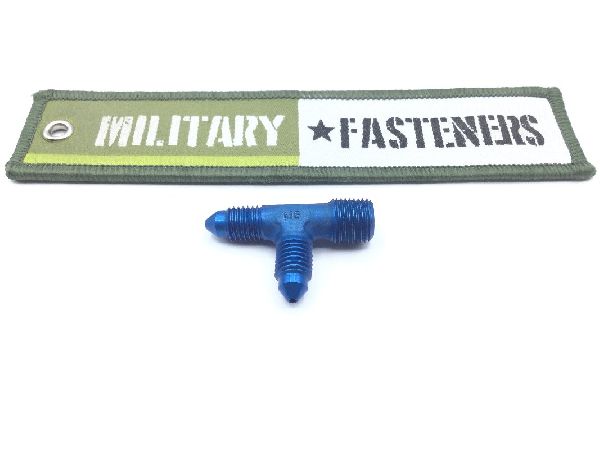

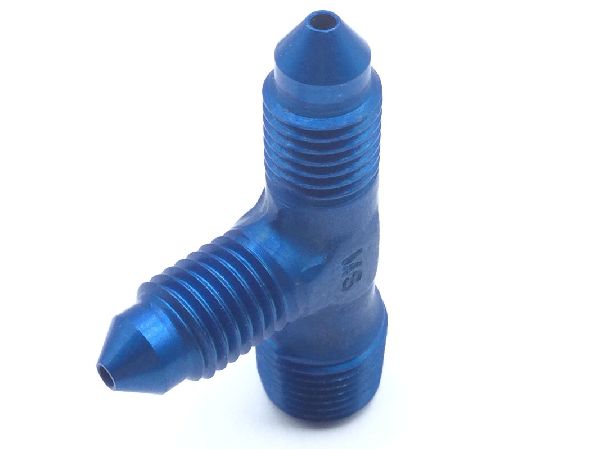

MS20826-2D Pipe To Tube Tee

Product Series: MS
ECCN: 9A991
Schedule: 7326.90.8695

Price per Unit $36.73

Units per Pack 1

Price per Pack $36.73

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $36.73

Add item to quote

Material

Aluminum alloy 2014 or aluminum alloy 7075

Surface Treatment

Cl 2 military specification single treatment response type 2 mil-a-8625

Thread Class

3a 3rd end

Thread Size

0.312 inches 3rd end

Connection Style: Plain (pipe) 2nd end
Connection Type: Threaded external tube 1st end
End Application: b-1 aircraft acf support equipment
Leg Length: 0.734 inches 3rd end
Material Specification: T73 federal specification 2nd material response t6 federal specification 1st material response or qq-a-367 qq-a-367
Maximum Operating Pressure: 3000.0 pounds per square inch single response
Maximum Operating Temp: -65 degrees Fahrenheit 1st response
Media For Which Designed: gaseous 2nd response oxygen
Outside Diameter Tube Accommodated: 0.125 inches 1st end
Seat Angle: 37.0 degrees 3rd end
Thread Series Designator: Unjf (fine thread with external controlled root radius) 3rd end
