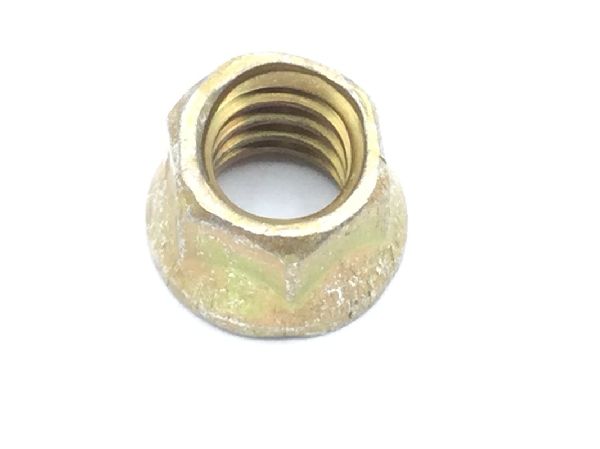

MS21042-08 Self-Locking Extended Washer Nut

MS21042-08 Self-Locking Extended Washer Nut (2)

MS21042-08 Self-Locking Extended Washer Nut (3)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS21042-08 Self-Locking Extended Washer Nut

Product Series: MS
ECCN: EAR99
Schedule: 8112.29.0000

Price per Unit $0.70

Units per Pack 50

Price per Pack $35.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $35.00

Add item to quote

Material

Steel

Surface Treatment

Class 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Thread Series

Unjc

Thread Size

0.164 in

End Application: Mrap cougar ambulance
Hardness Rating: 49 rockwell c
Locking Feature: Prevailing torque all metal design
Nut Style: Hexagon
Overall Height: Between 0.125 in and 0.188 in
Tempurature Rating: 450.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Washer Outside Diameter: 0.290 in
Washer Thickness: 0.015 in
Width Across Flats: Between 0.213 in and 0.221 in
Lubrication: Soluble lubricant
