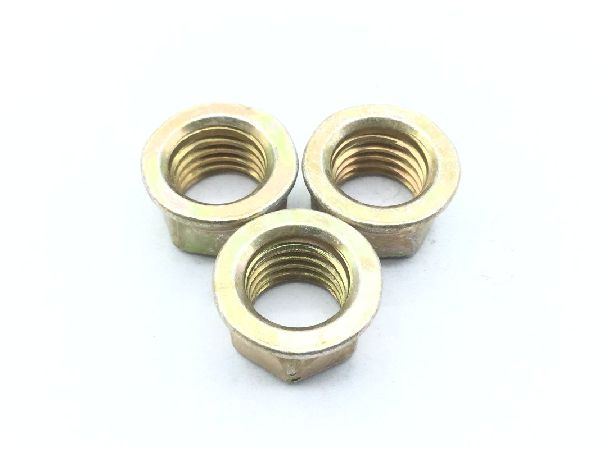

MS21042-5 Self-Locking Extended Washer Nut

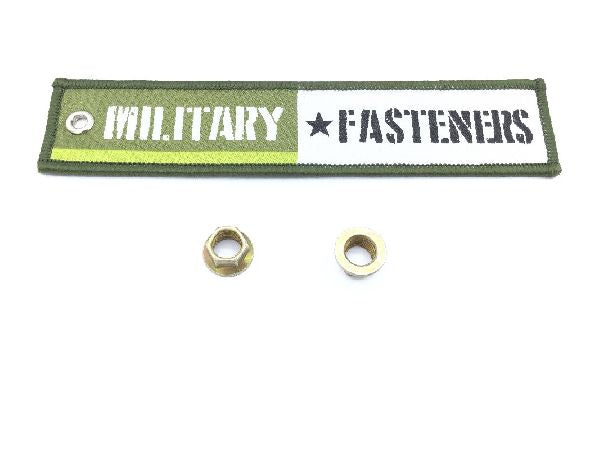

MS21042-5 Self-Locking Extended Washer Nut (2)

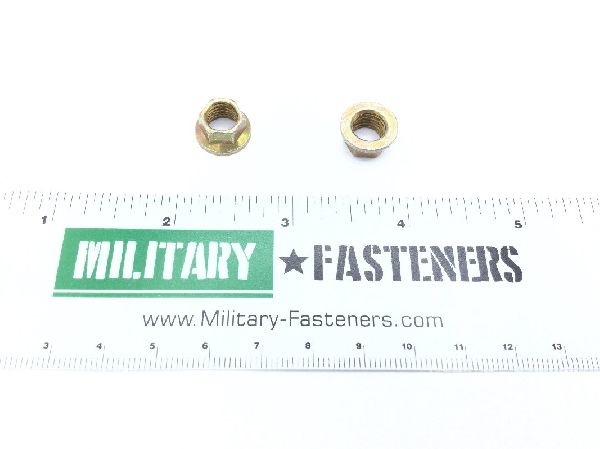

MS21042-5 Self-Locking Extended Washer Nut (3)

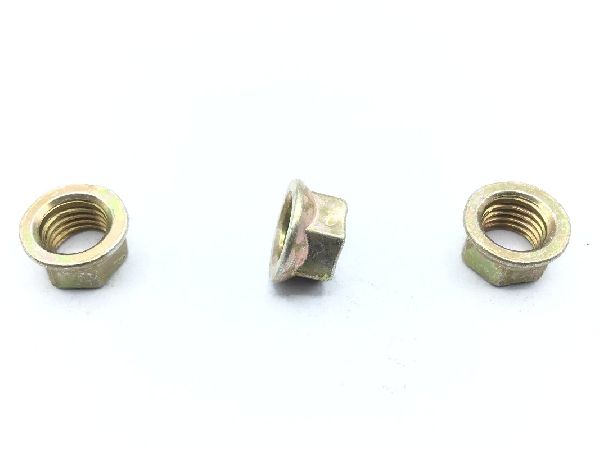

MS21042-5 Self-Locking Extended Washer Nut (4)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS21042-5 Self-Locking Extended Washer Nut

Product Series: MS
ECCN: EAR99
Schedule: 8112.29.0000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Material

Steel

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Thread Class

3b

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.312 inches

Hardness Rating: 49.0 rockwell c
Locking Feature: Prevailing torque all metal design
Nut Style: Hexagon
Overall Height: Between 0.251 inches and 0.266 inches
Tempurature Rating: 450.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 24
Washer Outside Diameter: 0.520 inches
Washer Thickness: 0.023 inches
Width Across Flats: Between 0.367 inches and 0.378 inches
Lubrication: Soluble lubricant
