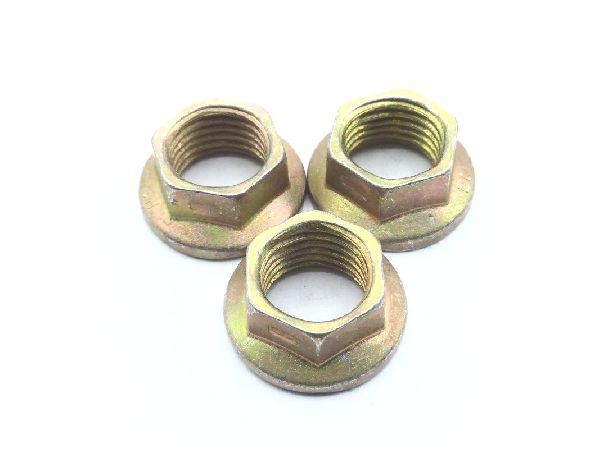

MS21042-6 Self-Locking Extended Washer Nut

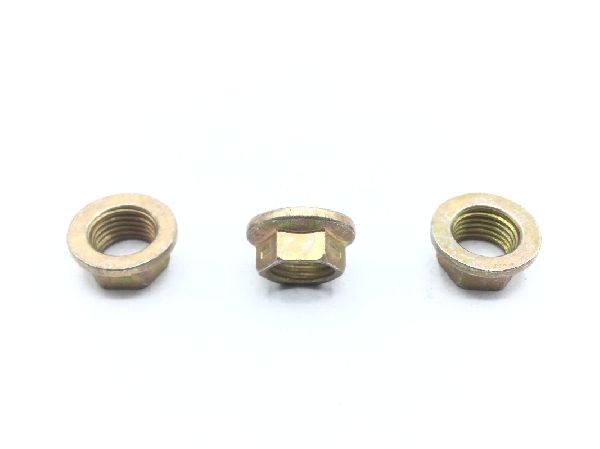

MS21042-6 Self-Locking Extended Washer Nut (2)

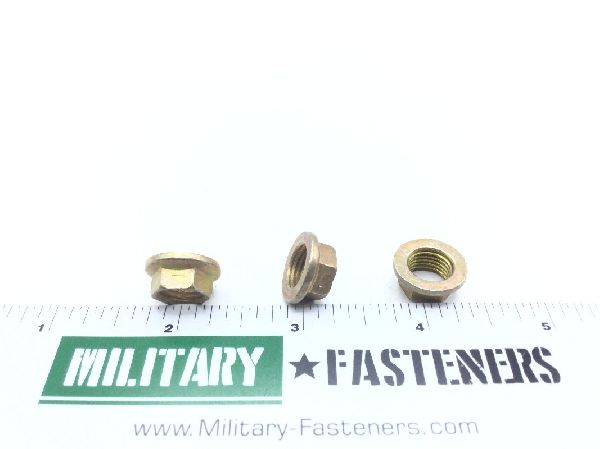

MS21042-6 Self-Locking Extended Washer Nut (3)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS21042-6 Self-Locking Extended Washer Nut

Product Series: MS
ECCN: EAR99
Schedule: 8112.29.0000

Price per Unit $1.85

Units per Pack 50

Price per Pack $92.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $92.50

Add item to quote

Material

Steel

Surface Treatment

Class 3 federal specification single treatment response type 2 qq-p-416

Thread Class

3b

Thread Quantity Per Inch (tpi)

24

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.375 inches

Locking Feature: Prevailing torque all metal design
Nut Style: Hexagon
Overall Height: Between 0.267 inches and 0.282 inches
Tempurature Rating: 450 degrees fahrenheit
Thread Direction: Right-hand
Washer Outside Diameter: 0.62 inches
Washer Thickness: 0.03 inches
Width Across Flats: Between 0.43 inches and 0.44 inches
Lubrication: Soluble lubricant
