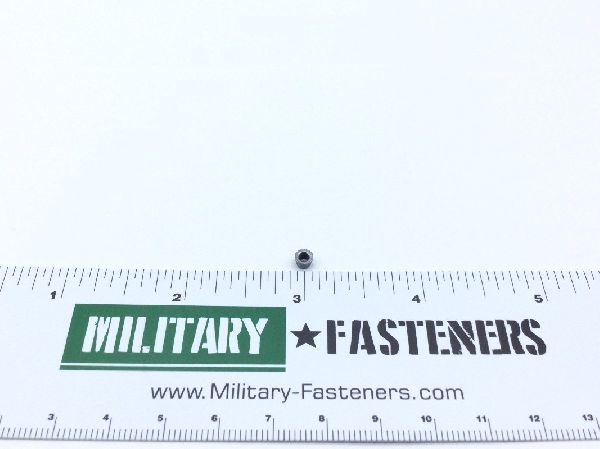

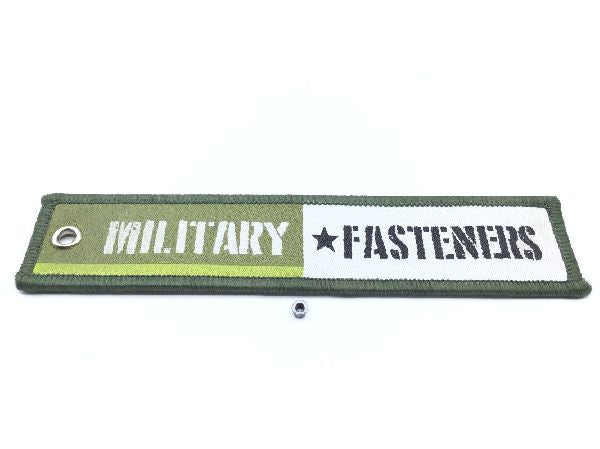

MS21042L02 Self-Locking Extended Washer Nut

MS21042L02 Self-Locking Extended Washer Nut (2)

MS21042L02 Self-Locking Extended Washer Nut (3)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS21042L02 Self-Locking Extended Washer Nut

Product Series: MS
ECCN: EAR99
Schedule: 8112.29.0000

Price per Unit $1.55

Units per Pack 25

Price per Pack $38.75

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $38.75

Add item to quote

Material

Steel

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Thread Class

3b

Thread Series

Unjc

Thread Size

0.086 inches

Hardness Rating: 49.0 rockwell c
Locking Feature: Prevailing torque all metal design
Nut Style: Hexagon
Overall Height: Between 0.080 inches and 0.100 inches
Tempurature Rating: 450.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 56
Washer Outside Diameter: 0.167 inches
Washer Thickness: 0.010 inches
Width Across Flats: Between 0.122 inches and 0.127 inches
Lubrication: Dry film lubricant
