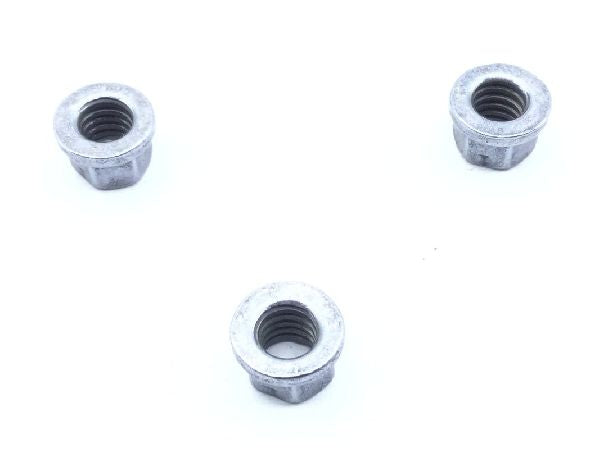

MS21042L08 Self-Locking Extended Washer Nut
MS21042L08 Self-Locking Extended Washer Nut (2)

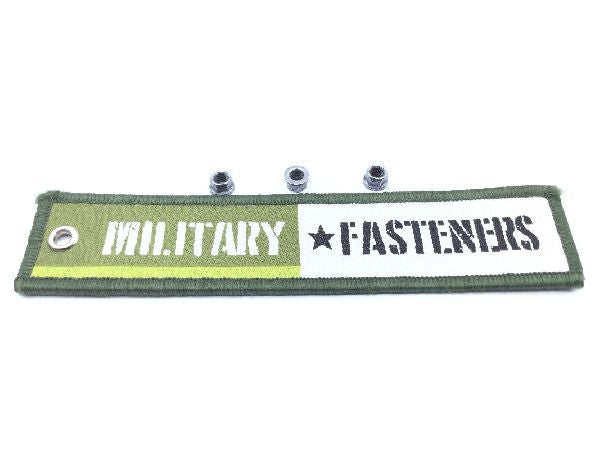

MS21042L08 Self-Locking Extended Washer Nut (3)

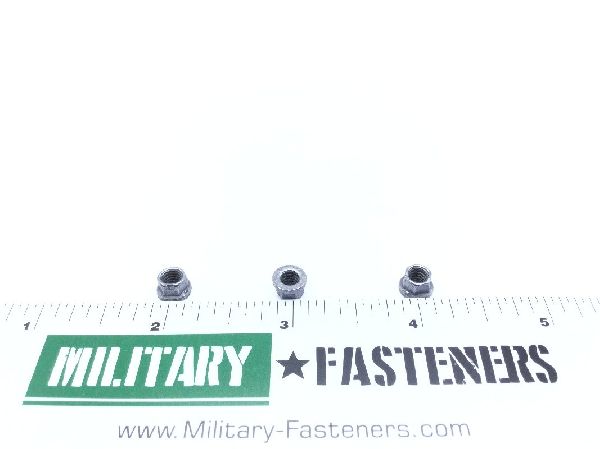

MS21042L08 Self-Locking Extended Washer Nut (4)
MS21042L08 Self-Locking Extended Washer Nut
MS21042L08 Self-Locking Extended Washer Nut (2)
MS21042L08 Self-Locking Extended Washer Nut (3)
MS21042L08 Self-Locking Extended Washer Nut (4)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS21042L08 Self-Locking Extended Washer Nut

Product Series
MS
ECCN
EAR99
Schedule
8112.29.0000
Price per Unit $0.79
Units per Pack 50
Price per Pack $39.50
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:
Total Packs 1
Total Price $39.50
Add item to quote
Material
Steel
Surface Treatment
Cl 3 federal specification single treatment response type 2 qq-p-416
Thread Class
3b
Thread Series
Unjc
Thread Size
0.164 inches
Criticality Code Justification
Feat
Hardness Rating
49 rockwell c
Locking Feature
Prevailing torque all metal design
Nut Style
Hexagon
Overall Height
Between 0.125 inches and 0.188 inches
Special Features
The item is a flight safety critical aircraft part (fscap).
Tempurature Rating
450 degrees fahrenheit
Thread Direction
Right-hand
Thread Qty Per Inch (tpi)
32
Washer Outside Diameter
0.290 inches
Washer Thickness
0.015 inches
Width Across Flats
Between 0.213 inches and 0.221 inches
Lubrication
Dry film lubricant
