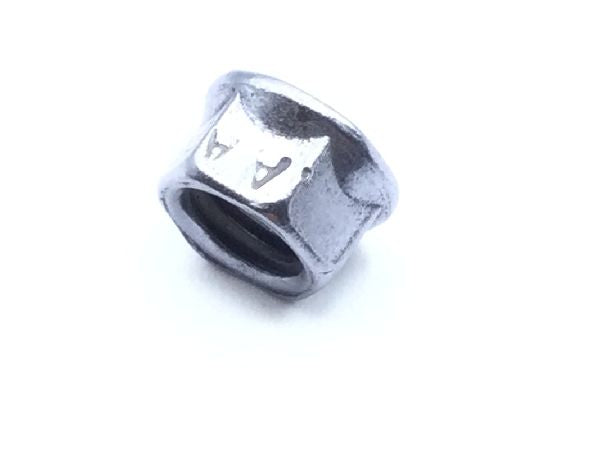

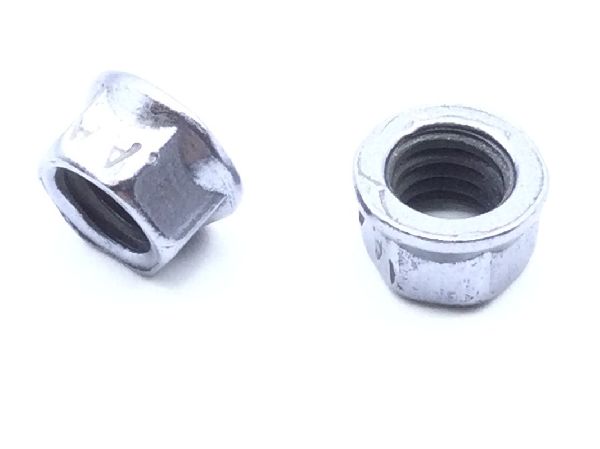

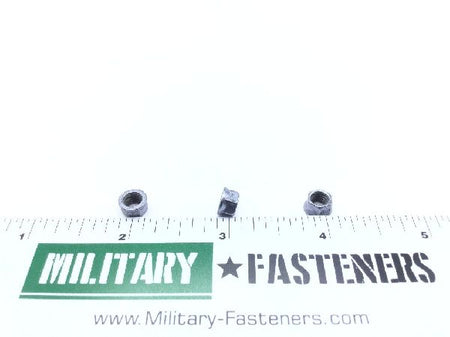

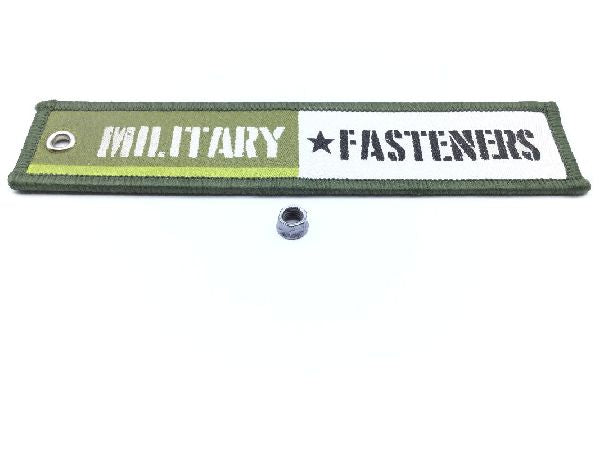

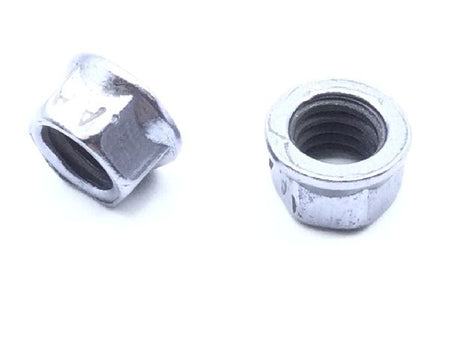

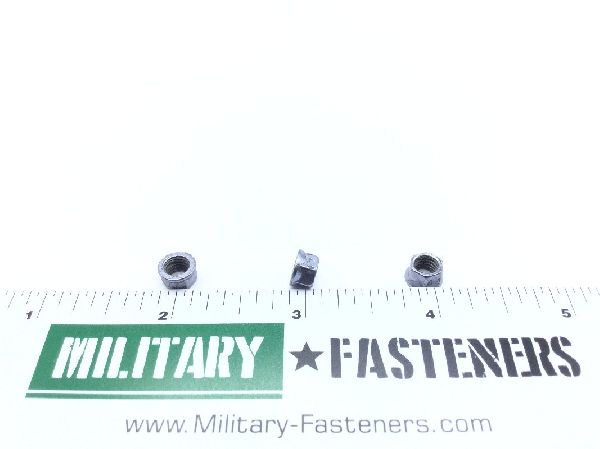

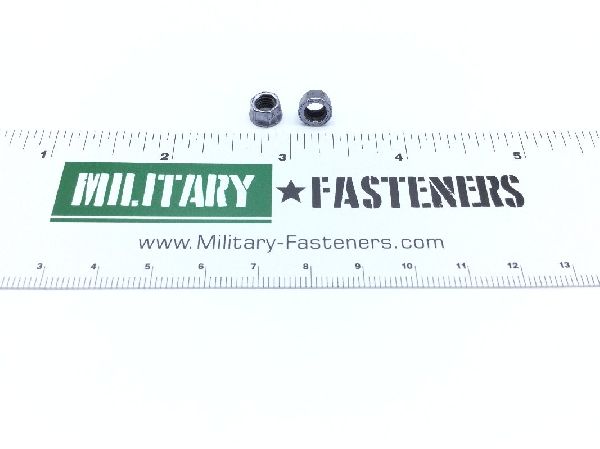

MS21042L3 Self-Locking Extended Washer Nut

MS21042L3 Self-Locking Extended Washer Nut (2)

MS21042L3 Self-Locking Extended Washer Nut (3)

MS21042L3 Self-Locking Extended Washer Nut (4)

MS21042L3 Self-Locking Extended Washer Nut (5)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS21042L3 Self-Locking Extended Washer Nut

Product Series: MS
ECCN: EAR99
Schedule: 8112.29.0000

Price per Unit $0.86

Units per Pack 50

Price per Pack $43.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $43.00

Add item to quote

Material

Steel

Surface Treatment

Class 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.19 inch

Criticality Code Justification: Feat
Hardness Rating: 49 rockwell
Locking Feature: Prevailing torque all metal design
Nut Style: Hexagon
Overall Height: Between 0.154 inch and 0.188 inch
Special Features: The item is a flight safety critical aircraft part (fscap)
Tempurature Rating: 450 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Washer Outside Diameter: 0.33 inch
Washer Thickness: 0.015 inch
Width Across Flats: Between 0.243 inch and 0.252 inch
Lubrication: Dry film lubricant
