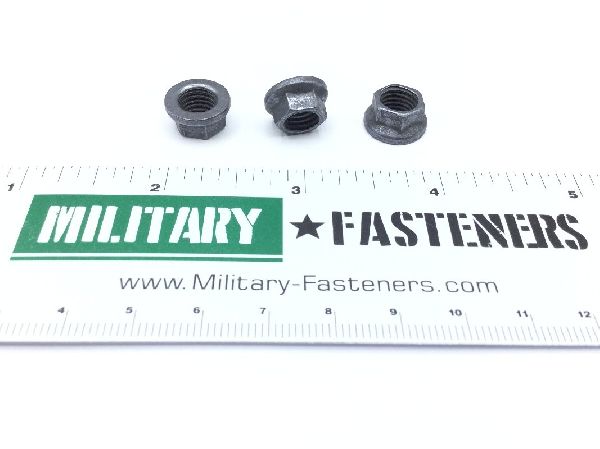

MS21042L5 Self-Locking Extended Washer Nut

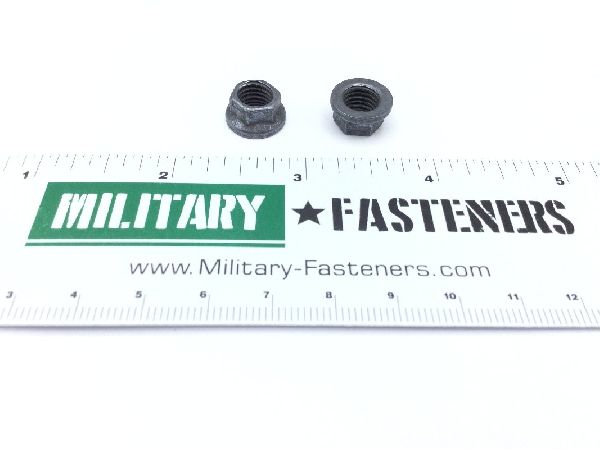

MS21042L5 Self-Locking Extended Washer Nut (2)

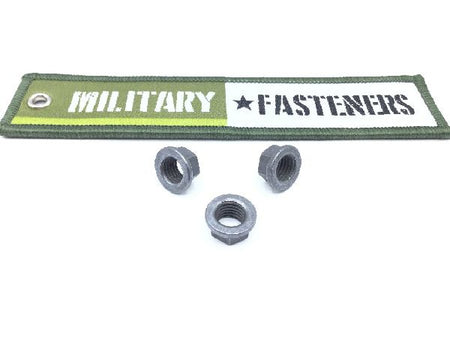

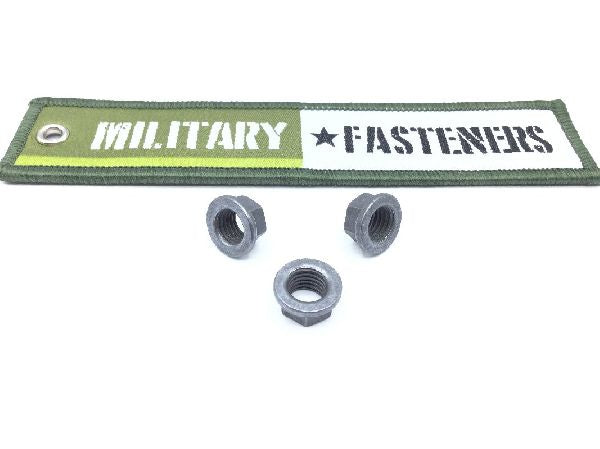

MS21042L5 Self-Locking Extended Washer Nut (3)

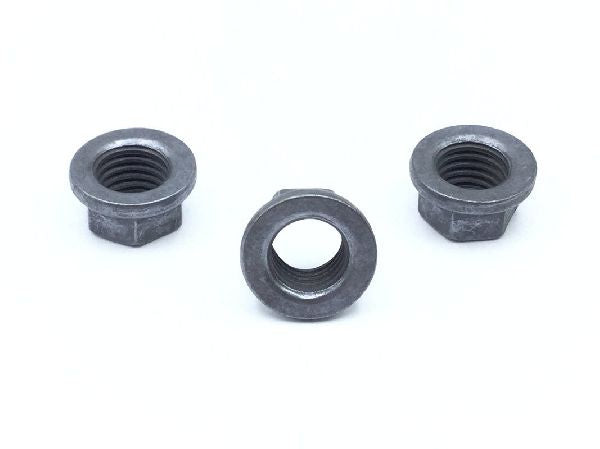

MS21042L5 Self-Locking Extended Washer Nut (4)

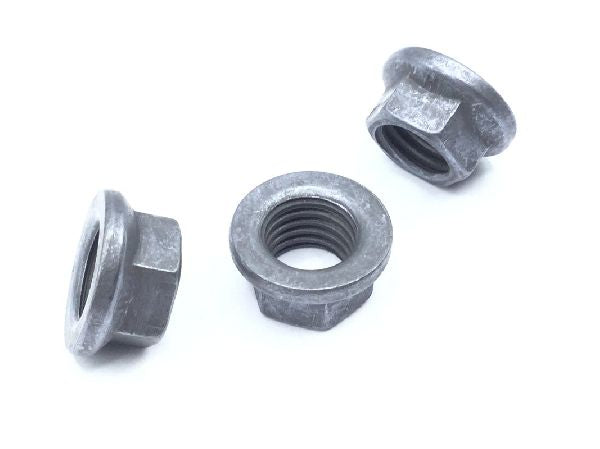

MS21042L5 Self-Locking Extended Washer Nut (5)

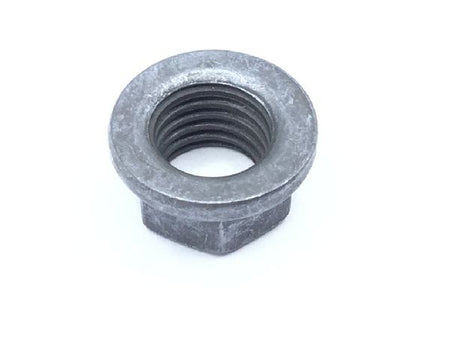

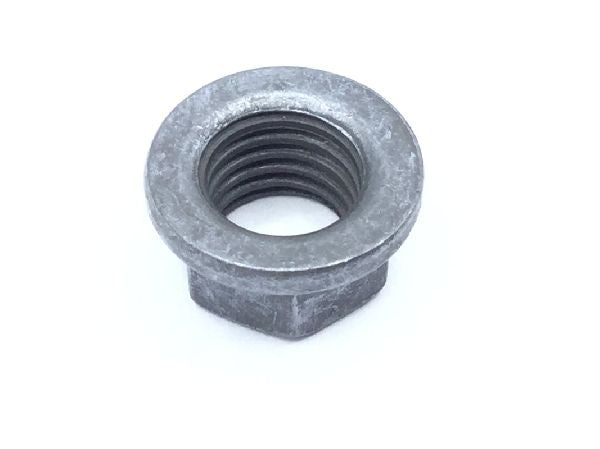

MS21042L5 Self-Locking Extended Washer Nut (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS21042L5 Self-Locking Extended Washer Nut

Product Series: MS
ECCN: EAR99
Schedule: 8112.29.0000

Price per Unit $1.72

Units per Pack 25

Price per Pack $43.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $43.00

Add item to quote

Material

Steel

Surface Treatment

Class 3 federal specification single treatment response type 2 qq-p-416

Thread Class

3b

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.312 inches

Hardness Rating: 49.0 rockwell c
Locking Feature: Prevailing torque all metal design
Nut Style: Hexagon
Overall Height: Between 0.251 inches and 0.266 inches
Tempurature Rating: 450.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 24
Washer Outside Diameter: 0.520 inches
Washer Thickness: 0.023 inches
Width Across Flats: Between 0.367 inches and 0.378 inches
Lubrication: Dry film lubricant
