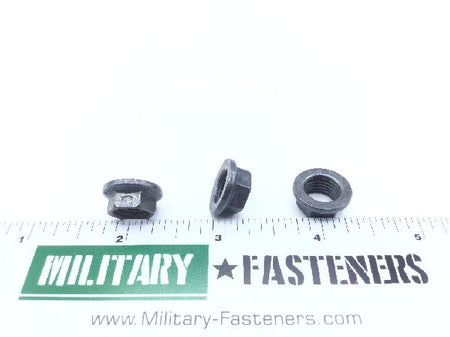

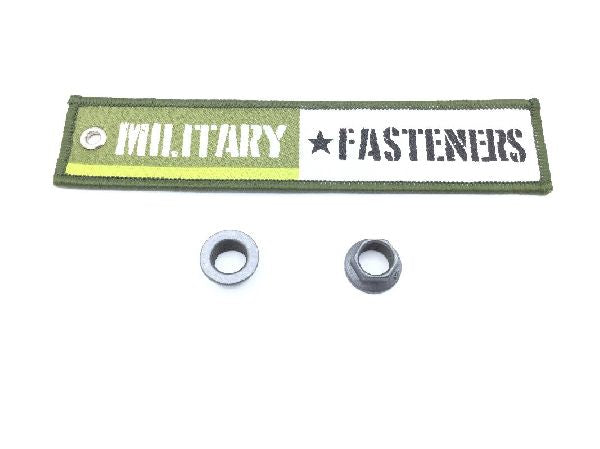

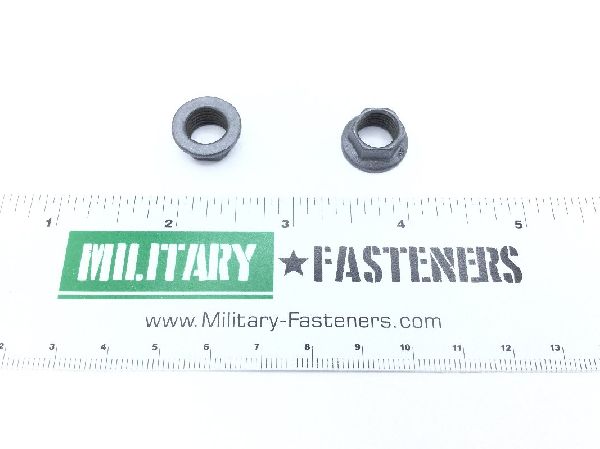

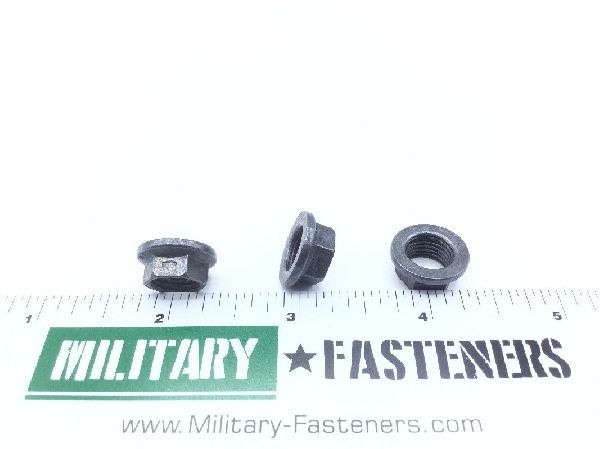

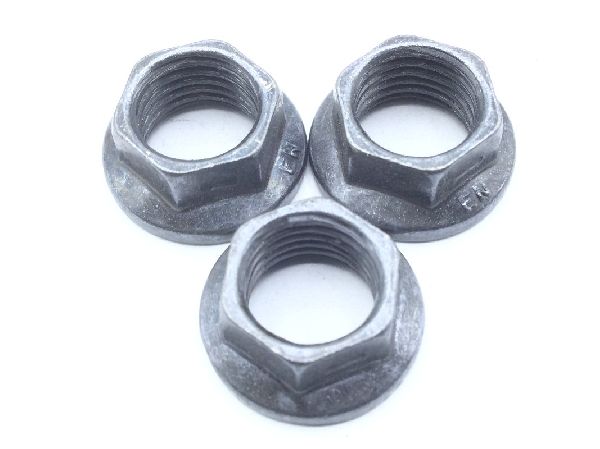

MS21042L6 Self-Locking Extended Washer Nut

MS21042L6 Self-Locking Extended Washer Nut (2)

MS21042L6 Self-Locking Extended Washer Nut (3)

MS21042L6 Self-Locking Extended Washer Nut (4)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS21042L6 Self-Locking Extended Washer Nut

Product Series: MS
ECCN: EAR99
Schedule: 8112.29.0000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Material

Steel

Surface Treatment

Class 3 federal specification single treatment response type 2 qq-p-416

Thread Class

3b

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.375 inches

Locking Feature: Prevailing torque all metal design
Nut Style: Hexagon
Overall Height: Between 0.267 inches and 0.282 inches
Specification Data: 26512-gn10u manufacturers standard
Tempurature Rating: 450 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 24
Washer Outside Diameter: 0.62 inches
Washer Thickness: 0.03 inches
Width Across Flats: Between 0.43 inches and 0.44 inches
Lubrication: Dry film lubricant
