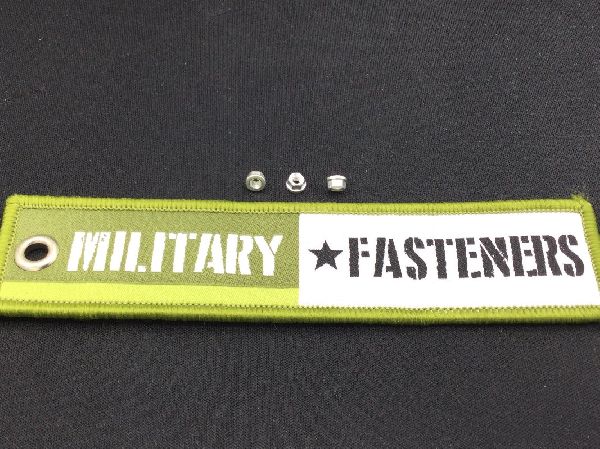

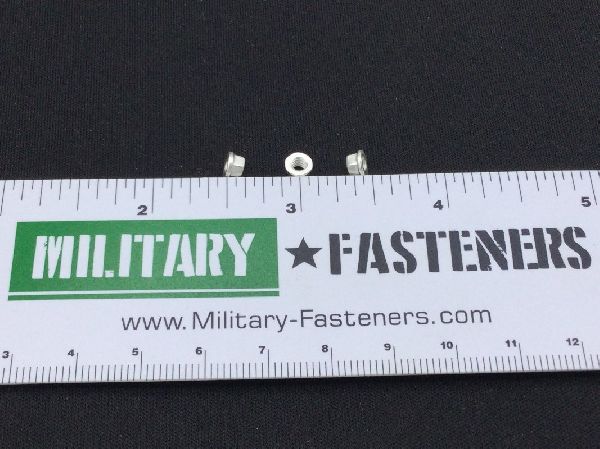

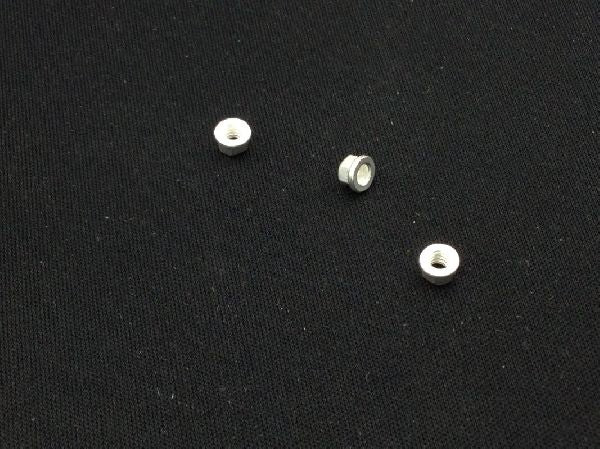

MS21043-04 Self-Locking Extended Washer Nut

MS21043-04 Self-Locking Extended Washer Nut (2)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS21043-04 Self-Locking Extended Washer Nut

Product Series: MS
ECCN: EAR99
Schedule: 8112.29.0000

Price per Unit $1.10

Units per Pack 50

Price per Pack $55.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $55.00

Add item to quote

Material

Iron alloy 660

Surface Treatment

Qq-s-365 federal specification single treatment response or ams 2410 assn standard single treatment response

Thread Class

Thread Series

Unjc

Thread Size

0.112 inches

Locking Feature: Prevailing torque all metal design
Material Specification: Ams 5525 assn standard single material response or ams 5735 assn standard single material response
Nut Style: Hexagon
Overall Height: Between 0.103 inches and 0.125 inches
Precious Material: Silver
Precious Material And Location: Silver
Tempurature Rating: 800 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 40
Washer Outside Diameter: 0.206 inches
Washer Thickness: 0.01 inches
Width Across Flats: Between 0.15 inches and 0.158 inches
Lubrication: Soluble lubricant
