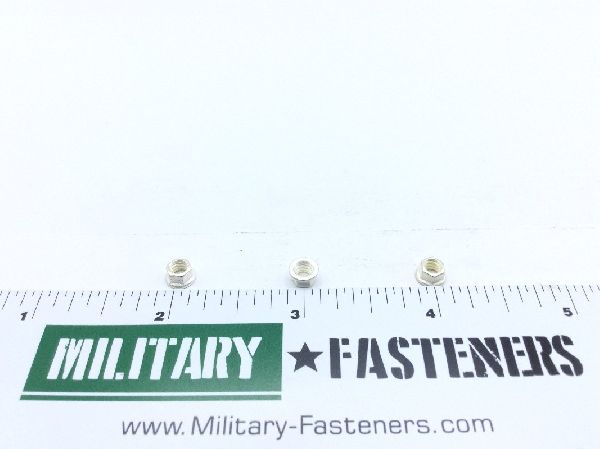

MS21043-06 Self-Locking Extended Washer Nut

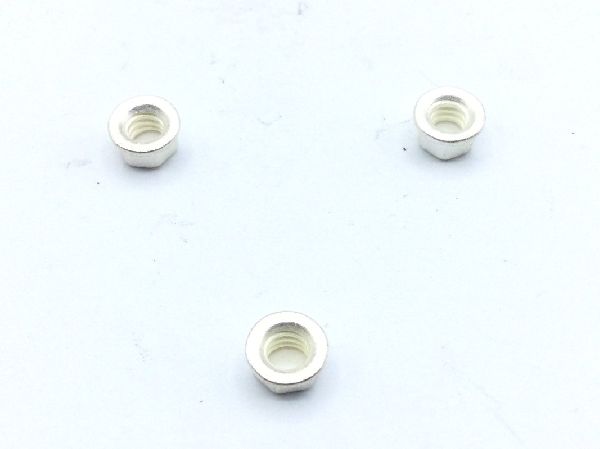

MS21043-06 Self-Locking Extended Washer Nut (2)
MS21043-06 Self-Locking Extended Washer Nut
MS21043-06 Self-Locking Extended Washer Nut (2)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS21043-06 Self-Locking Extended Washer Nut

Product Series
MS
ECCN
EAR99
Schedule
8112.29.0000
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Material
Iron alloy 660
Surface Treatment
Qq-s-365 federal specification single treatment response or ams 2410 assn standard single treatment response
Thread Class
3b
Thread Series
Unjc
Thread Size
0.138 inches
Locking Feature
Prevailing torque all metal design
Material Specification
Ams 5525 assn standard single material response or ams 5735 assn standard single material response
Nut Style
Hexagon
Overall Height
Between 0.115 inches and 0.141 inches
Precious Material And Location
External surface silver
Tempurature Rating
800.0 degrees fahrenheit
Thread Direction
Right-hand
Thread Qty Per Inch (tpi)
32
Washer Outside Diameter
0.244 inches
Washer Thickness
0.010 inches
Width Across Flats
Between 0.181 inches and 0.190 inches
Lubrication
Soluble lubricant
