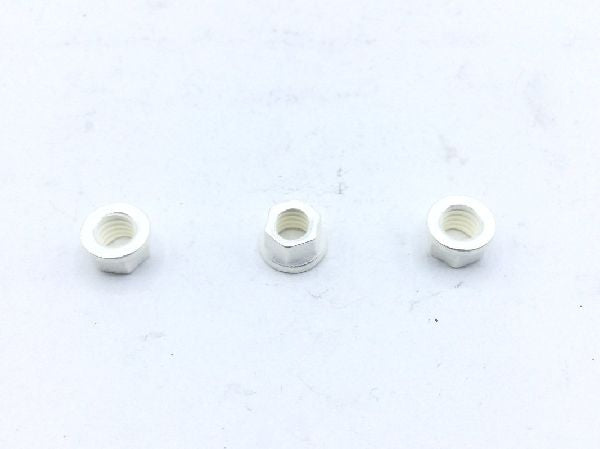

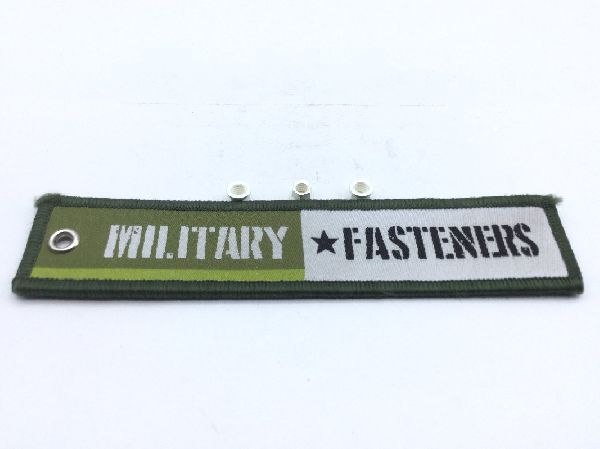

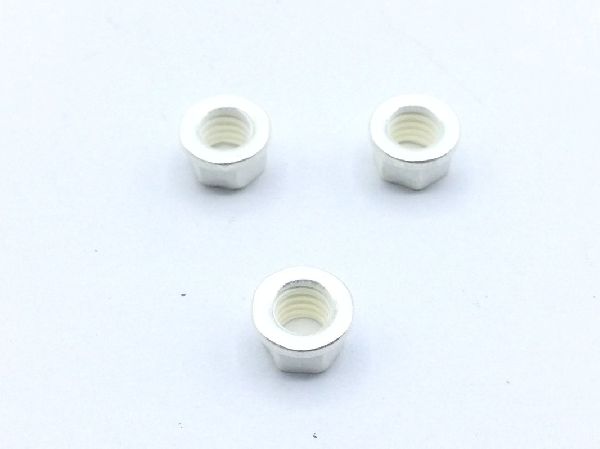

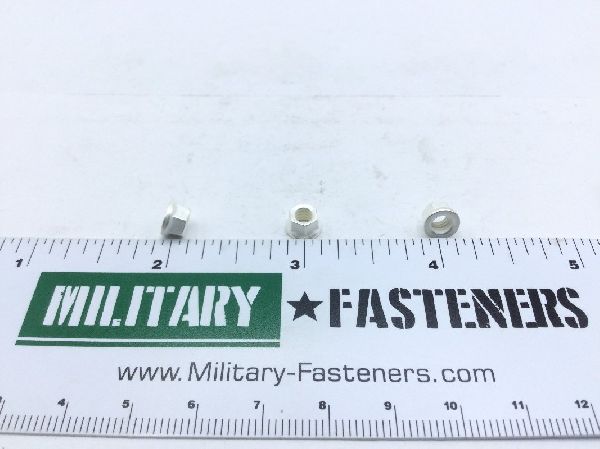

MS21043-08 Self-locking Extended Washer Nut

MS21043-08 Self-locking Extended Washer Nut (2)

MS21043-08 Self-locking Extended Washer Nut (3)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS21043-08 Self-locking Extended Washer Nut

Product Series: MS
ECCN: EAR99
Schedule: 8112.29.0000

Price per Unit $1.59

Units per Pack 25

Price per Pack $39.75

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $39.75

Add item to quote

Material

Iron alloy 660

Surface Treatment

Qq-s-365 federal specification single treatment response or 2410 assn standard single treatment response

Thread Class

Thread Series

Unjc

Thread Size

0.164 inches

Locking Feature: Prevailing torque all metal design
Material Specification: Ams 5525 assn standard single material response or ams 5735 assn standard single material response
Nut Style: Hexagon
Overall Height: Between 0.125 inches and 0.188 inches
Precious Material And Location: External surface silver
Tempurature Rating: 800.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Washer Outside Diameter: 0.290 inches
Washer Thickness: 0.015 inches
Width Across Flats: Between 0.213 inches and 0.221 inches
Lubrication: Soluble lubricant
