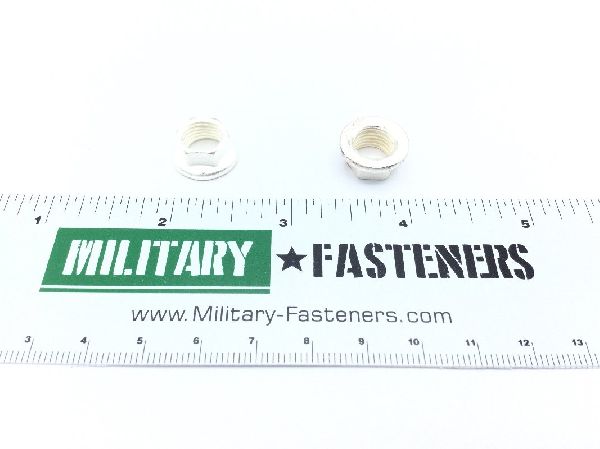

MS21043-6 Self-Locking Extended Washer Nut

Product Series: MS
ECCN: EAR99
Schedule: 8112.29.0000

Price per Unit $4.41

Units per Pack 10

Price per Pack $44.10

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $44.10

Add item to quote

Material

Iron

Surface Treatment

Qq-s-365 federal specification single treatment response or ams 2410 assn standard single treatment response

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.375 inches

Counterbore Diameter: 0.375 inches nut and 0.405 inches nut
Locking Feature: Prevailing torque all metal design
Material Specification: Ams 5525 assn standard single material response or ams 5731 assn standard single material response or ams 5732 assn standard single material response
Nut Counterbore Depth: 0.008 inches nut and 0.042 inches nut
Nut Style: Hexagon
Overall Height: Between 0.267 inches and 0.282 inches
Precious Material: Silver
Precious Material And Location: External surface silver
Tempurature Rating: 800.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 24
Washer Outside Diameter: 0.620 inches
Washer Thickness: 0.030 inches
Width Across Flats: Between 0.430 inches and 0.440 inches
Lubrication: Soluble lubricant
