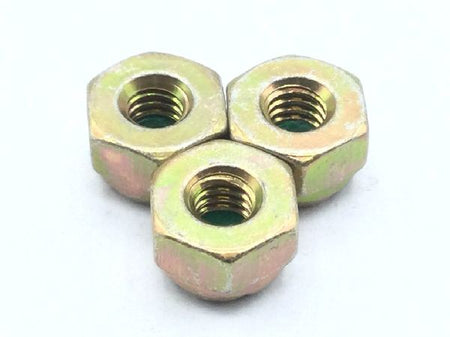

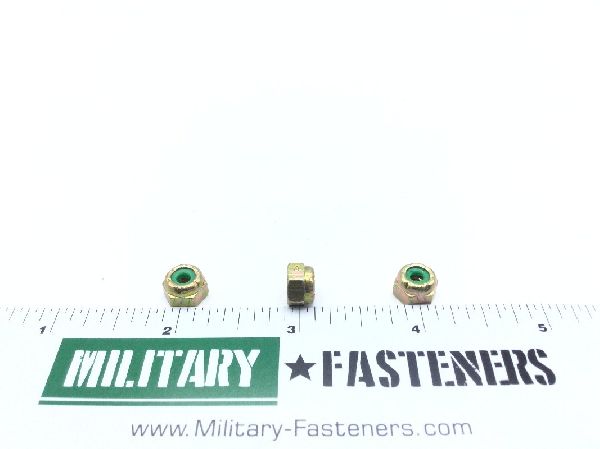

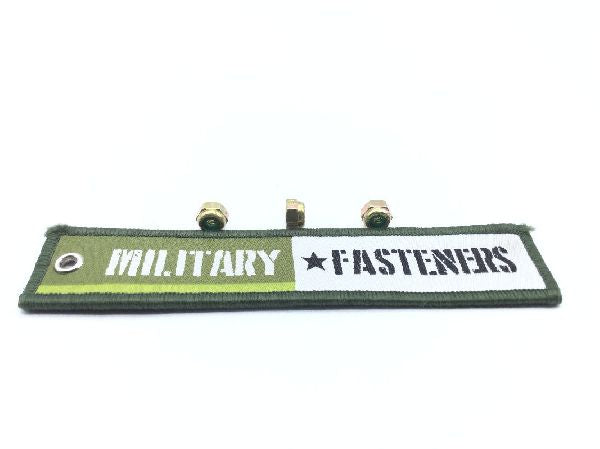

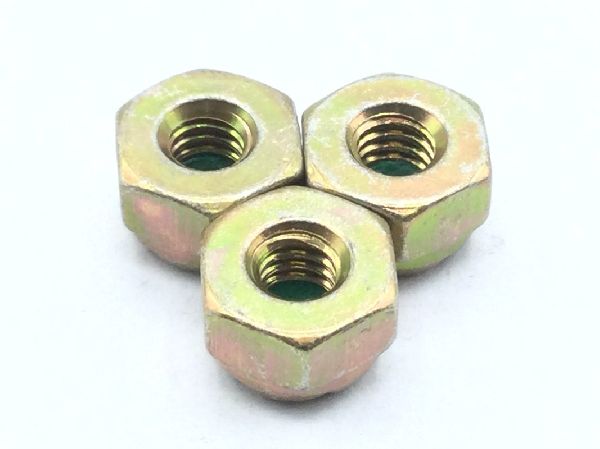

MS21044B08 Self-Locking Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $3.52

Units per Pack 10

Price per Pack $35.20

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $35.20

Add item to quote

Material

Copper alloy 360 nut or copper alloy 260 nut

Surface Treatment

Cl 3 federal specification single treatment response except insert type 2 qq-p-416

Thread Class

Thread Series

Unjc

Thread Size

0.164 inches

Bearing Surface Finish: 125.0 microinches
Bearing Surface Type: Chamfered or washer faced
Countersink Angle: 88.0 degrees nut
Locking Feature: Prevailing torque with nonmetallic insert
Nut Height: Between 0.219 inches and 0.281 inches
Nut Style: Hexagon
Tempurature Rating: 250.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Width Across Flats: Between 0.336 inches and 0.345 inches
Lubrication: Soluble lubricant
