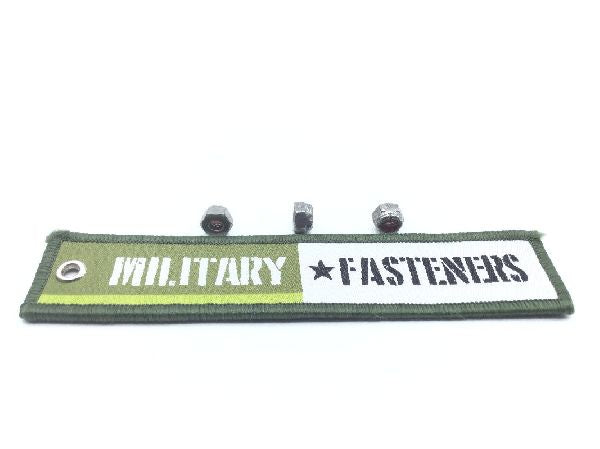

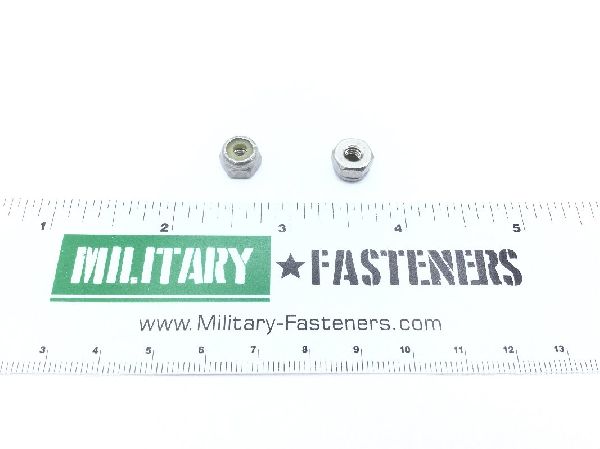

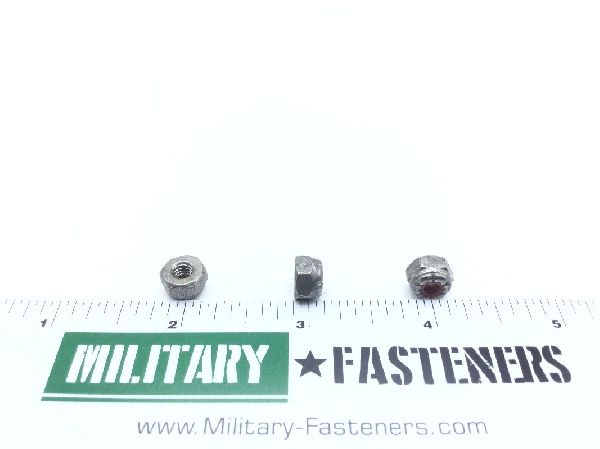

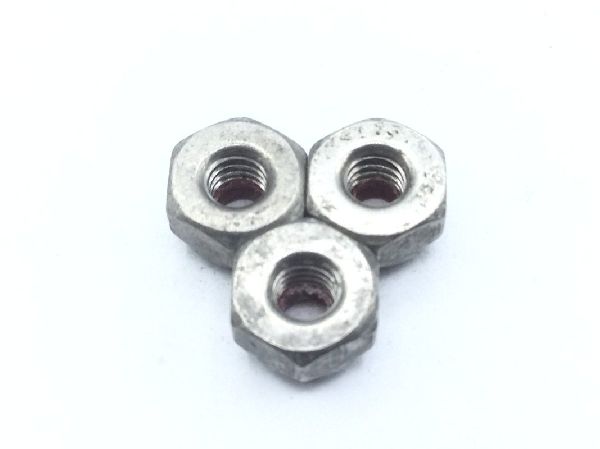

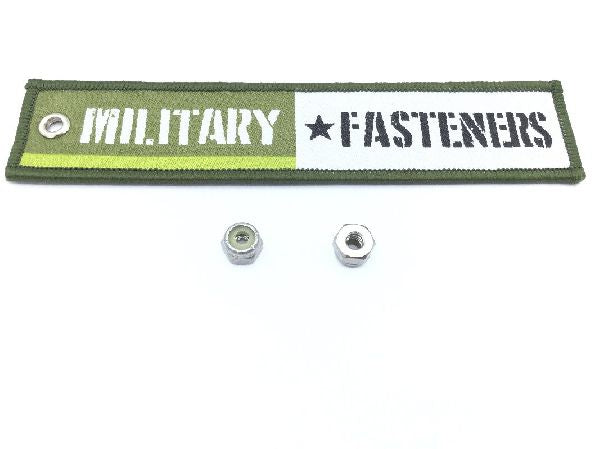

MS21044C08 Self-Locking Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $0.86

Units per Pack 50

Price per Pack $43.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $43.00

Add item to quote

Material

Steel

Surface Treatment

Qq-p-35 federal specification single treatment response except insert

Thread Class

Thread Series

Unjc

Thread Size

0.164 inches

Bearing Surface Type: Chamfered or washer faced
Countersink Angle: 88 degrees nut
Iii Bearing Surface Finish: 125 microinches
Iii End Application: Mrap - rg-33; mrap - m-atv w/cs13 pop and sne
Locking Feature: Prevailing torque with nonmetallic insert
Material Specification: Ams 5688 assn standard 1st material response or ams 5640 assn standard 2nd material response or ams 5647 assn standard 3rd material response nut
Nut Height: Between 0.219 inches and 0.281 inches
Nut Style: Hexagon
Tempurature Rating: 250 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Width Across Flats: Between 0.336 inches and 0.345 inches
Lubrication: Soluble lubricant
