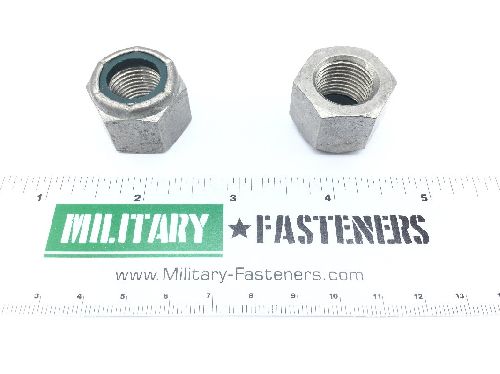

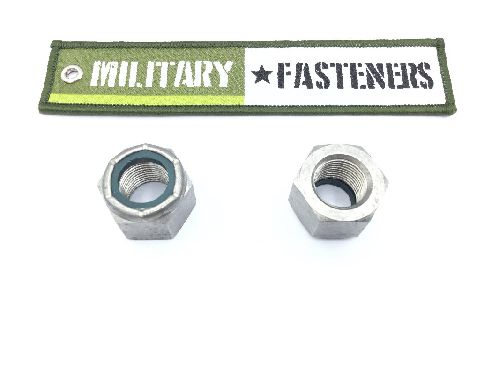

MS21044C10 Self-Locking Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel comp 302 nut or steel comp 303 nut or steel comp 304 nut

Thread Class

Thread Series

Unf (fine thread)

Thread Size

0.625 inches

Bearing Surface Finish: 125.0 microinches
Bearing Surface Type: Chamfered or washer faced
Counterbore Diameter: 0.636 inches nut and 0.676 inches nut
Countersink Angle: 88.0 degrees nut
Locking Feature: Prevailing torque with nonmetallic insert
Material Specification: Ams 5688 assn standard 1st material response nut or ams 5640 assn standard 2nd material response nut or ams 5647 assn standard 3rd material response nut
Nut Height: Between 0.732 inches and 0.766 inches
Nut Style: Hexagon
Tempurature Rating: 250.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 18
Width Across Flats: Between 0.928 inches and 0.940 inches
Lubrication: Soluble lubricant
