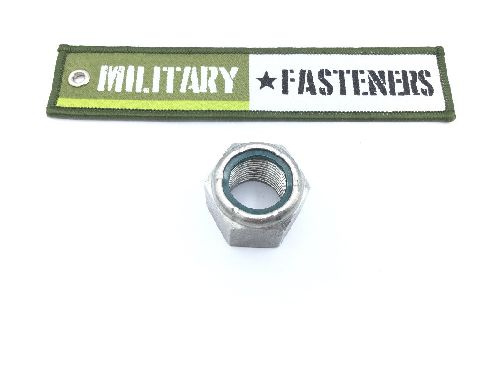

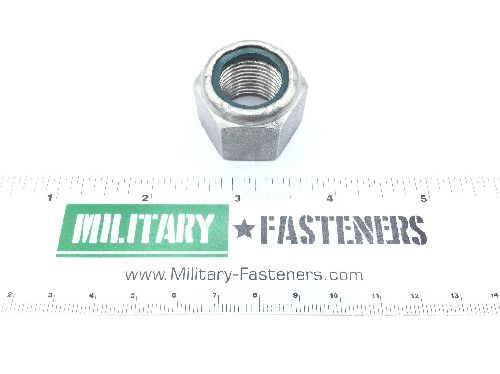

MS21044C12 Self-Locking Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $61.90

Units per Pack 1

Price per Pack $61.90

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $61.90

Add item to quote

Material

Steel comp 302 or steel comp 303 or steel comp 304 nut

Surface Treatment

Qq-p-35 federal specification single treatment response except insert

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.750 inches

Bearing Surface Finish: 125.0 microinches
Bearing Surface Type: Chamfered or washer faced
Countersink Angle: 88.0 degrees nut
End Application: Rg-33 auv mrap
Locking Feature: Prevailing torque with nonmetallic insert
Material Specification: Ams 5688 assn standard 1st material response or ams 5640 assn standard 2nd material response or ams 5647 assn standard 3rd material response nut
Nut Height: Between 0.855 inches and 0.891 inches
Nut Style: Hexagon
Tempurature Rating: 250.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 16
Width Across Flats: Between 1.052 inches and 1.064 inches
Lubrication: Soluble lubricant
