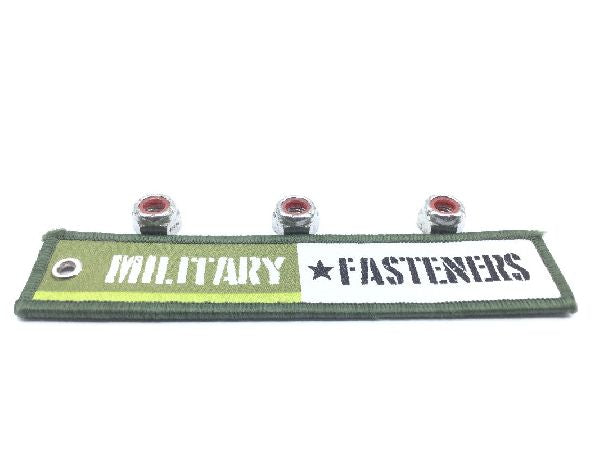

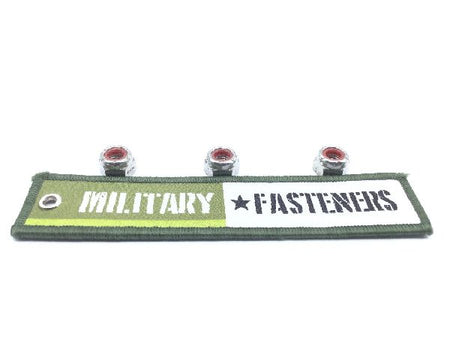

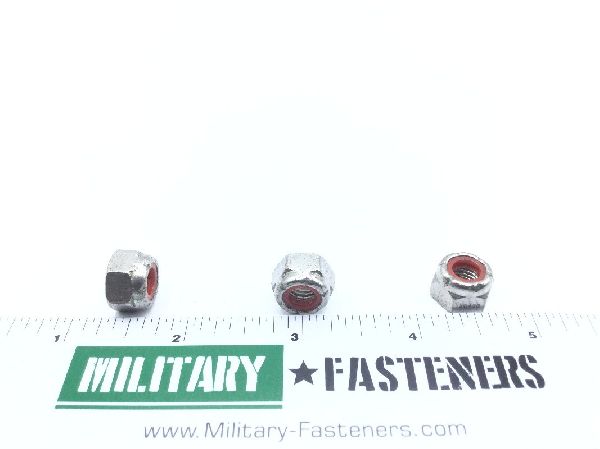

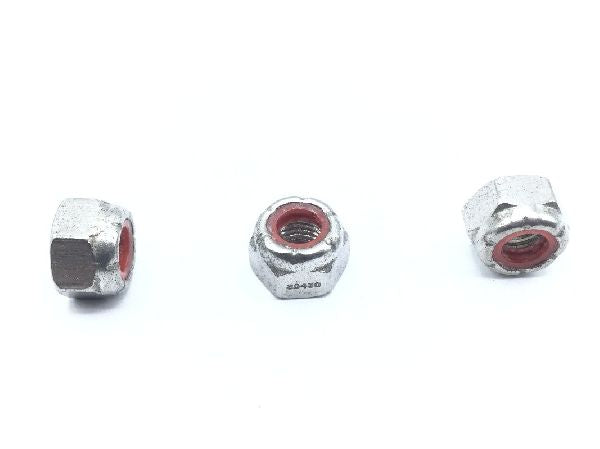

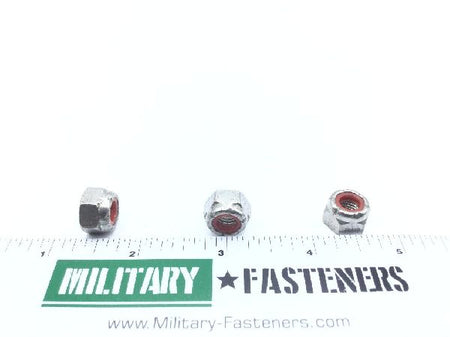

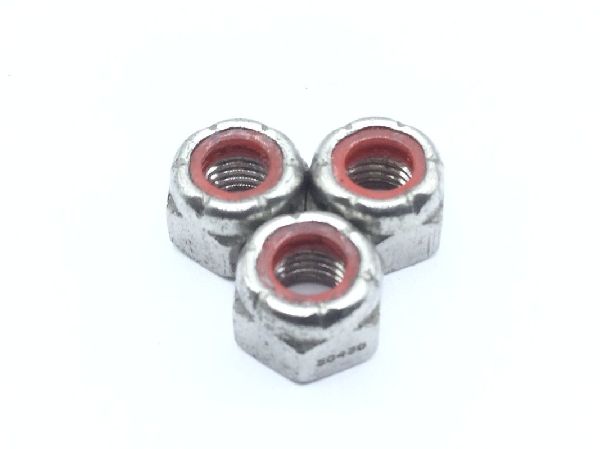

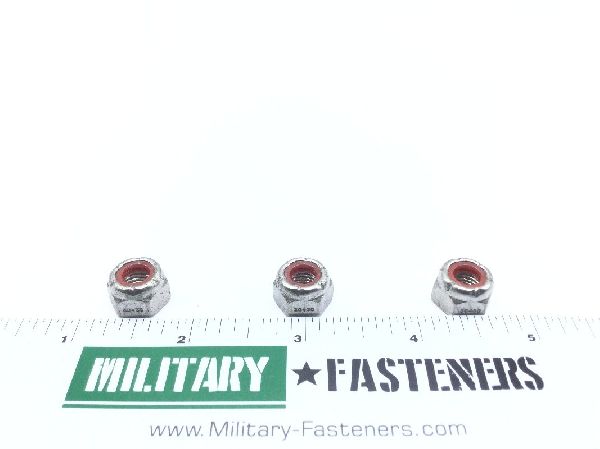

MS21044C5 Self-Locking Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel

Surface Treatment

Qq-p-35 federal specification single treatment response except insert

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.312 inches

Bearing Surface Finish: 125.0 microinches
Bearing Surface Type: Chamfered or washer faced
Countersink Angle: 88.0 degrees nut
Locking Feature: Prevailing torque with nonmetallic insert
Material Specification: Ams 5688 assn standard 1st material response nut or ams 5640 assn standard 2nd material response nut or ams 5647 assn standard 3rd material response nut
Nut Height: Between 0.271 inches and 0.360 inches
Nut Style: Hexagon
Tempurature Rating: 250.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 24
Width Across Flats: Between 0.492 inches and 0.502 inches
Lubrication: Soluble lubricant
