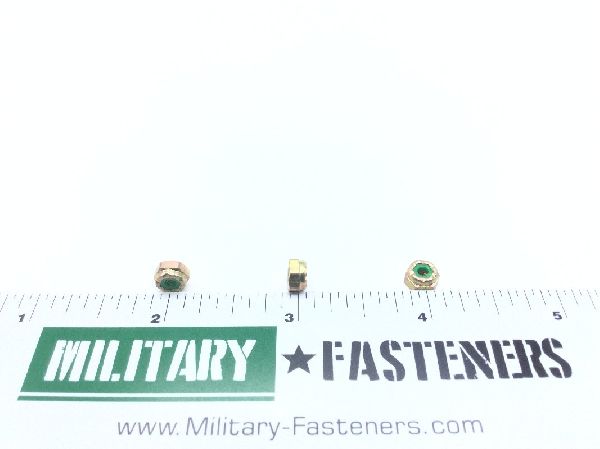

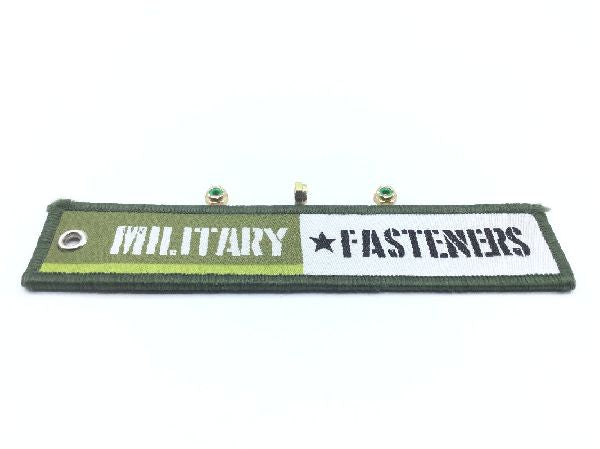

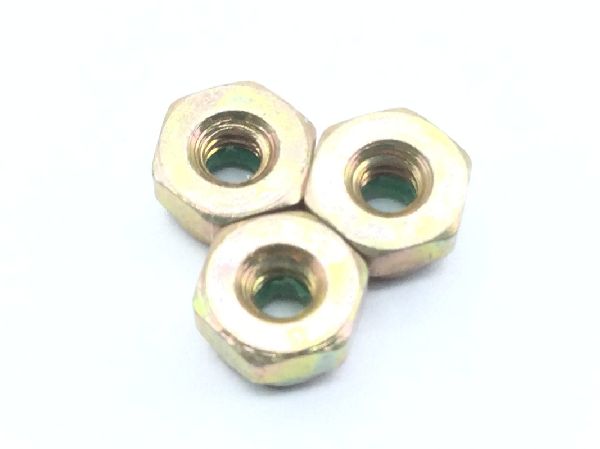

MS21044N04 Self-Locking Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $1.76

Units per Pack 50

Price per Pack $88.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $88.00

Add item to quote

Material

Steel nut

Surface Treatment

Cl 3 federal specification single treatment response nut type 2 qq-p-416

Thread Class

Thread Series

Unc (coarse thread)

Thread Size

0.112 inches

Bearing Surface Finish: 125.0 microinches
Bearing Surface Type: Chamfered or washer faced
Counterbore Diameter: 0.116 inches nut and 0.156 inches nut
Countersink Angle: 88.0 degrees nut
End Application: ec- mc-130h ( ac-130h aircraft an/uya-4(v) tactical data system
Locking Feature: Prevailing torque with nonmetallic insert
Nut Height: Between 0.133 inches and 0.157 inches
Nut Style: Hexagon
Tempurature Rating: 250.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 40
Width Across Flats: Between 0.243 inches and 0.251 inches
Lubrication: Soluble lubricant
