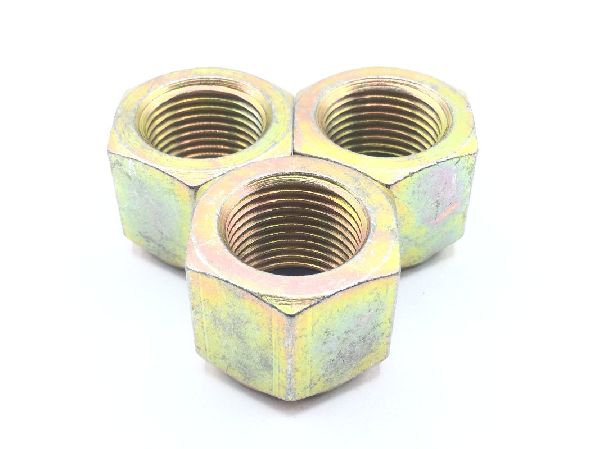

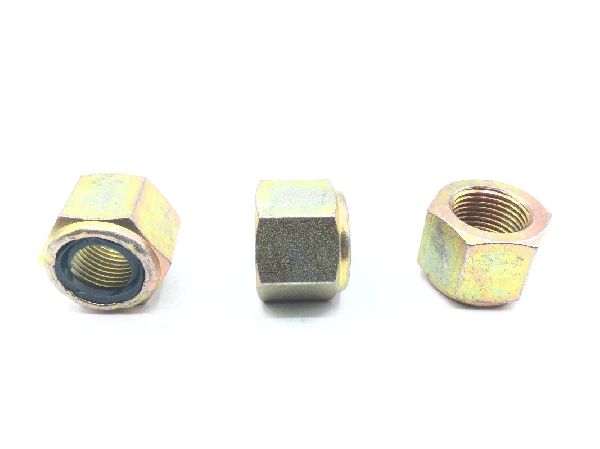

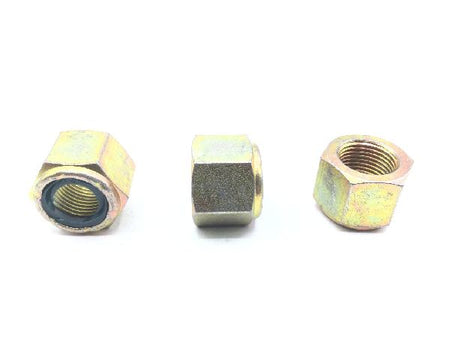

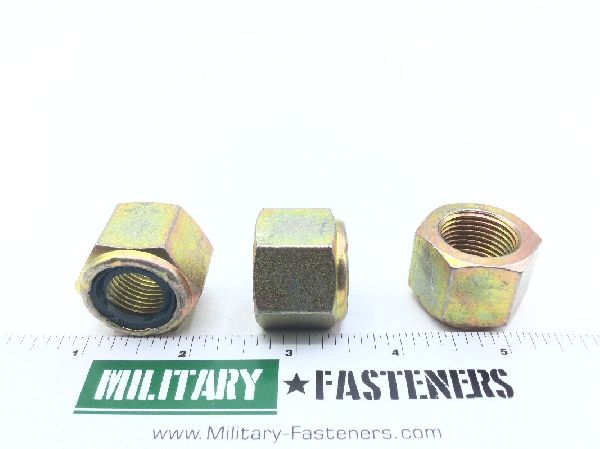

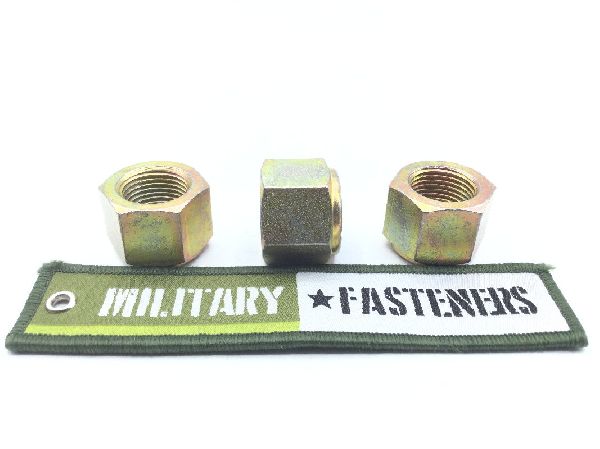

MS21044N12 Self-Locking Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel comp 1006 nut or steel comp 1008 nut or steel comp 1009 nut or steel comp 1010 nut or steel comp 1015 nut or steel comp 1018 nut or steel comp 1035 nut or steel comp 11l37 nut or steel comp 1213 nut or steel comp 12l14 nut

Surface Treatment

Cl 3 federal specification single treatment response except insert type 2 qq-p-416

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.750 inches

Bearing Surface Finish: 125.0 microinches
Bearing Surface Type: Chamfered or washer faced
Countersink Angle: 88.0 degrees nut
Locking Feature: Prevailing torque with nonmetallic insert
Nut Height: Between 0.855 inches and 0.891 inches
Nut Style: Hexagon
Tempurature Rating: 250.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 16
Width Across Flats: Between 1.052 inches and 1.064 inches
Lubrication: Soluble lubricant
