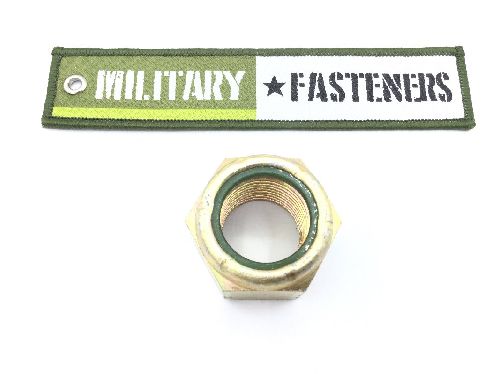

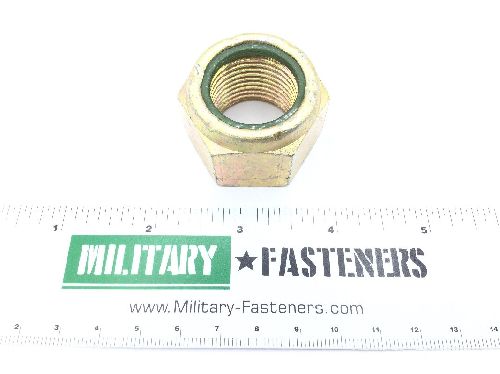

MS21044N16 Self-Locking Hexagon Nut

Product Series: MS
ECCN: 9A991
Schedule: 7318.16.0085

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel comp

Surface Treatment

Cl 3 federal specification single treatment response nut type 2 qq-p-416

Thread Class

Thread Series

Unf (fine thread)

Thread Size

1.000 inches

Bearing Surface Finish: 125 microinches
Bearing Surface Type: Chamfered or washer faced
Counterbore Diameter: 1.024 inches and 1.064 inches
Countersink Angle: 88 degrees
Locking Feature: Prevailing torque with nonmetallic insert
Nut Height: Between 1.010 inches and 1.141 inches
Nut Style: Hexagon
Tempurature Rating: 250.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 12
Width Across Flats: Between 1.427 inches and 1.440 inches
Lubrication: Soluble lubricant
