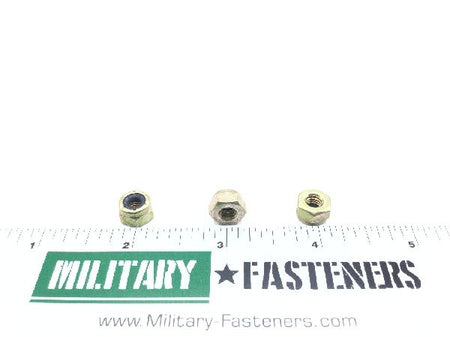

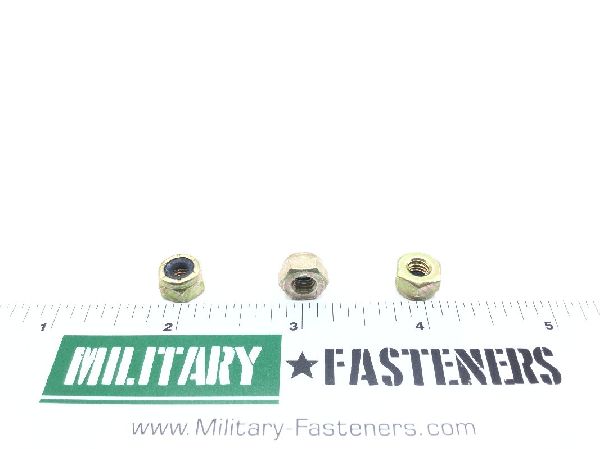

MS21044N3 Self-locking Hexagon Nut

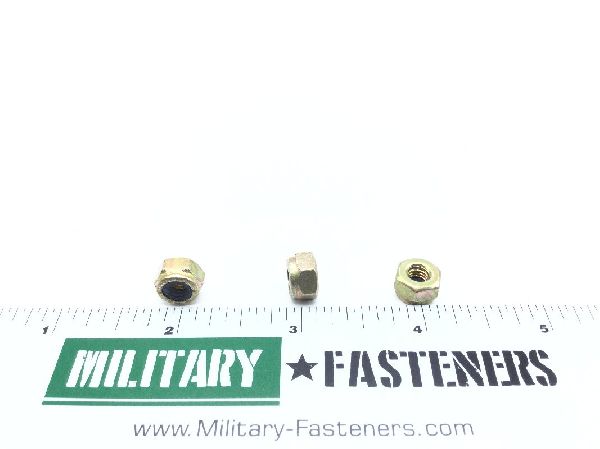

MS21044N3 Self-locking Hexagon Nut (2)

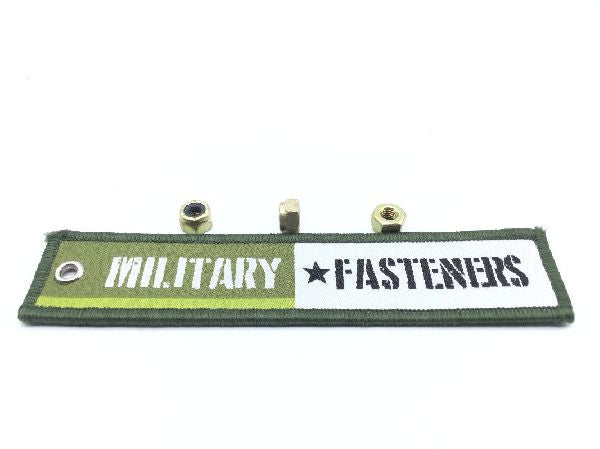

MS21044N3 Self-locking Hexagon Nut (3)

MS21044N3 Self-locking Hexagon Nut (4)

MS21044N3 Self-locking Hexagon Nut (5)

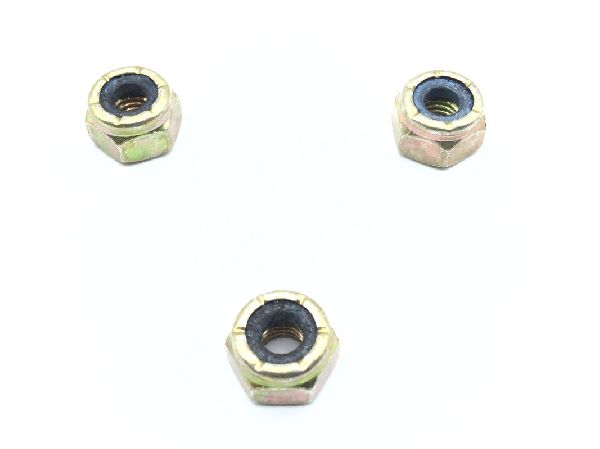

MS21044N3 Self-locking Hexagon Nut (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS21044N3 Self-locking Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $0.35

Units per Pack 100

Price per Pack $35.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $35.00

Add item to quote

Material

Steel comp

Surface Treatment

Class 3 federal specification single treatment response except insert type 2 qq-p-416

Thread Class

3b

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.190 inches

Countersink Angle: 88 degrees
Locking Feature: Prevailing torque with nonmetallic insert
Nut Height: Between 0.208 in and 0.281 in
Nut Style: Hexagon
Surface Finish: 125 microinches
Surface Type: Chamfered or washer faced
Tempurature Rating: 250 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Width Across Flats: Between 0.367 in and 0.376 in
Lubrication: Soluble lubricant
