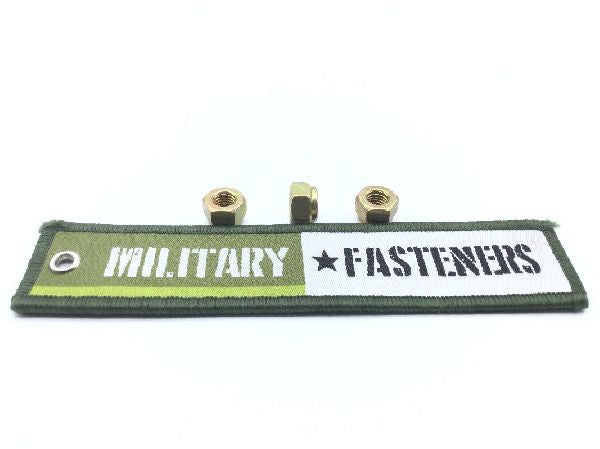

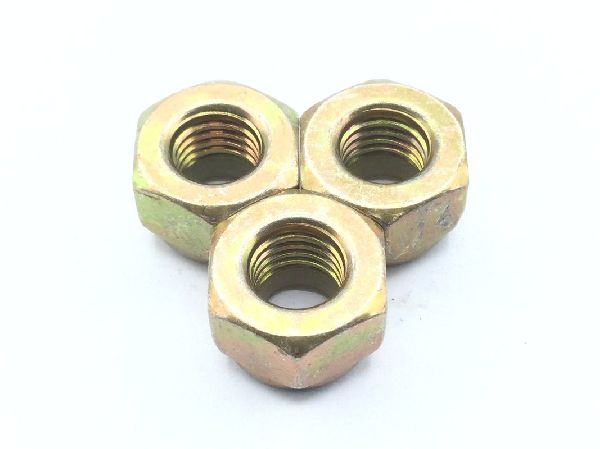

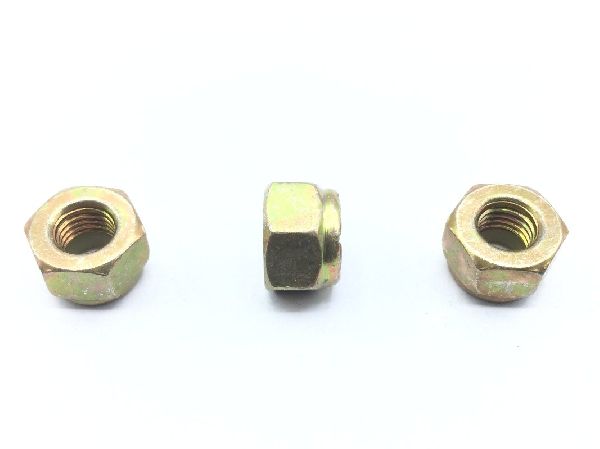

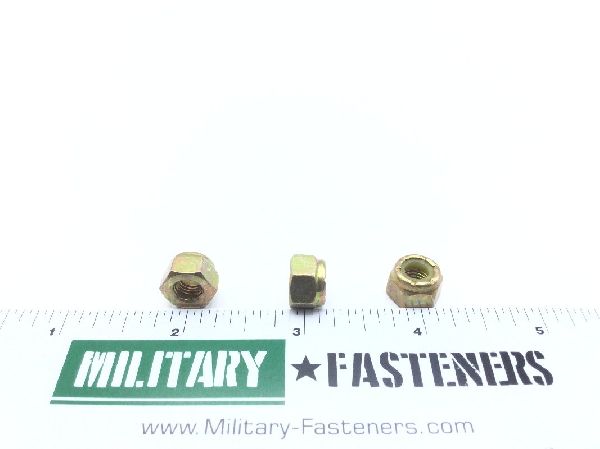

MS21044N4 Self-locking Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel

Surface Treatment

Cl 3 federal specification single treatment response nut type 2 qq-p-416

Thread Class

Thread Series

Unf (fine thread)

Thread Size

0.250 inches

Bearing Surface Finish: 125.0 microinches
Bearing Surface Type: Chamfered or washer faced
Counterbore Diameter: 0.253 inches nut and 0.293 inches nut
Countersink Angle: 88.0 degrees nut
Locking Feature: Prevailing torque with nonmetallic insert
Nut Height: Between 0.240 inches and 0.360 inches
Nut Style: Hexagon
Tempurature Rating: 250.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 28
Width Across Flats: Between 0.430 inches and 0.439 inches
Lubrication: Soluble lubricant
