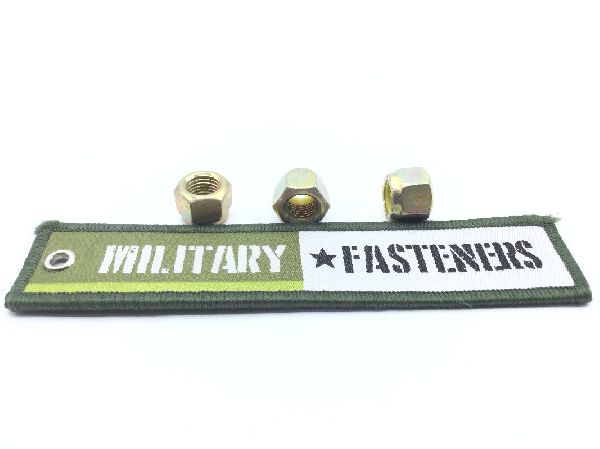

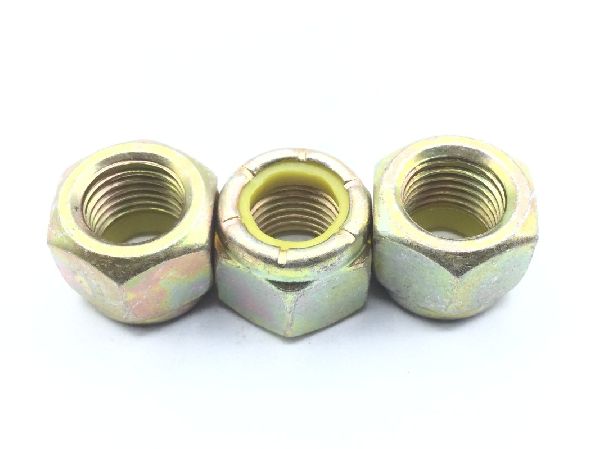

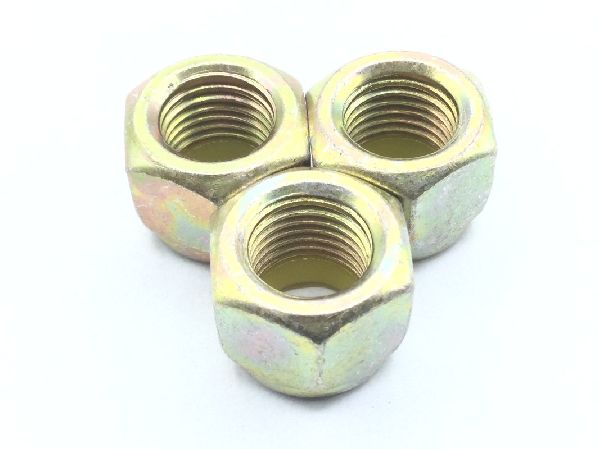

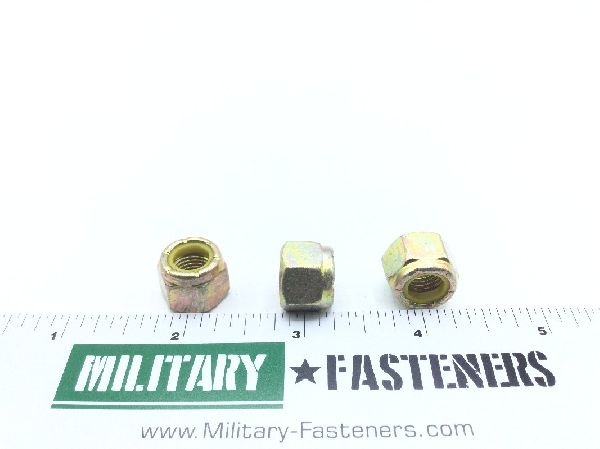

MS21044N6 Self-Locking Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $0.76

Units per Pack 50

Price per Pack $38.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $38.00

Add item to quote

Material

Steel comp

Surface Treatment

Class 3 federal specification single treatment response except insert type 2 qq-p-416

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.375 inches

Bearing Surface Finish: 125 microinches
Bearing Surface Type: Chamfered or washer faced
Countersink Angle: 88 degrees
Locking Feature: Prevailing torque with nonmetallic insert
Nut Height: Between 0.318 inches and 0.469 inches
Nut Style: Hexagon
Tempurature Rating: 250 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 24
Width Across Flats: Between 0.553 inches and 0.564 inches
Lubrication: Soluble lubricant
