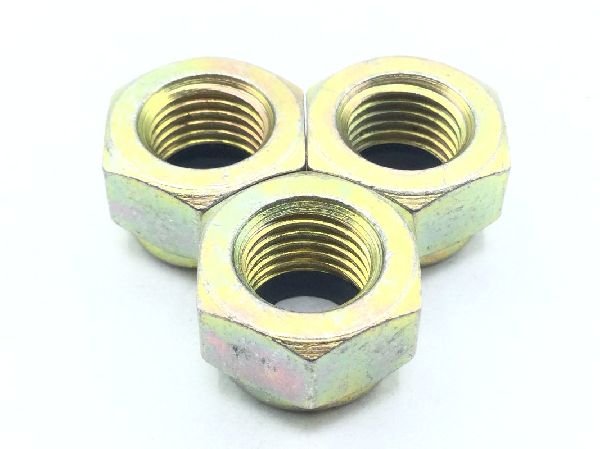

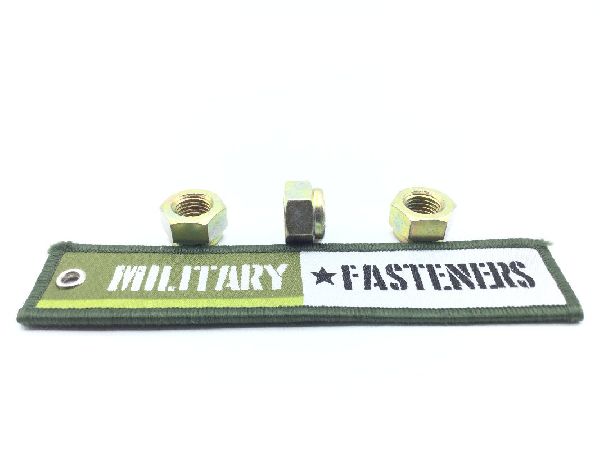

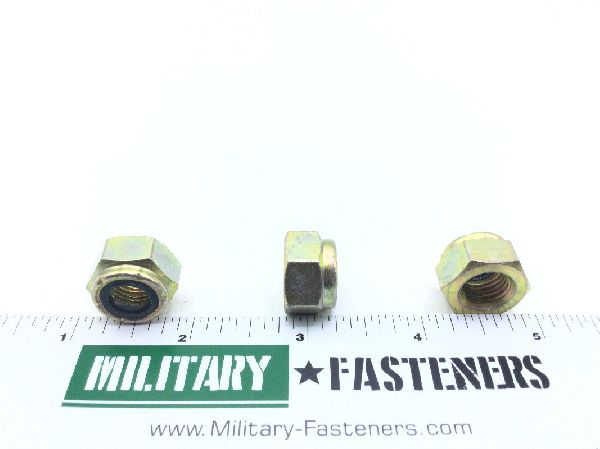

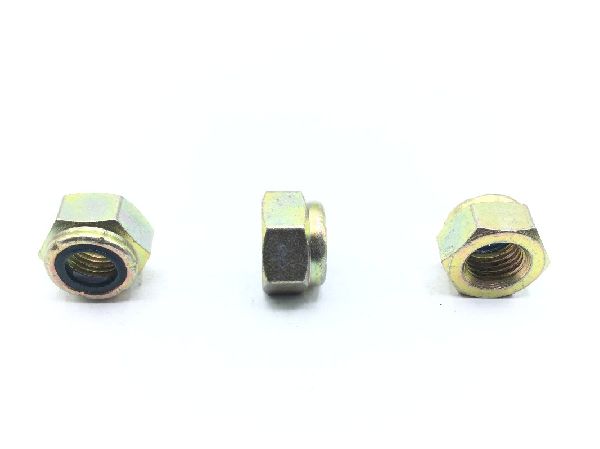

MS21044N7 Self-Locking Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel comp

Surface Treatment

Cl 3 federal specification single treatment response except insert type 2 qq-p-416

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.438 inches

Bearing Surface Finish: 125.0 microinches
Bearing Surface Type: Chamfered or washer faced
Countersink Angle: 88.0 degrees nut
Criticality Code Justification: Feat
Locking Feature: Prevailing torque with nonmetallic insert
Nut Height: Between 0.435 inches and 0.469 inches
Nut Style: Hexagon
Special Features: Weapon system essential
Tempurature Rating: 250 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 20
Width Across Flats: Between 0.679 inches and 0.690 inches
Lubrication: Soluble lubricant
