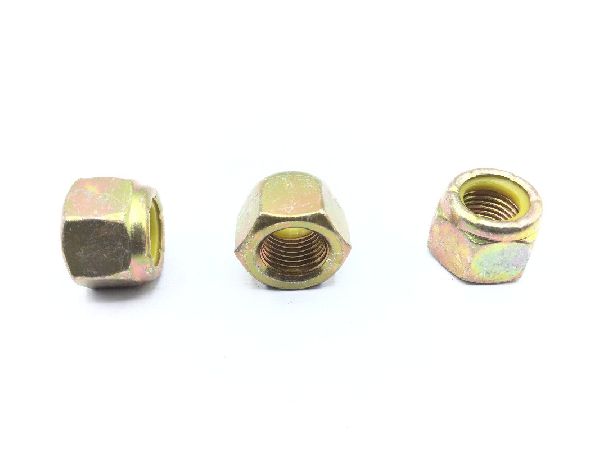

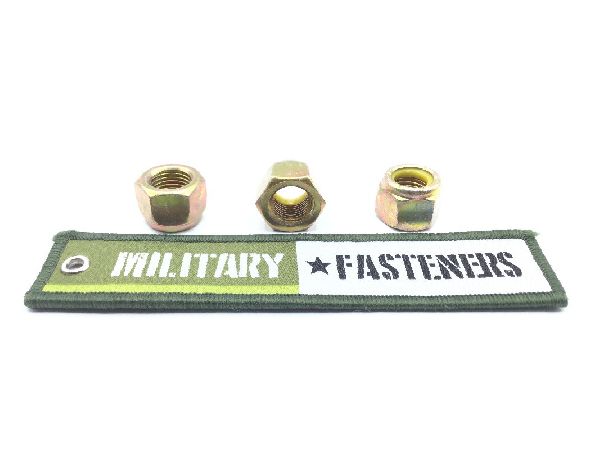

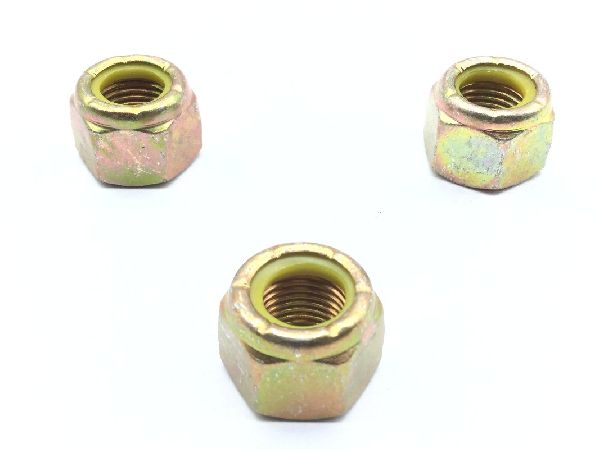

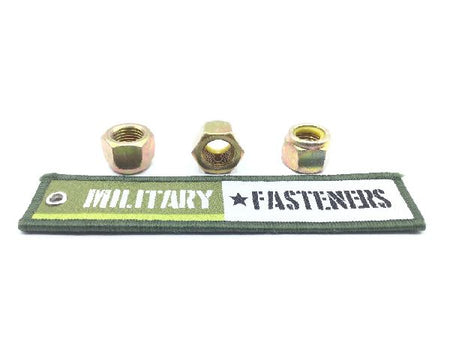

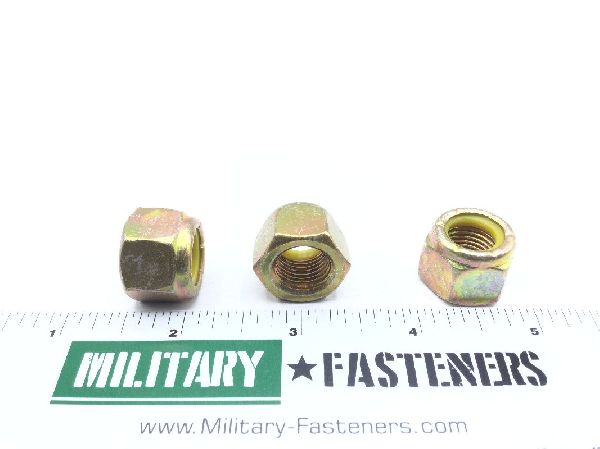

MS21044N8 Self-Locking Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $1.94

Units per Pack 25

Price per Pack $48.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $48.50

Add item to quote

Material

Steel comp

Surface Treatment

Class 3 federal specification single treatment response nut type 2 qq-p-416

Thread Class

Thread Series

Unf (fine thread)

Thread Size

0.500 inches

Bearing Surface Finish: 125.0 microinches
Bearing Surface Type: Chamfered or washer faced
Counterbore Diameter: 0.511 inches and 0.551 inches
Countersink Angle: 88.0 degrees
Locking Feature: Prevailing torque with nonmetallic insert
Nut Height: Between 0.575 inches and 0.610 inches
Nut Style: Hexagon
Tempurature Rating: 250 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 20
Width Across Flats: Between 0.741 inches and 0.752 inches
Lubrication: Soluble lubricant
