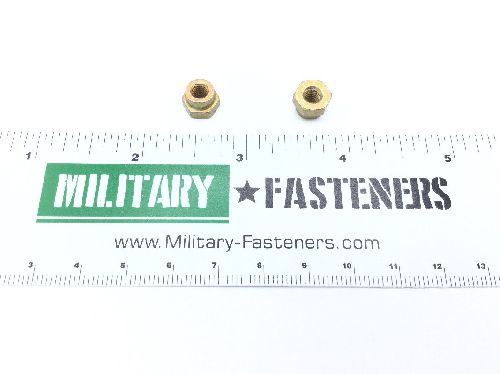

MS21045-08E Self-Locking Hexagon Nut

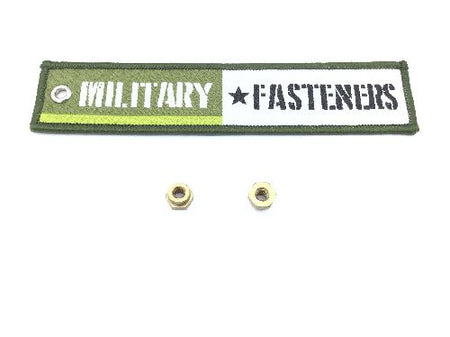

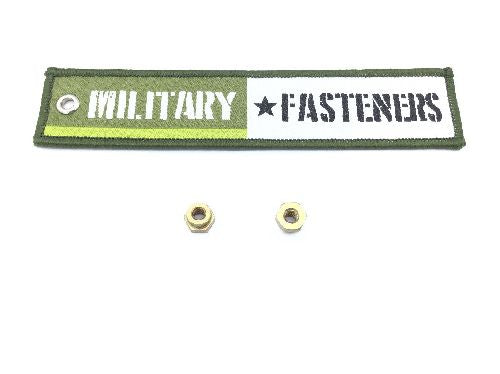

MS21045-08E Self-Locking Hexagon Nut (2)
MS21045-08E Self-Locking Hexagon Nut (3)
MS21045-08E Self-Locking Hexagon Nut
MS21045-08E Self-Locking Hexagon Nut (2)
MS21045-08E Self-Locking Hexagon Nut (3)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS21045-08E Self-Locking Hexagon Nut

Product Series
MS
ECCN
EAR99
Schedule
7318.16.0000
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Material
Steel
Surface Treatment
cl 2 federal specification single treatment response ty ii qq-p-416
Thread Class
3b
Thread Series
Unjc
Thread Size
0.164 inches
Bearing Surface Type
Chamfered
Hardness Rating
36.0 rockwell c
Locking Feature
Free-running all metal design
Nut Height
Between 0.219 inches and 0.250 inches
Nut Style
Hexagon
Special Features
Elliptical lock
Tempurature Rating
450.0 degrees fahrenheit
Thread Direction
Right-hand
Thread Qty Per Inch (tpi)
32
Width Across Flats
Between 0.336 inches and 0.345 inches
