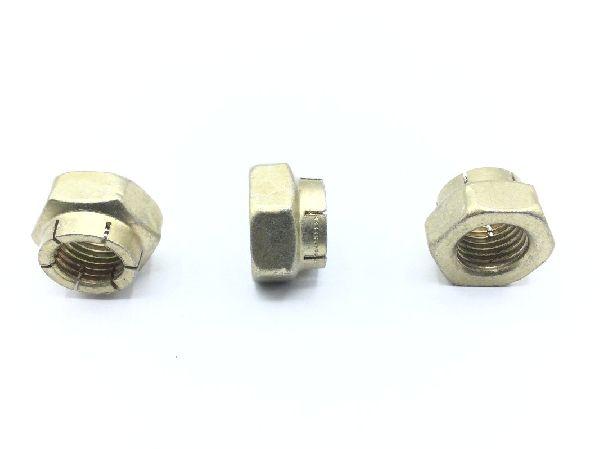

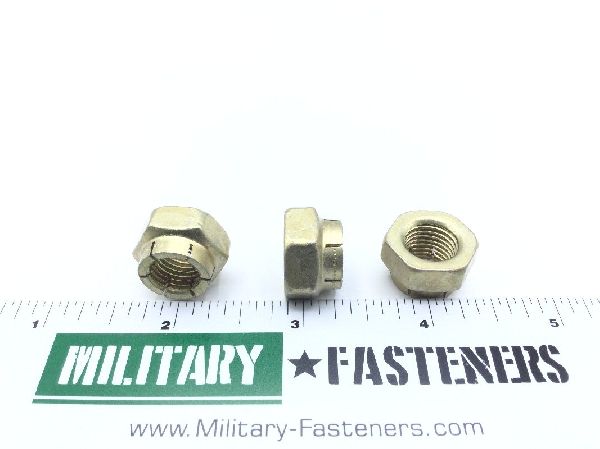

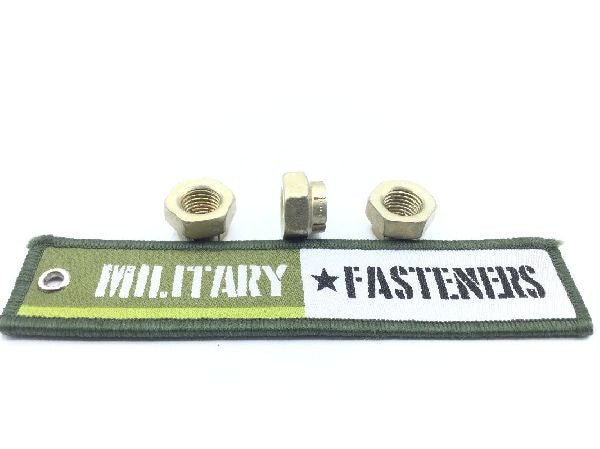

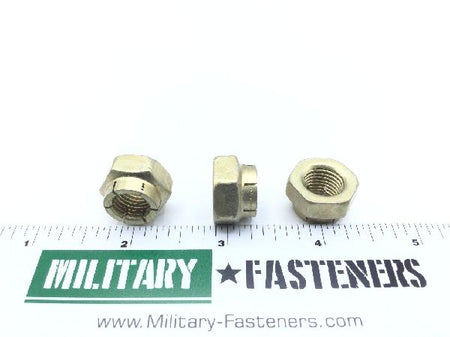

MS21045-7 Self-locking Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $4.16

Units per Pack 10

Price per Pack $41.60

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $41.60

Add item to quote

Material

Steel

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.438 inches

Bearing Surface Finish: 125.0 microinches
Bearing Surface Type: Chamfered or washer faced
Countersink Angle: 88.0 degrees nut
Locking Feature: Prevailing torque all metal design
Nut Height: Between 0.435 inches and 0.469 inches
Nut Style: Hexagon
Tempurature Rating: 450.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 20
Width Across Flats: Between 0.679 inches and 0.690 inches
Lubrication: Soluble lubricant
