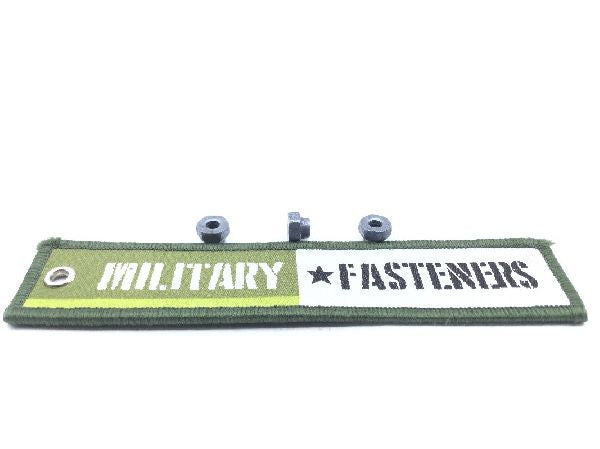

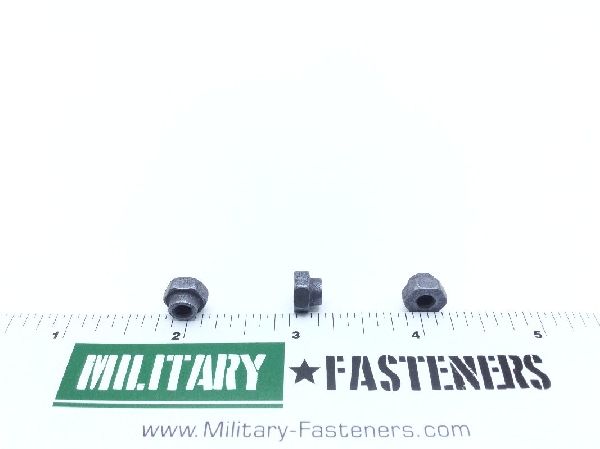

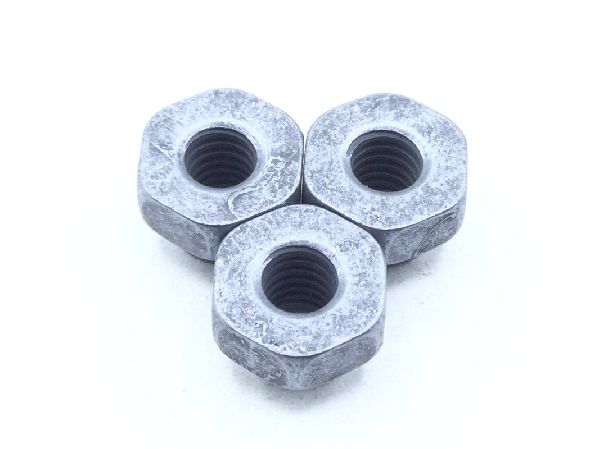

MS21045C08 Self-Locking Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Stainless Steel

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Thread Series

Unjc

Thread Size

0.164 inches

Bearing Surface Finish: 125.0 microinches
Bearing Surface Type: Chamfered or washer faced
Countersink Angle: 88.0 degrees nut
Locking Feature: Prevailing torque all metal design
Nut Height: Between 0.219 inches and 0.250 inches
Nut Style: Hexagon
Tempurature Rating: 450.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Width Across Flats: Between 0.336 inches and 0.345 inches
Lubrication: Dry film lubricant
