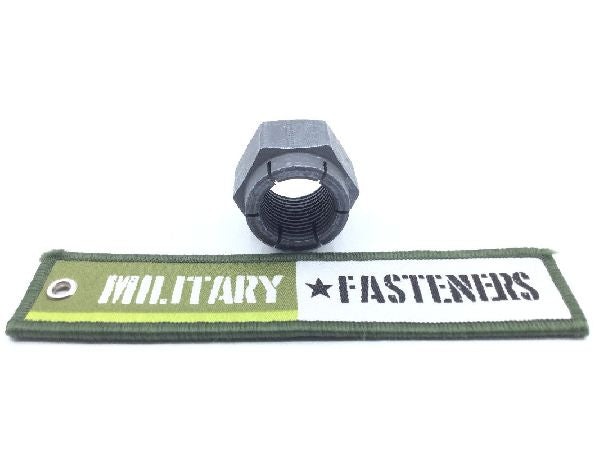

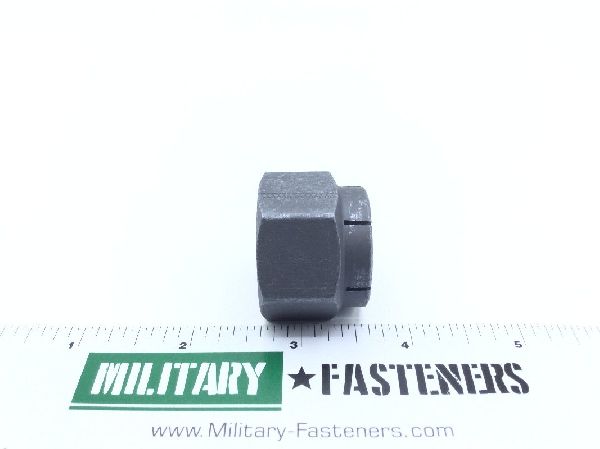

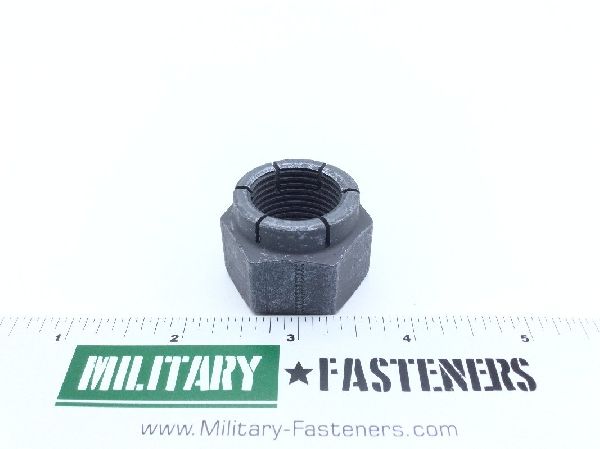

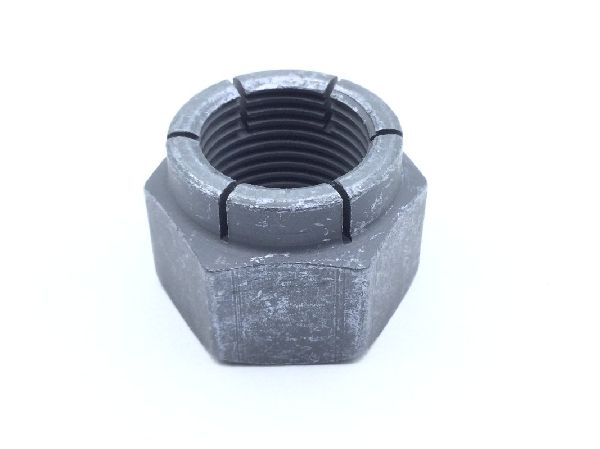

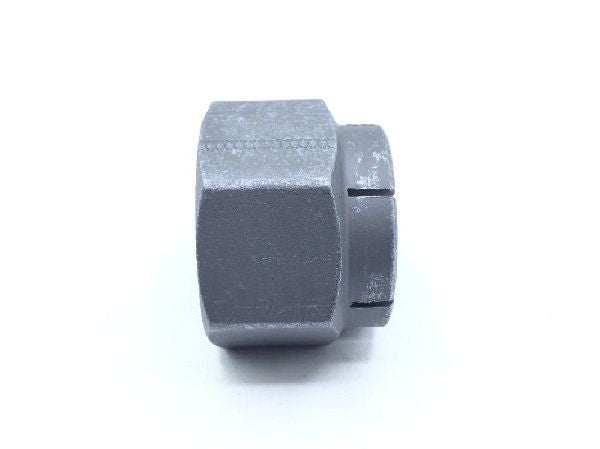

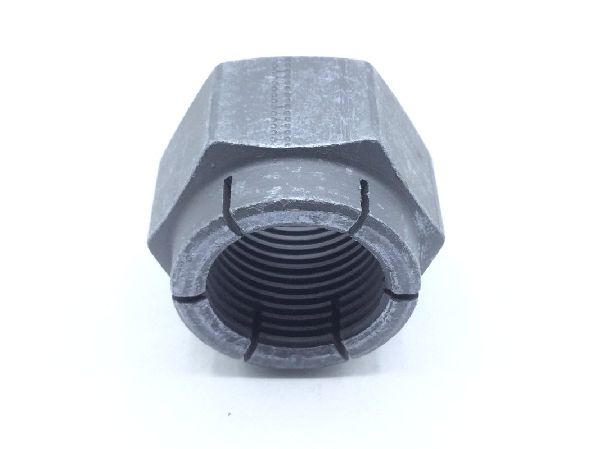

MS21045C14 Self-Locking Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0000

Price per Unit $80.31

Units per Pack 1

Price per Pack $80.31

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $80.31

Add item to quote

Material

Stainless Steel

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.875 inches

Bearing Surface Finish: 125.0 microinches
Bearing Surface Type: Chamfered or washer faced
Countersink Angle: 88.0 degrees
Departure From Cited Designator: As mod by material which must conform to ships parts control center special quality control provisions
Locking Feature: Prevailing torque all metal design
Nut Height: Between 0.965 inches and 1.016 inches
Nut Style: Hexagon
Special Test Features: Special quality control testing
Tempurature Rating: 450.0 degrees fahrenheit
Test Data Document: Etc.).
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 14
Width Across Flats: Between 1.239 inches and 1.252 inches
Lubrication: Dry film lubricant
