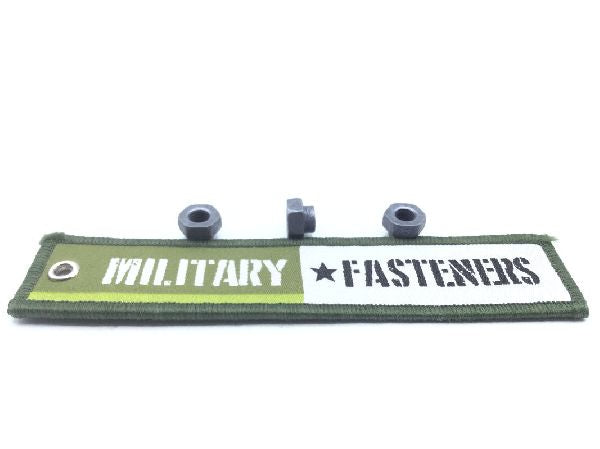

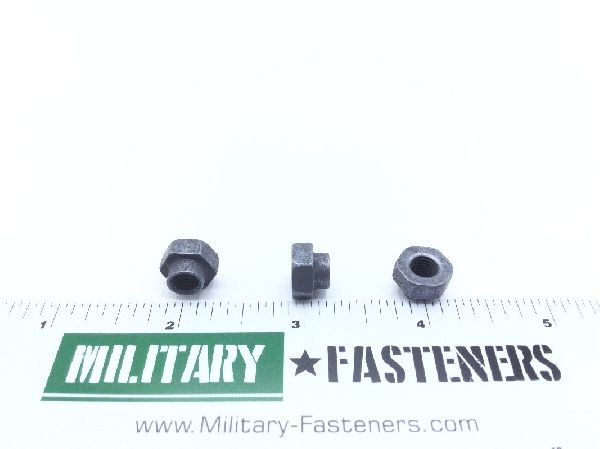

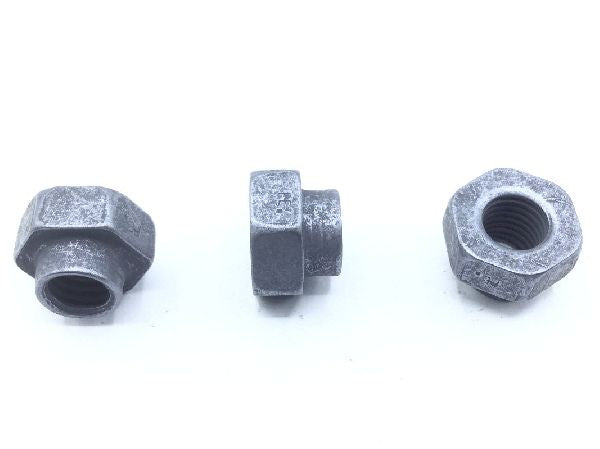

MS21045C4 Self-Locking Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Stainless Steel

Thread Class

Thread Series

Unf (fine thread)

Thread Size

0.250 inches

Counterbore Diameter: 0.253 inches and 0.293 inches
Countersink Angle: 88 degrees
Locking Feature: Prevailing torque all metal design
Nut Height: Between 0.240 inches and 0.328 inches
Nut Style: Hexagon
Surface Finish: 125.0 microinches
Surface Type: Chamfered or washer faced
Tempurature Rating: 450 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 28
Width Across Flats: Between 0.430 inches and 0.439 inches
Lubrication: Dry film lubricant
