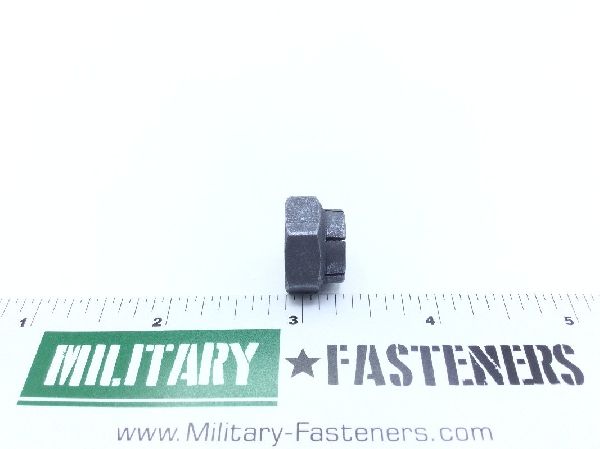

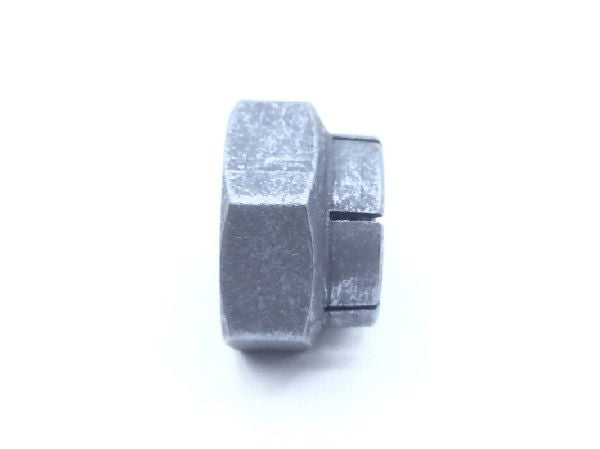

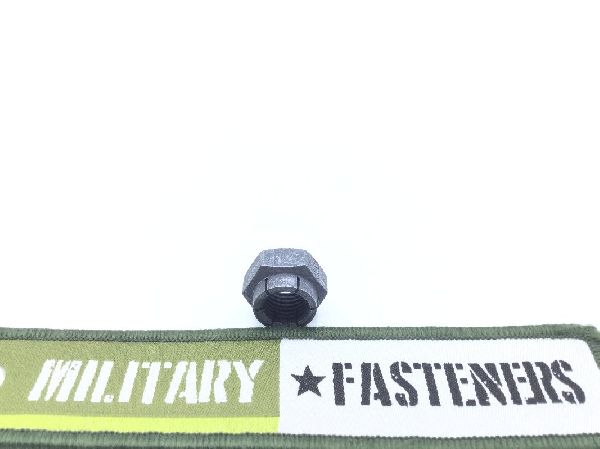

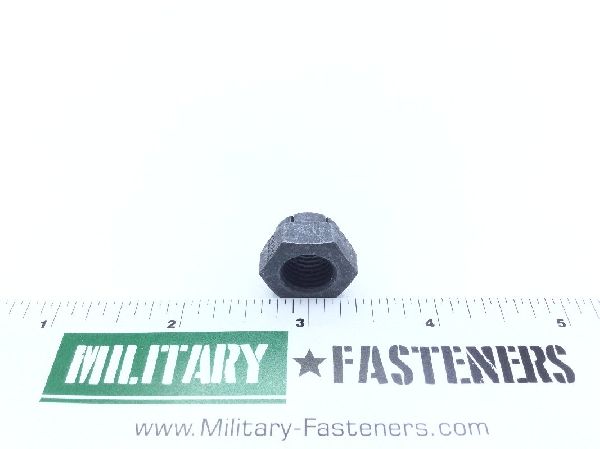

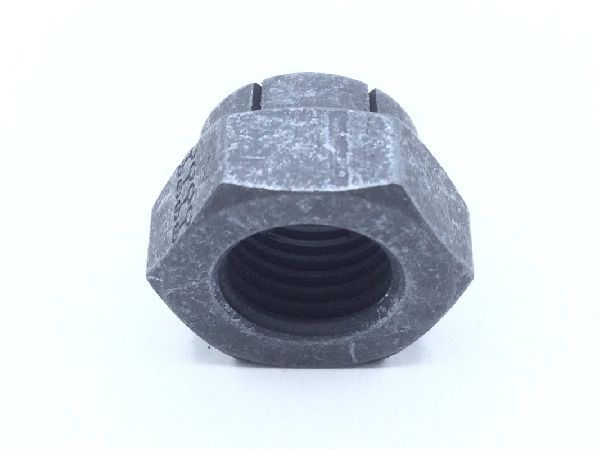

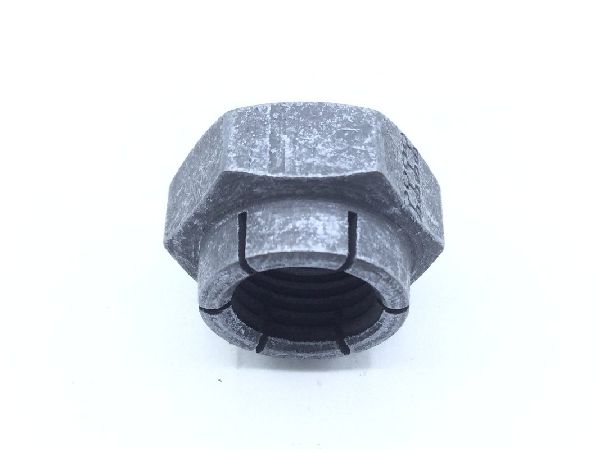

MS21045C7 Self-Locking Hexagon Nut

MS21045C7 Self-Locking Hexagon Nut (2)

MS21045C7 Self-Locking Hexagon Nut (3)

MS21045C7 Self-Locking Hexagon Nut (4)

MS21045C7 Self-Locking Hexagon Nut (5)

MS21045C7 Self-Locking Hexagon Nut (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS21045C7 Self-Locking Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0000

Price per Unit $51.21

Units per Pack 1

Price per Pack $51.21

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $51.21

Add item to quote

Material

Stainless Steel

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

3b

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.438 inches

Bearing Surface Finish: 125.0 microinches
Bearing Surface Type: Chamfered or washer faced
Countersink Angle: 88.0 degrees nut
Locking Feature: Prevailing torque all metal design
Nut Height: 0.435 mils and 0.469 centimeters
Nut Style: Hexagon
Tempurature Rating: 450.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 20
Width Across Flats: Between 0.679 inches and 0.690 inches
Lubrication: Dry film lubricant
