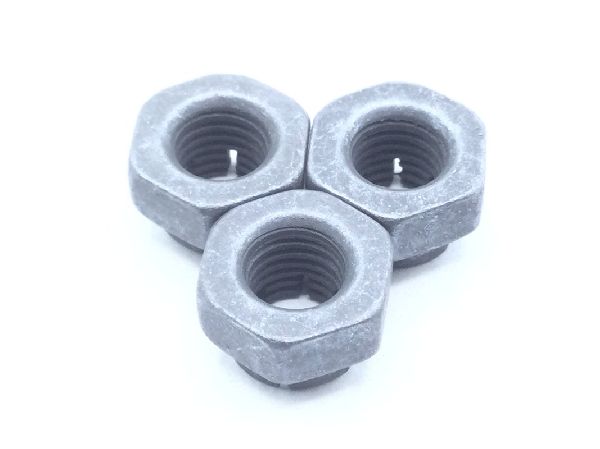

MS21045L4 Self-Locking Hexagon Nut

MS21045L4 Self-Locking Hexagon Nut (2)

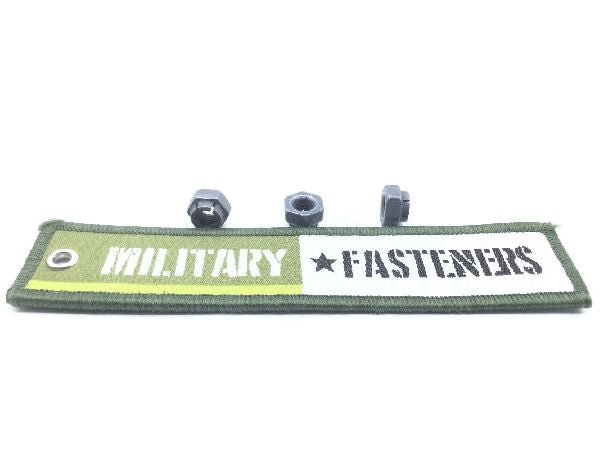

MS21045L4 Self-Locking Hexagon Nut (3)

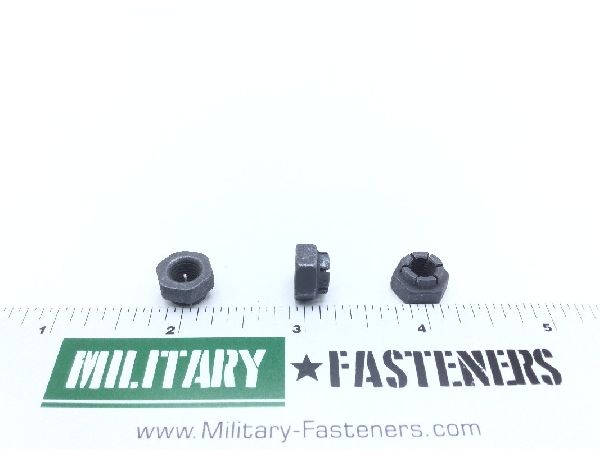

MS21045L4 Self-Locking Hexagon Nut (4)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS21045L4 Self-Locking Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Material

Steel

Surface Treatment

Qq-p-416 federal specification single treatment response

Thread Class

3b

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.250 inches

Bearing Surface Finish: 125 microinches
Bearing Surface Type: Chamfered
Countersink Angle: 88 degrees nut
Locking Feature: Prevailing torque all metal design
Nut Height: 0.240 mils and 0.328 centimeters
Nut Style: Hexagon
Tempurature Rating: 450 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 28
Width Across Flats: Between 0.430 inches and 0.439 inches
Lubrication: Dry film lubricant
