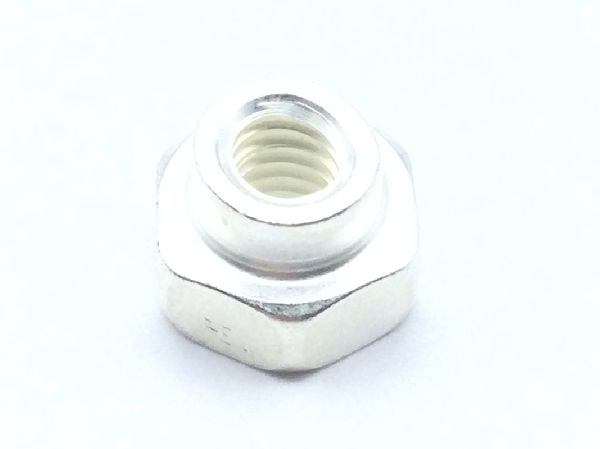

MS21046C08 Self-Locking Hexagon Nut

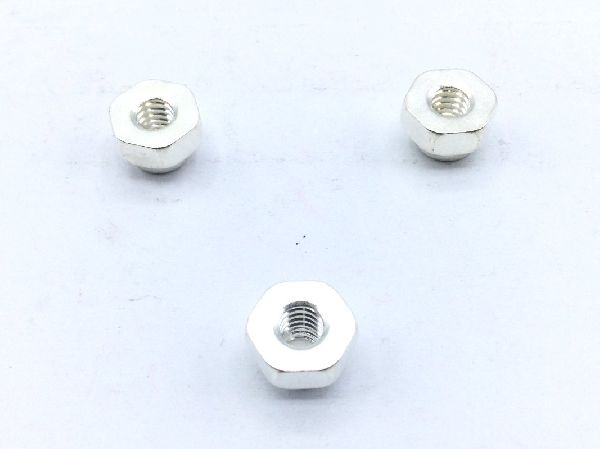

MS21046C08 Self-Locking Hexagon Nut (2)

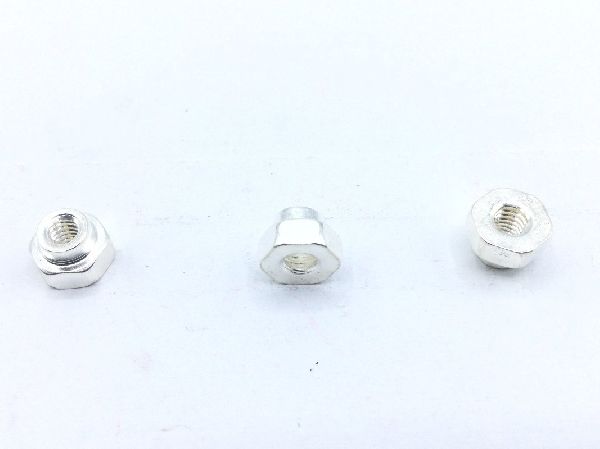

MS21046C08 Self-Locking Hexagon Nut (3)

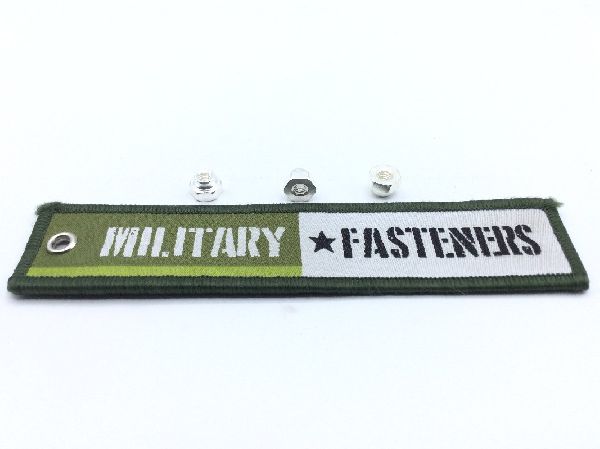

MS21046C08 Self-Locking Hexagon Nut (4)

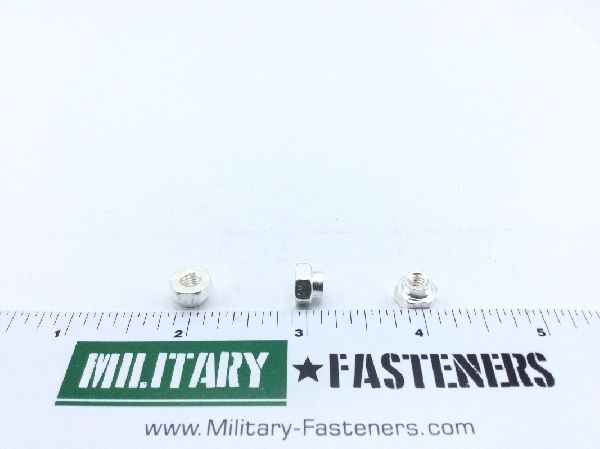

MS21046C08 Self-Locking Hexagon Nut (5)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS21046C08 Self-Locking Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Material

Stainless Steel

Thread Class

3b

Thread Series

Unc (coarse thread)

Thread Size

0.164 inches

Bearing Surface Type: Any acceptable
Locking Feature: Prevailing torque all metal design
Nut Height: Between 0.219 inches and 0.250 inches
Nut Style: Hexagon
Precious Material: Silver
Tempurature Rating: 800 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Width Across Flats: Between 0.336 inches and 0.345 inches
