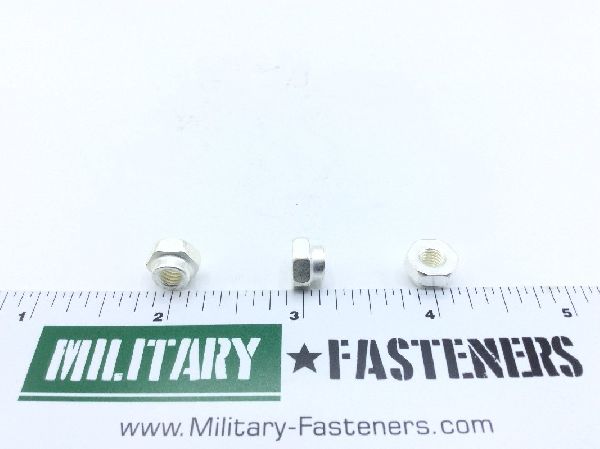

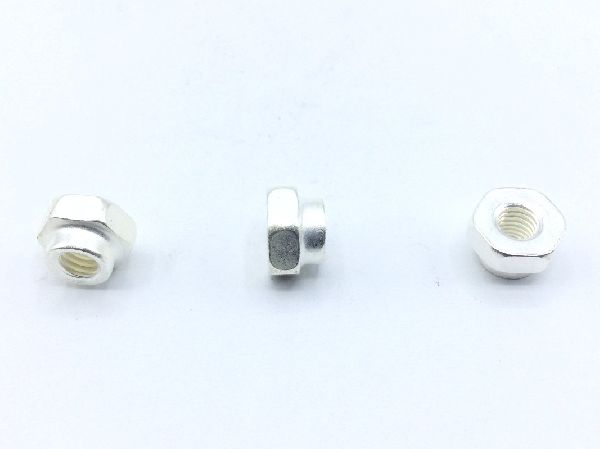

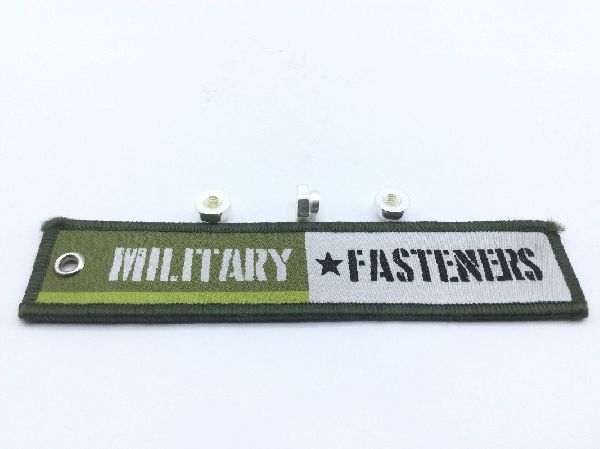

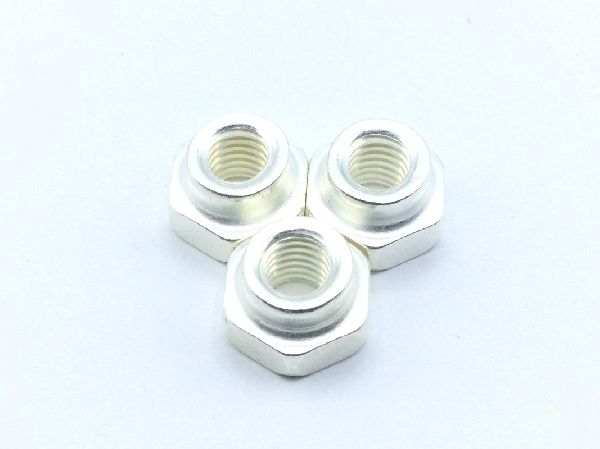

MS21046C3 Self-Locking Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0000

Price per Unit $2.10

Units per Pack 25

Price per Pack $52.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $52.50

Add item to quote

Material

Stainless Steel

Surface Treatment

Ams 2410 assn standard single treatment response

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.190 inches

Bearing Surface Finish: 125.0 microinches
Bearing Surface Type: Chamfered or washer faced
Countersink Angle: 88.0 degrees nut
Locking Feature: Prevailing torque all metal design
Nut Height: Between 0.208 inches and 0.250 inches
Nut Style: Hexagon
Precious Material: Silver
Precious Material And Location: Silver
Tempurature Rating: 800.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Width Across Flats: Between 0.367 inches and 0.376 inches
